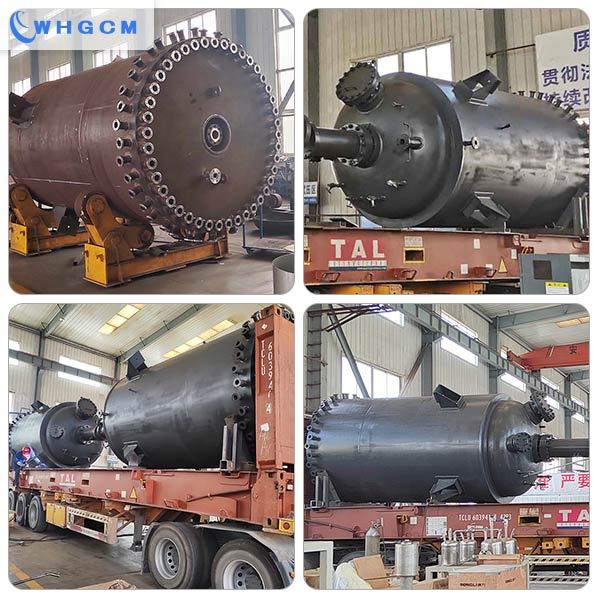

10000L stainless steel clad plate jacketed reactor with electric heating function

No.00416
This is a industry jacketed reactor made from stainless steel  clad plate. It is using thermal oil bathed electric heating bar as thermal resouce. The reactor is also customized as per our client's demands, please feel free to leave your info if you're interested in this kind of reactor.

Name kettle Jacket coil
full volume 11000
Working volume 10000
Design pressure（MPa） 3 atm /
Work pressure（MPa） 2.2 atm /
Design temperature（℃） 250 300 /
Work temperature（℃） 170 200 /
Click for Quotation
Description

Poster of the 10000L high pressure stainless reactor

Title of product introduction
Title of product structure

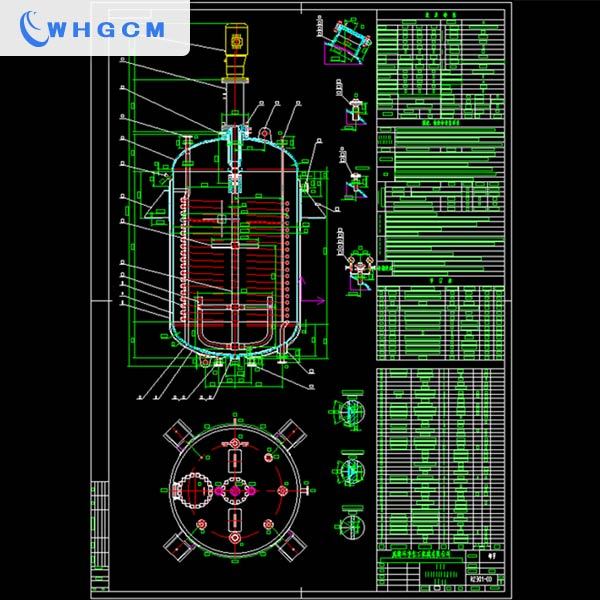

Picture of 10000L high pressure stainless reactor structure
Picture of Product Features subtitle
picture shows the reactors' structure
  • Structure features
  1. The reactor is designed to high pressure , high temperature requirement.
  2. The reactor kettle is heated by thermal oil bathed electric heating bars that are injected into the jacket.
  3. It is for ordinary corrosive resistance application, that using stainless steel S31603 as medium contacting material.
  4. For the economic purposes, the cylinder body and heads matel is stainless steel S31603 claddling with the carbon steel Q345R. It has higher strenth and lower cost than pure S31603 matel.
  5. Because of the explosive proof feature requirement of the medium, the reactor is using magnetic sealing shaft sleeve, safety valve, Pressure Transducer, and PT100 platinum to ensure security.
  • Stirrer type
  1.  Applying  toothed disk paddle for the agitator.The outer edge of the toothed disc agitator is serrated, and the shearing performance is very high under high speed rotation.
    It will offer strong dispersion, crushing, and peeling effect, that is suitable for  the dispersion and mixing of great two-phase difference physical properties, such as paint mixing dispersion process.
 drawing shows the shape of stirrer

Picture of the form shows all parameters of Industry reactors

Optional Accessories' picture
Picture of Manufacturing Capacity title

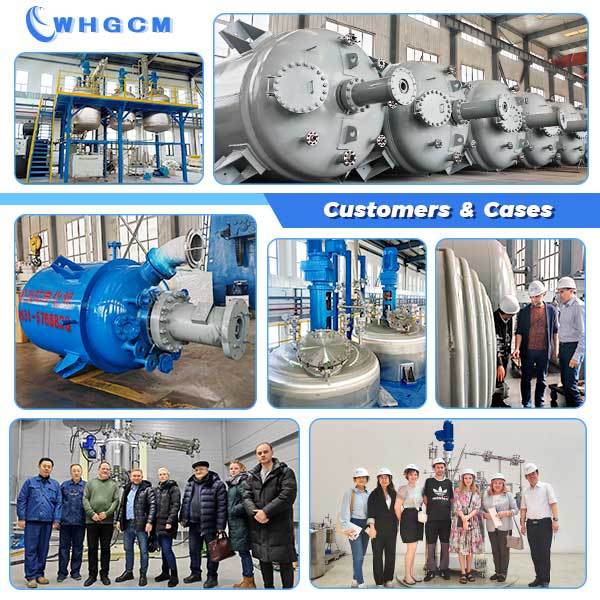

Picture shows the Customers and cases
Picture shows the testing and production Equipments

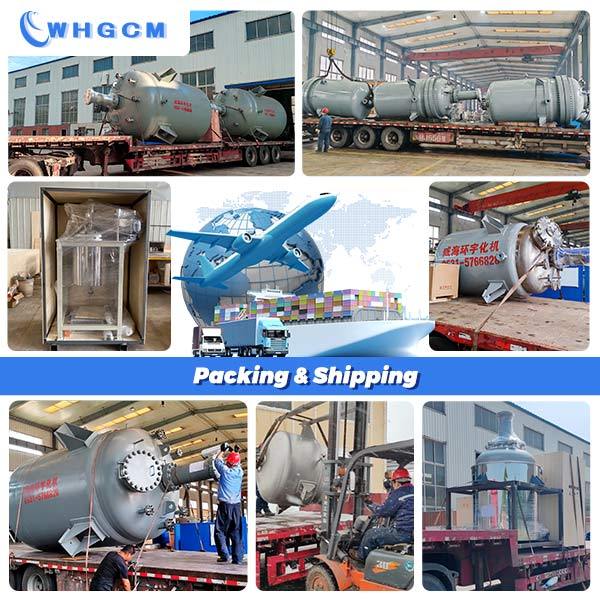

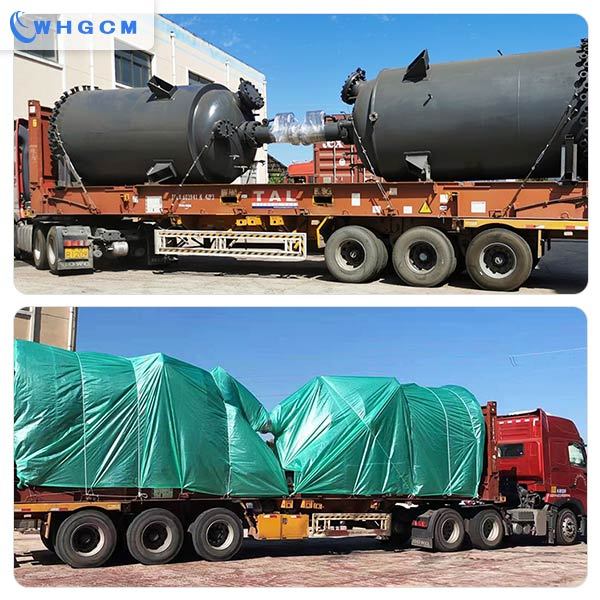

Picture shows the Packing & shipping site
