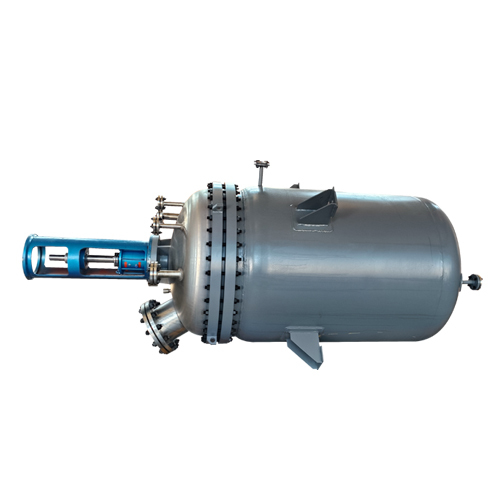

1000L reactor SS304 lined carbon steel Q345R open style with mechanical sealing

Name: 1000L reactor SS304 lined carbon steel Q345R open style with mechanical sealing
Brand: China high pressure reactor manufacturer
SKU: 00103
Availability: InStock
Rating: 5 (1 reviews)

No.00103

This is the open-style structure reactor we made for the client. It has an inner coil inside for temperature adjustment.

Click for Quotation

Description

Type	Structure Type	Design temperature	Stirring speed	Heating power	Discharging type	Mixing style	Contact material	Controller
FCH1000AOLW304BDW001	Open type(with manhole)	-10 °C~200°C	0~800	48	Bottom	Impeller	Stainless stell 304 + Mild steel Q345	PID
Volume	Design pressure	Motor	Motor power	Heating type	Mixer shaft	Seal type	Kettle lid open port	Other accessories
1000 L	Negative ~ 1.6 Mpa	AC motor	5.5	Jacket circulation with thermal oil	Self-lubricating wear-resistance sleeve made of stainless steel	Mechanical seal	Burst disc(safety valve ) port, etc.	n/a

Frequently Asked Questions

Our most frequently asked questions

1.Are you trading company or manufacturer?

We are professional various reactors customization manufacturer, with ASME CE EAC DOSH ISO Certificates.

2.Pre-Sale Stage

Provide Design Drawing by free and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
1). Working Volume
2). Max Working Temperature
3. Max Working Pressure
4. Reactor inner Contacting material:SS304, SS316L or others?
5.Reactants and property,Whether it is flammable and explosive?
6. With mixer/agitator or not
7.Others more details

3.Production Stage

Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, All Related Test Report, Approval Certificate.

4.After Sale Stage

Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
