1000L Magnetic Reactor
-Core technology: Static sealing, magnetic transmission -frequency conversion speed regulation -Explosion-proof type Heating type Jacket thermal oil external circulation heating Tank bottom

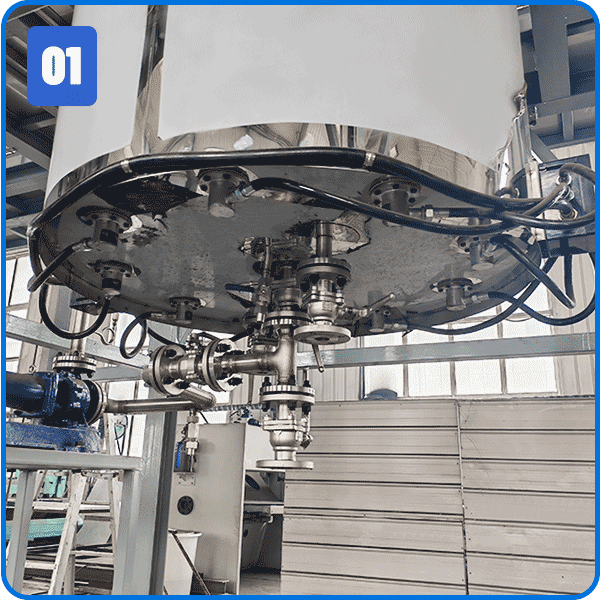

-Tank bottom with sampling port -Discharge port -Jacket thermal oil bath electric heaters -Jacket circulation inlet/outlet -Temperature measuring port The shape of bottom head could be customized. |

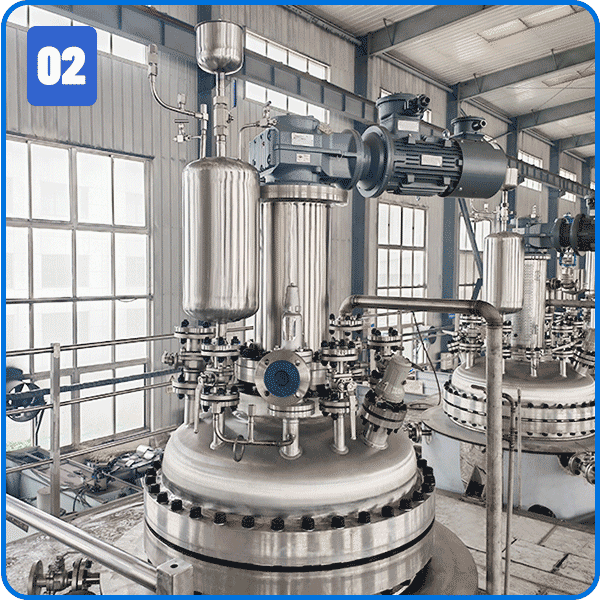

| 1000L Crystallisation Reactor Stirrer mechanism -Mechanical sealing stirrer -Safe and reliable -frequency conversion speed regulation -Explosion-proof type Tank cover nozzle ports -Material feeding port -Tank inner temp measuring ports -Pressure gauge/safety valve port -Jacket thermal oil electric heater ports Note: all nozzle ports & fitting type can be customized |
 |
 |

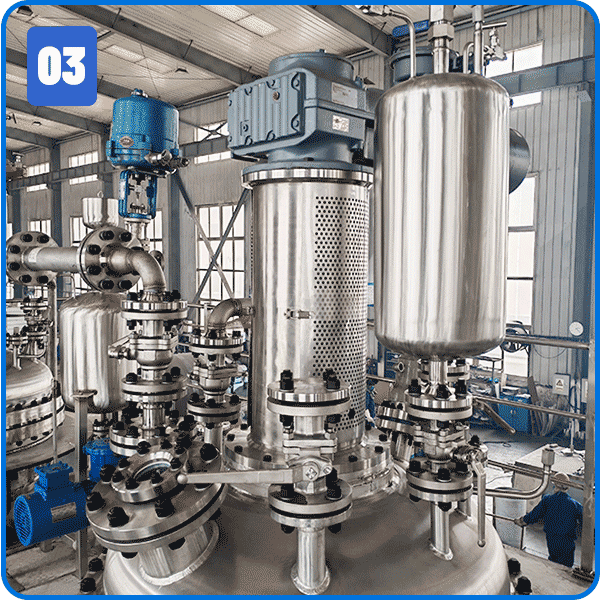

1000L Hydrolysis Reactor -Mechanical sealing stirrer -Core technology: Static sealing, magnetic transmission -frequency conversion speed regulation
-Explosion-proof type |
| No. | Parameters | Hydrolysis Reactor | Crystallisation Reactor | Magnetic reactor |
| 1 | Full volume（L） | 1400 | 1400 | 1400 |
| 2 | Work volume（L） | 1000 | 1000 | 1000 |
| 3 | Design pressure（MPa） | -0.1~0.2 | -0.1~0.2 | 2 |
| 4 | Work pressure（MPa） | 2~3kpa | 2~3kpa | 1.6 |
| 5 | Design temperature（℃） | 90 | 90 | 200 |
| 6 | Work temperature（℃） | 48~52 | 48~52 | 20~150 |
| 7 | Material | SS316L | SS316L | SS316L |
