00621
| No. | Parameters | Tank | Jacket | |
| 1 | Full volume（L） | 1000 | ||
| 2 | Work volume（L） | / | ||
| 3 | Design pressure（MPa） | -0.1~0.4 | 0.4 | |
| 4 | Work pressure（MPa） | -0.1~0.3 | 0.3 | |
| 5 | Design temperature（℃） | 150 | 150 | |
| 6 | Work temperature（℃） | 100 | 100 | |
| 7 | Material | TA1+Q345R | Q345R | |
| 8 | Stirring speed（r/min） | / | ||
| 9 | Motor power（KW） | / | ||
 |

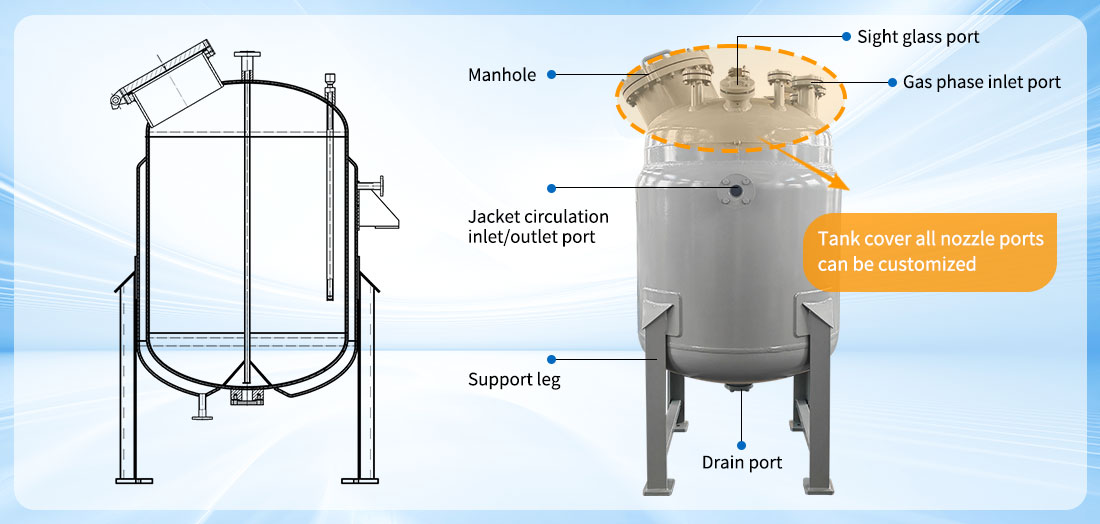

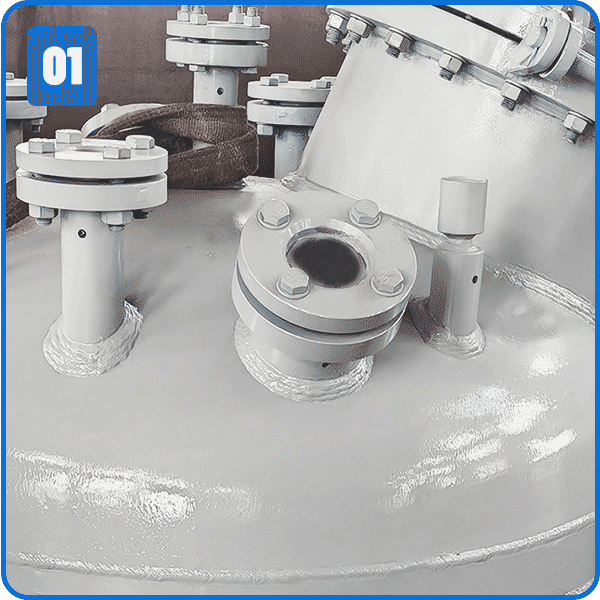

Tank cover nozzle ports
-Gas inlet port -vent ports -Liquid inlet port -Tank inner temp measuring ports -Jacket thermal oil circulation inlet/outlet Note: all nozzle ports & fitting type can be customized |

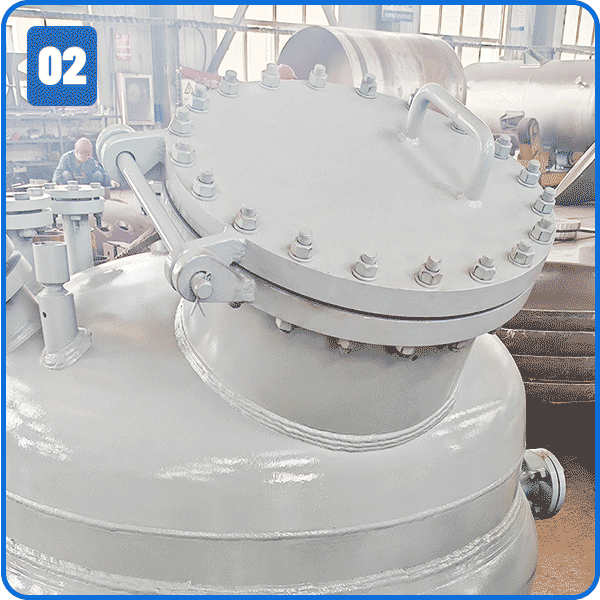

| Manhole port -Regular inspection and maintenance entrance -Safe, convenient and reliable The lid of manhole has two handles, which could be customized as per your request. |
 |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
