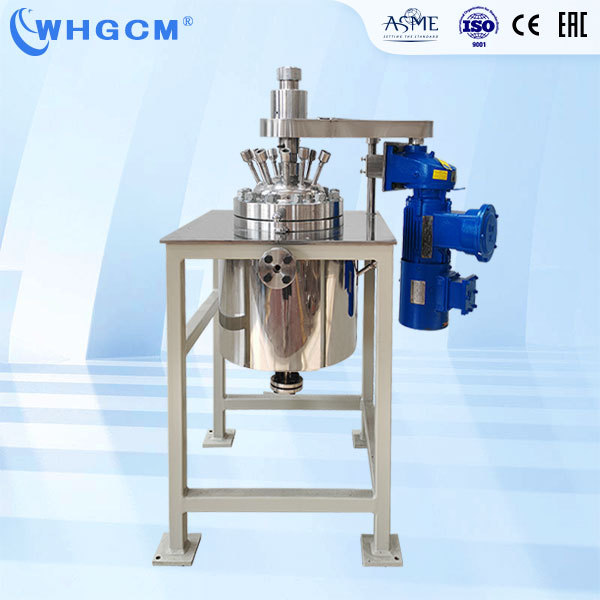

| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 12 | ||
| 2 | Work volume（L） | 10 | ||
| 3 | Design pressure（MPa） | -0.1/5.0 | ||
| 4 | Work pressure（MPa） | -0.1/3.5 | ||
| 5 | Design temperature（℃） | 150 | ||
| 6 | Work temperature（℃） | 95 | ||
| 7 | Material | SS316L | ||
| 8 | Stirring speed | 0-300 | ||
| 9 | Motor power (W) | 550W | ||
 |

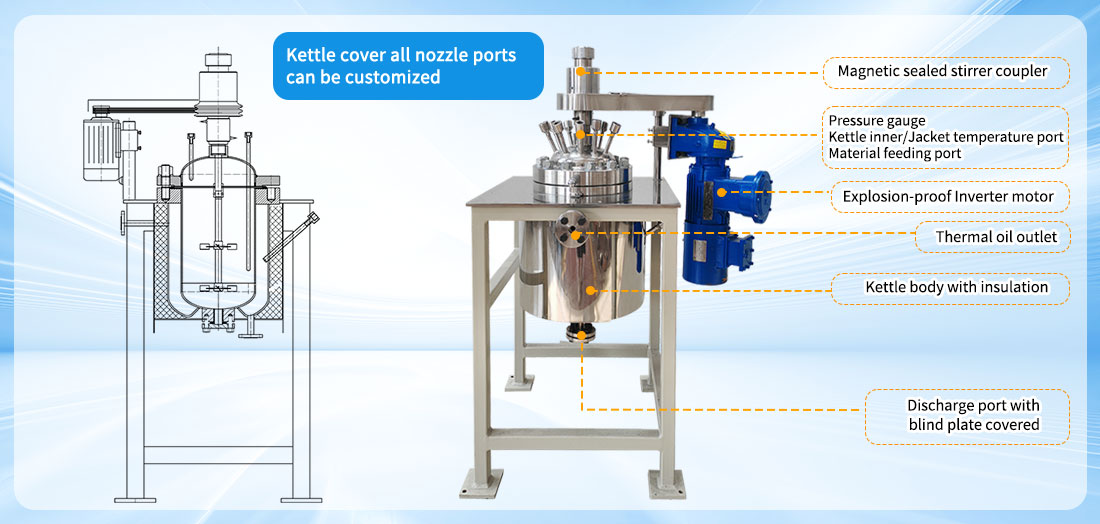

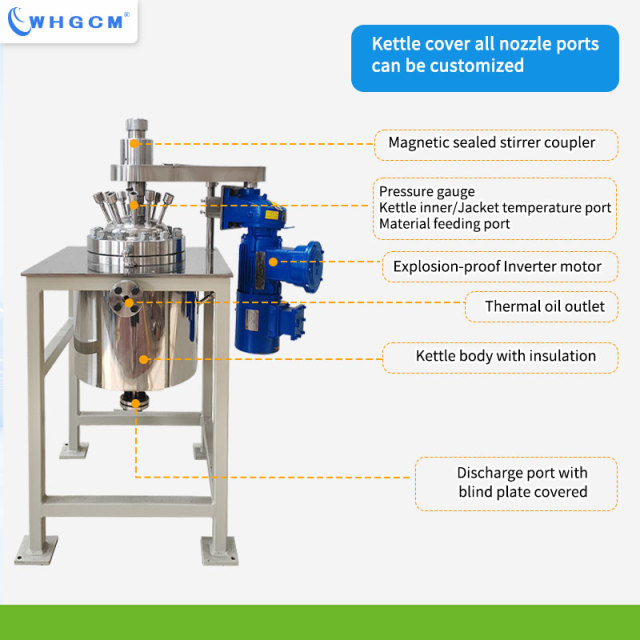

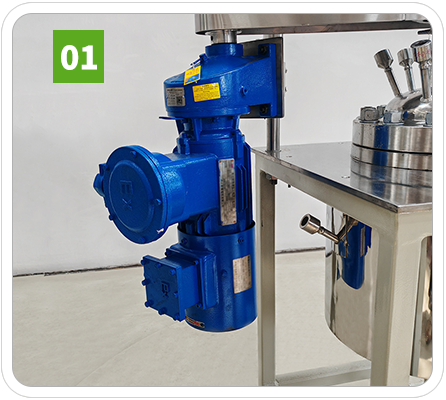

Explosion proof inverter motor -It is side mounted, the shaft of coupler is driven via a belt of the motor.
-It has exproof structure, so it won't cause any electric sparks while using.
-The side-mounted motor reduces the center of gravity of the reactor on the one hand and improves the stability of the reactor.
|

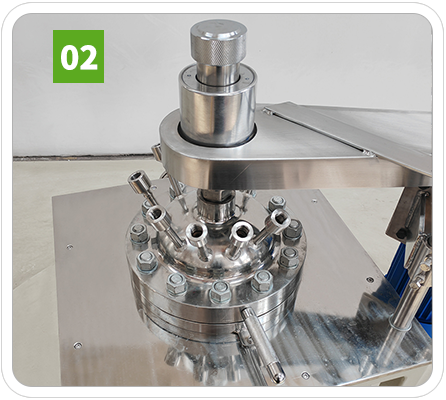

Magnetic sealed stirrer coupler
-Core technology: Static sealed,magnetic transmission
-100% ZERO leakage -Coupler inner with cooling system, avoid coupler inner overheating |
 |
 |

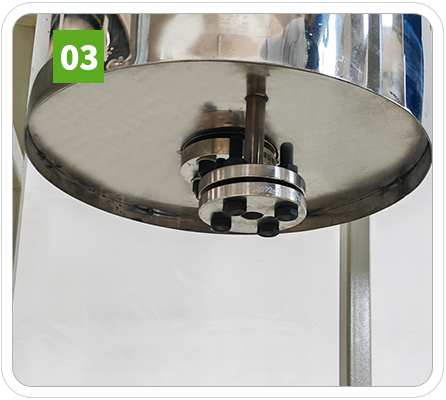

Kettle bottom
-Discharge port with blind plate covered -Thermal oil inlet
Heating type
-Jacket external circulation heating.
|
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25-50 |
| Working pressure |
Negative pressure -0.1~40 MPa
|
Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa |
| Working temperature | 0-1500℃ | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power (KW) | 0.8~1 | 1-3 | 3-6 | 4-9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Charging type | Charging from above, discharging from below or above. | |||
| Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal. | |||
| Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy,etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. |
|||
| Controller Device |
Equipped with automatic or programmed PlD or PLC to achieve:
Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control;
Flow display and control; Valve open/close control, etc.
|
|||
