| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 1 | ||
| 3 | Design pressure（MPa） | 12 | ||
| 4 | Work pressure（MPa） | 10 | ||
| 5 | Design temperature（℃） | 350 | ||
| 6 | Work temperature（℃） | 300 | ||
| 7 | Material | SS304 | ||
| 8 | Stirring speed | 0~1000 | ||
| 9 | Motor power (W) | 125 | ||
 |

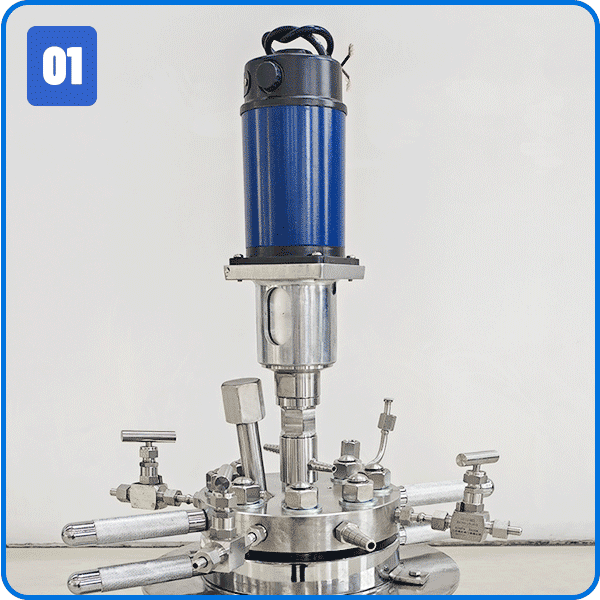

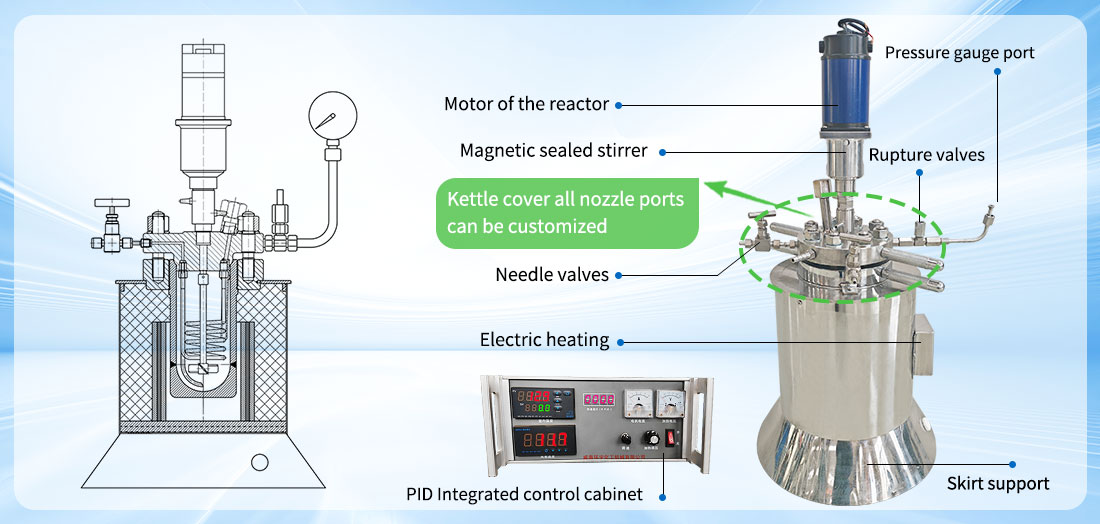

Magnetic sealing coupler-Core technology Static seal, magnetic transmission. |

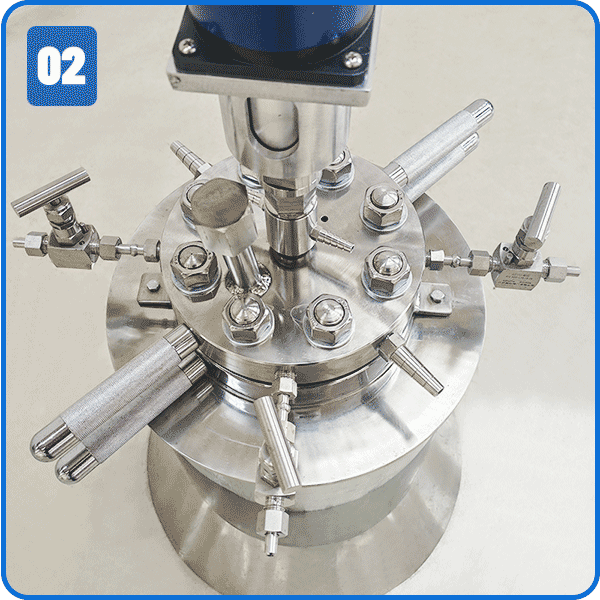

| Kettle cover nozzle ports -all nozzle ports are customized as the user's requirements -Solid/Liquid/Gas phase materials feeding ports -Tank inner/jacket temperature/discharge port measuring ports etc. -Side liquid outlet port Note: all nozzle ports & fitting type can be customized |
 |
 |

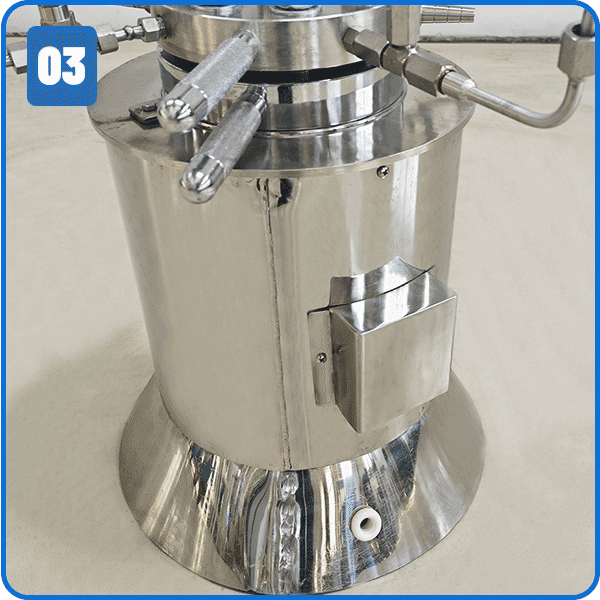

Reactor body The material of kettle's internal surface is stainless steel SS304. The electric heater is wounded outside the external wall of the vessel. The electric heater is a widely used heating methord for lab reactors. The insulation is apply to pretect the operator from burning, because the temperature is upto 350°C. |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
