| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 20000 | ||
| 2 | Work volume（L） | / | ||
| 3 | Design pressure（MPa） | 3 | 0.6 | |
| 4 | Work pressure（MPa） | 2.5 | 0.5 | |
| 5 | Design temperature（℃） | 150 | 150 | |
| 6 | Work temperature（℃） | 100 | 100 | |
| 7 | Material | S30408+Q345R | Q345R | |
 |

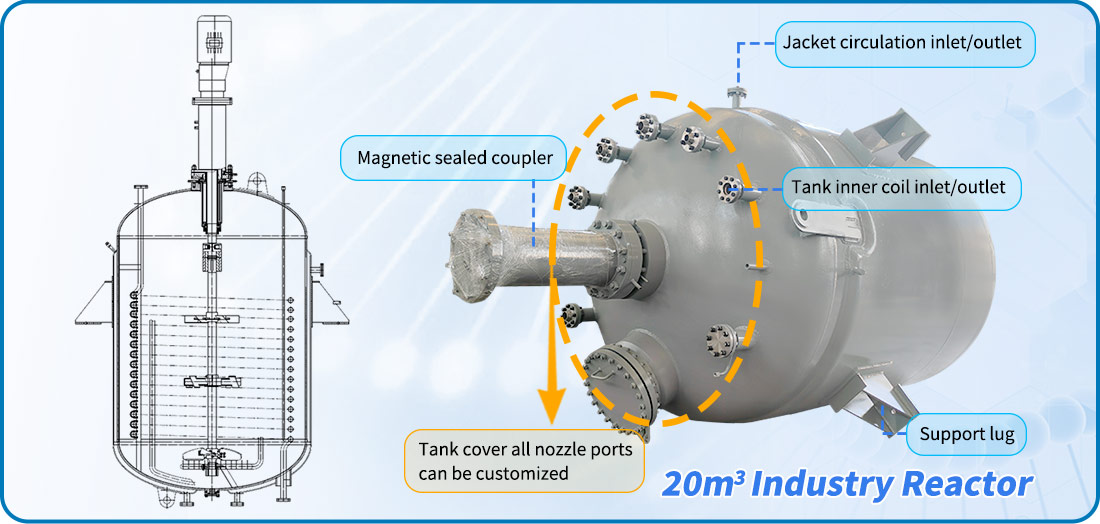

Parts for the pressure condition: The reaction is taken place under the pressure of 25 times of atmospheric pressure, so the design pressure is set at 3 MPa. In order to ensure the reactor performance at such a high pressure, necessary parts and techniques are required and applied. Body structure: The reactor body is close style, which could ensure the pressure resistance with low material cost. Material:
The nozzles of ports are welded with flanges that could withstand the high pressure. Magnetic coupler: The agitator is using magnetic coupler, which has good sealing and high strength for the pressure reaction. |
| Parts for the temperature adjusting: Heating component：
|
 |
 |
Parts for the hydrogen gas:
Please feel free to pressure the "Get Quote" bottom to contact us if you're interested or has any question. |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
