00621
| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 2300 | ||
| 2 | Work volume（L） | 2000 | ||
| 3 | Design pressure（MPa） | -0.1~0.8 | 1.2 | |
| 4 | Work pressure（MPa） | -0.1~0.6 | 1 | |
| 5 | Design temperature（℃） | -20~250 | -20~250 | |
| 6 | Work temperature（℃） | -19~200 | -19~200 | |
| 7 | Material | SS316L+Q345R | Q345R | |
 |

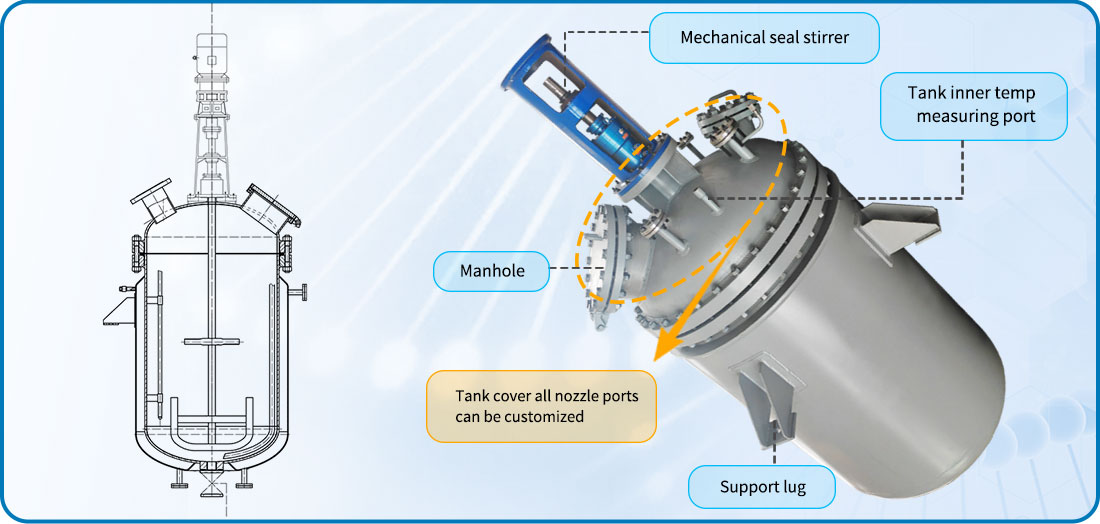

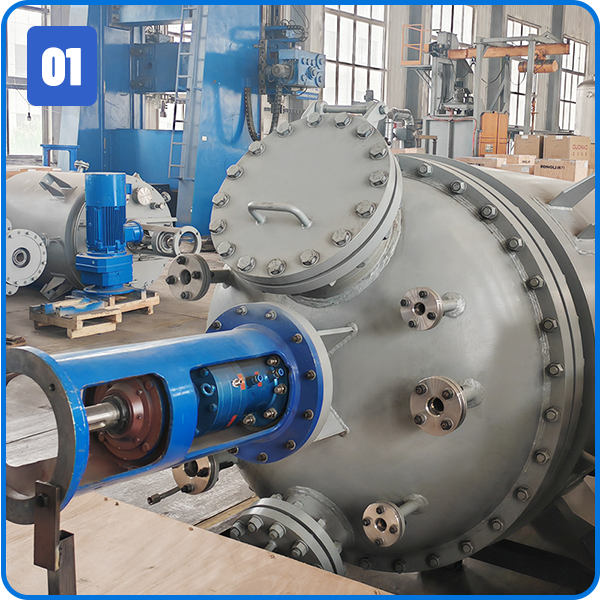

Stirrer mechanism -Double ended mechanical sealing type -Core technology: Static sealing, magnetic transmission -frequency conversion speed regulation Kettle cover nozzle ports -all nozzle ports are customized as the user's requirements -Solid/Liquid/Gas phase materials feeding ports -Tank inner/jacket temperature/discharge port measuring ports etc. -Side liquid outlet port Note: all nozzle ports & fitting type can be customized |

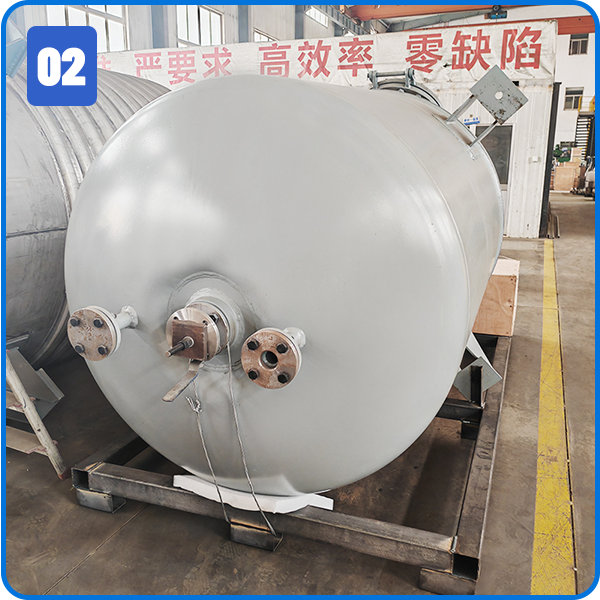

| Tank bottom -Jacket circulation inlet/outlet port -Jacket drain port Jacket The jacket has inlet and outlet port, which are for the heating agent flowing. There is also a drain port on the reactor, it would release the thermal agent for its overflow. |
 |
 |

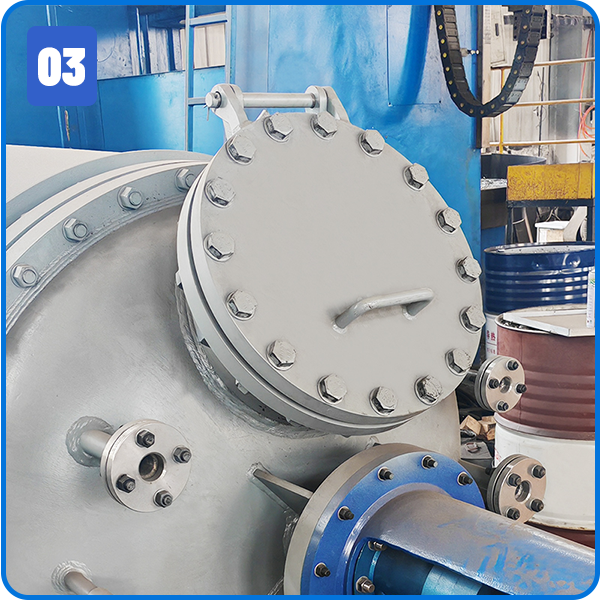

Manhole -Regular inspection and maintenance entrance -Safe, convenient and reliable The lid of manhole has one handle, which could be customized as per your request. |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
