| No. | Parameters | Tank | ||
| 1 | Full volume（L） | 2890 | ||
| 2 | Work volume（L） | 2500 | ||
| 3 | Design pressure（MPa） | -0.1 | ||
| 4 | Work pressure（MPa） | -0.1 | ||
| 5 | Design temperature（℃） | 500 | ||
| 6 | Work temperature（℃） | 430 | ||
| 7 | Material | S31608 | ||
| 8 | Stirring speed（r/min） | 0~80 | ||
| 9 | Motor power（KW） | 22kw（dⅡBT4） | ||
 |
 |

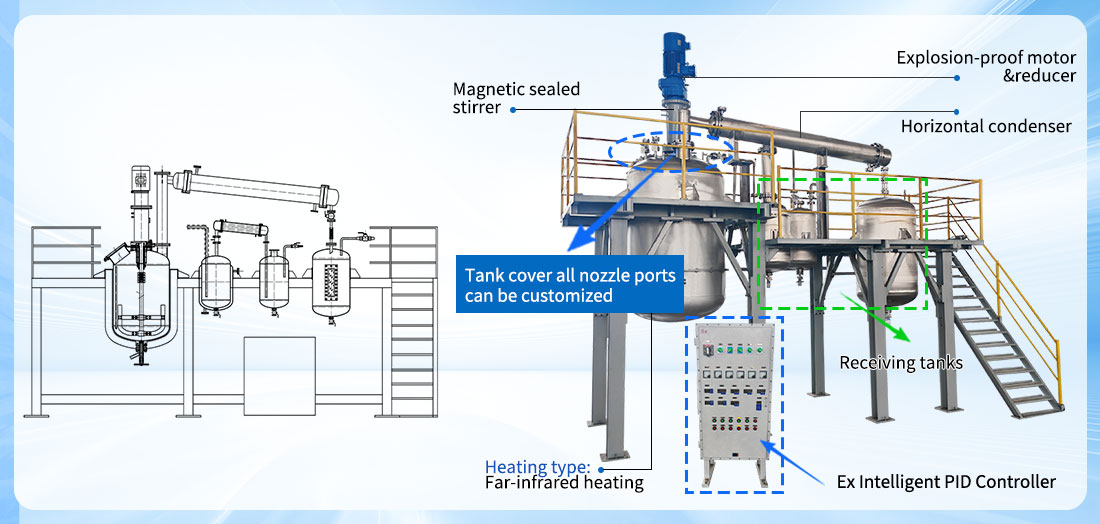

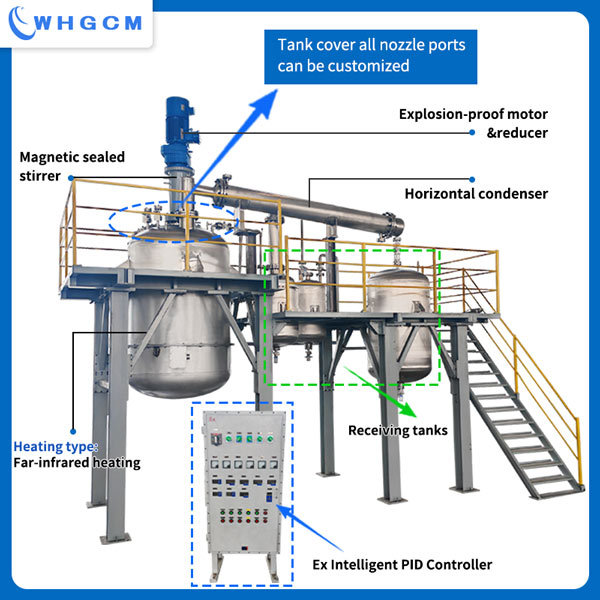

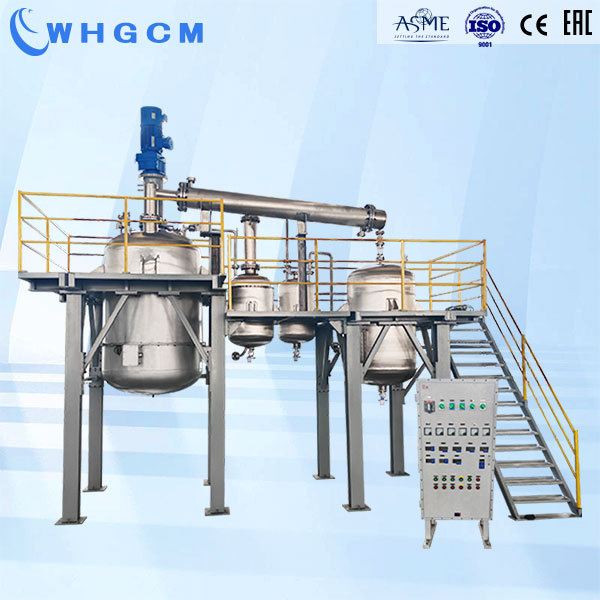

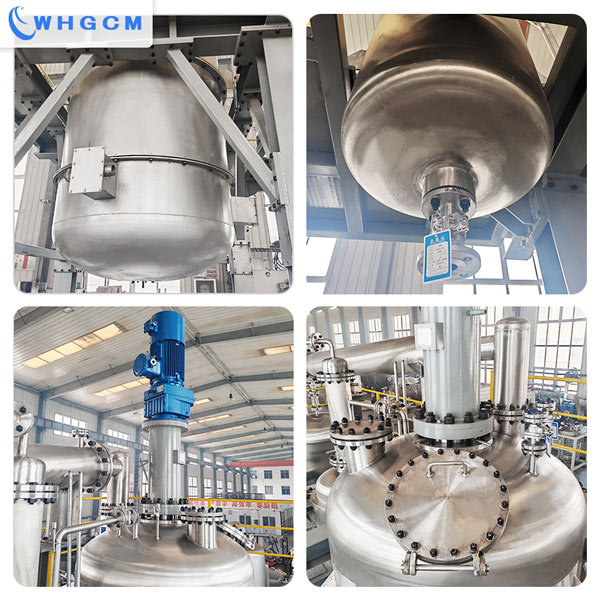

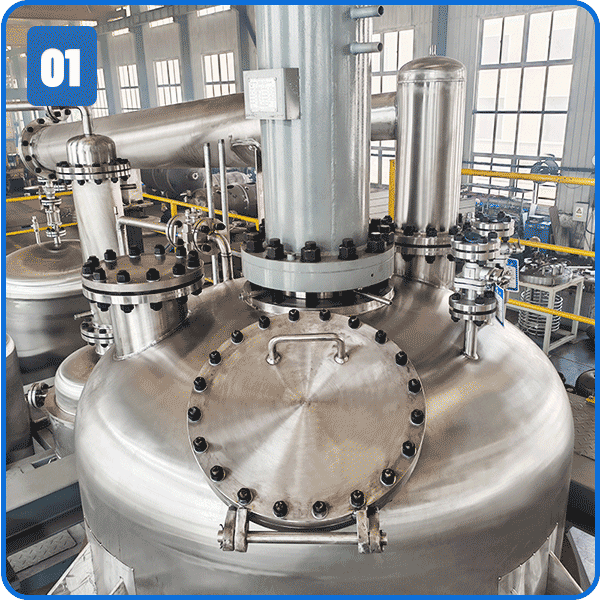

| 1, The reactor system is well designed as per customer's request, with simple structure and beatiful look. 2, The ports of the reactor are well organized and is highly sealed with flanges. 3, Most of the material of this reactor is stainless steel S31608, can meet the corrosion resistence of the application. |

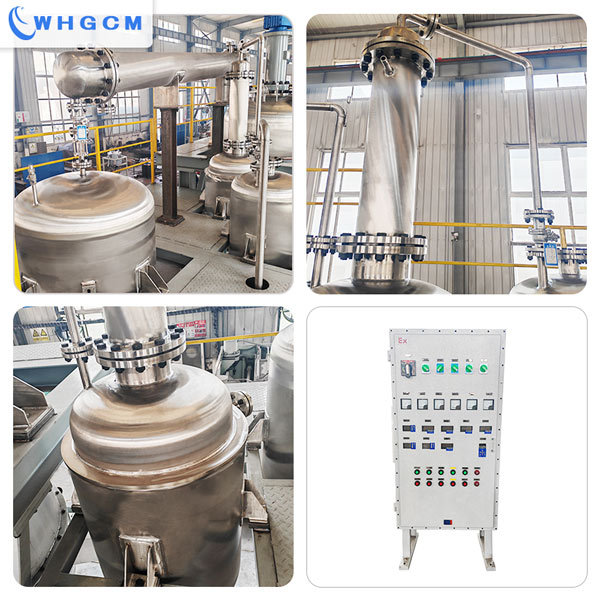

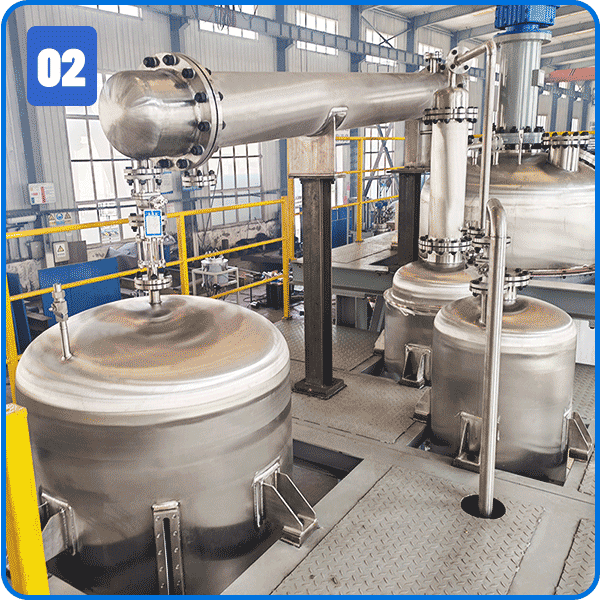

Condenser device -Collection tanks with sight glass -Condenser device and the parts that to contact with medium are made from SS316L,parts not in contact with the material are made of SS304. |
 |
 |
|

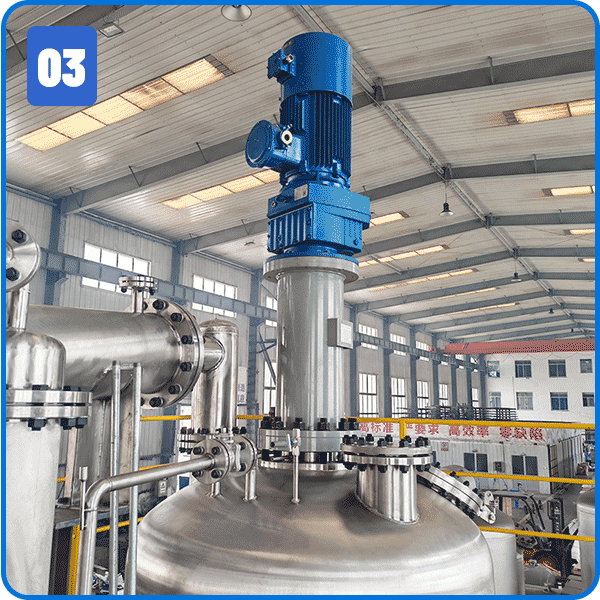

Magnetic sealed stirrer
-Explosion-proof stirrer motor with grade dIIBT4
-Magnetic sealing stirrer
-Static seal with magnetic transmission
-All nozzle ports can be customized.
|

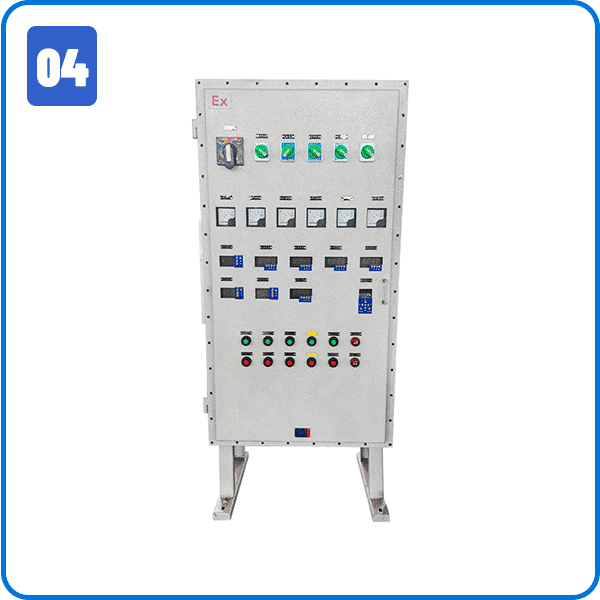

Intelligent PID Controller： Because the medium is flammable, so the shell of carbinet has Ex-proof feature. The controller could display the stirring speed, temperature , pressure, and vacuum. The bottons of the monitoring parameters are customizable, and you could also use our suggested bottons. The other functions can be customized too. |
