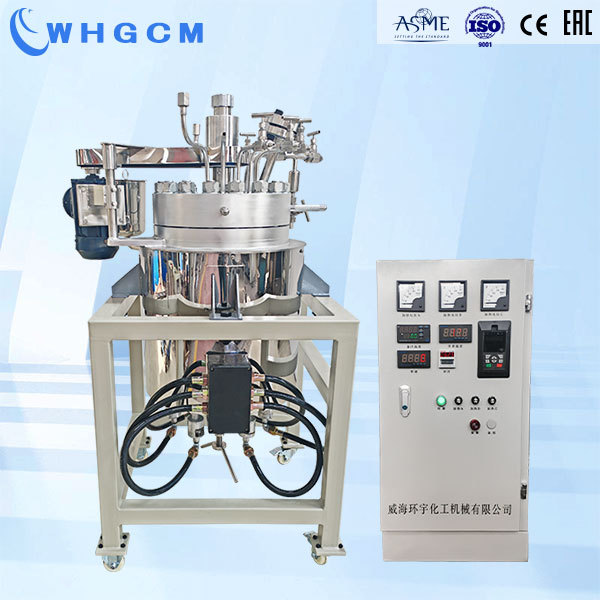

| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 29.5 | ||
| 3 | Design pressure（MPa） | 10 | ||
| 4 | Work pressure（MPa） | 8 | ||
| 5 | Design temperature（℃） | 250 | ||
| 6 | Work temperature（℃） | 220 | ||
| 7 | Material | SS316L | ||
| 8 | Stirring speed | 0~800 | ||
| 9 | Motor power (W) | 750（dⅡCT4） | ||
 |

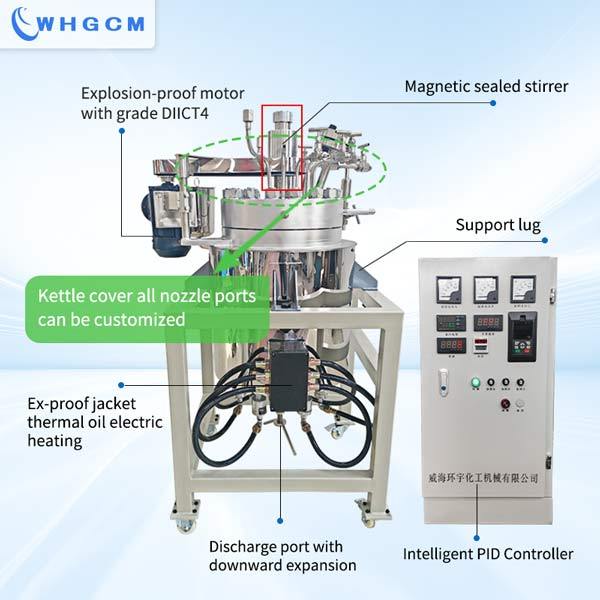

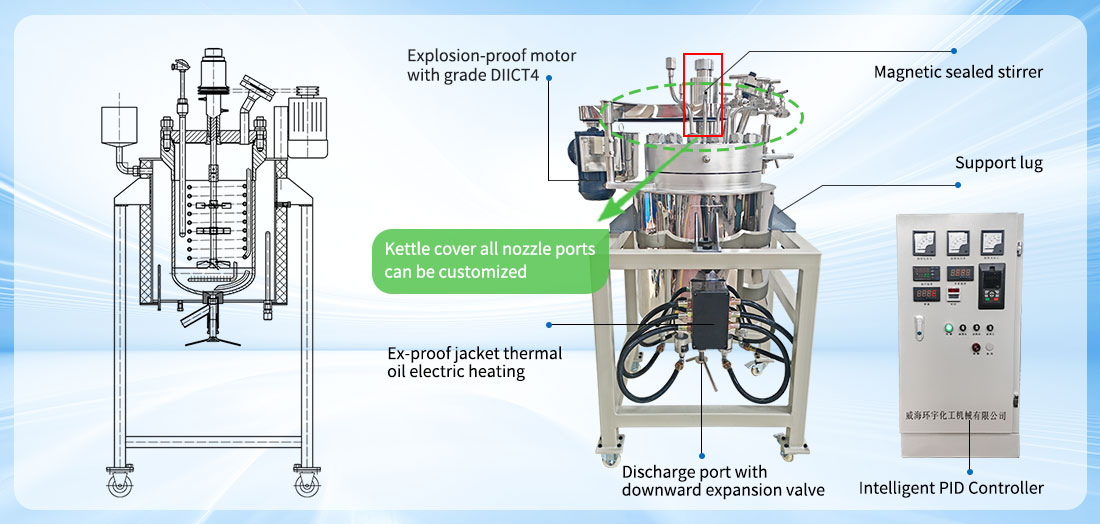

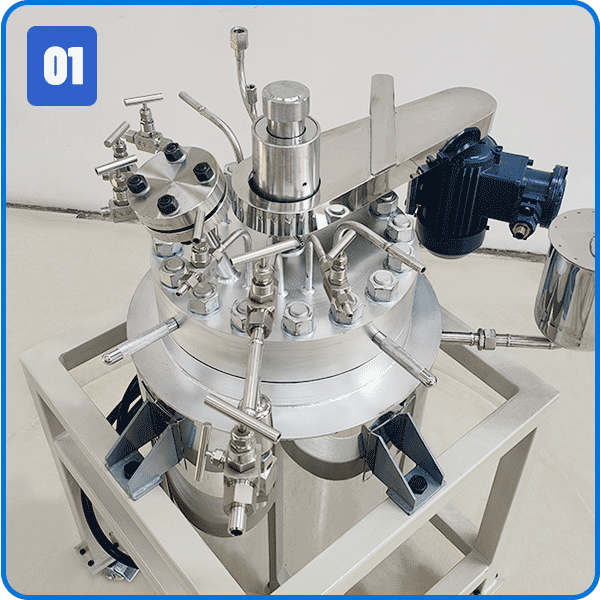

Kettle cover nozzle ports -all nozzle ports are customized as the user's requirements -Solid/Liquid/Gas phase materials feeding ports -Tank inner/jacket temperature/discharge port measuring ports etc. -Side liquid outlet port Note: all nozzle ports & fitting type can be customized Magnetic sealed stirrer coupler -Core technology: Static sealed,magnetic transmission -100% ZERO leakage |

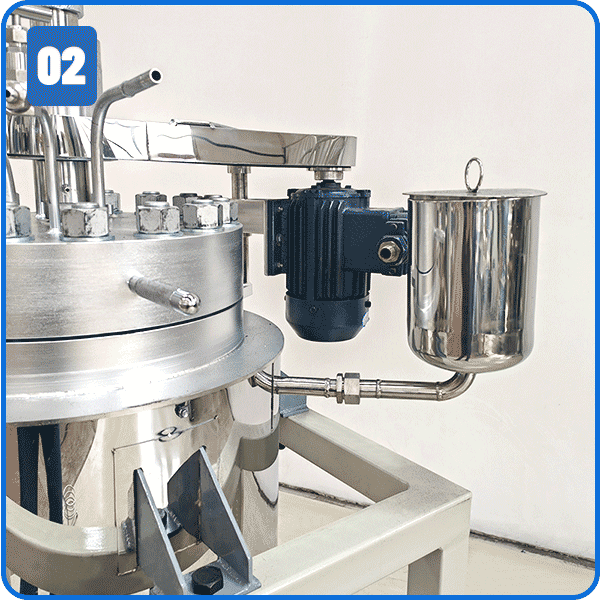

| Motor Powerful motor is assembled to ensure high stirring speed. It is side mounted, the shaft of coupler is driven via a belt of the motor. It has Explosion-proof stirrer motor with grade DIICT4, so it won't cause any electric sparks while using. |
 |
 |

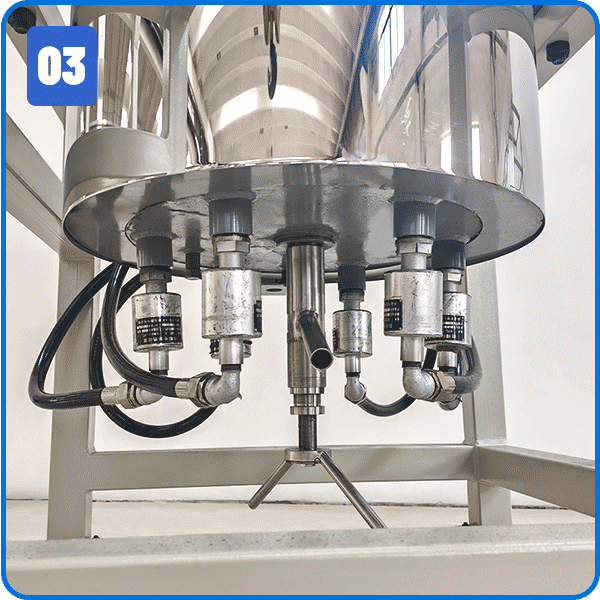

Heating/cooling type -Heating: Jacket thermal oil external circulation heating -Cooling: Inner coil through circulating cooling water Insulation jacket It is used to prevent the heat from releasing, then to save the energy and protect the operator from heat harzard. Heating bars There are 6pcs electric heating bars with their heating rods plug inside the jacket.The heating bars are injected via the ports opened under the bottom of the jacket. The elctric heating is fast and easy to operate than other kinds of heating methord. |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
