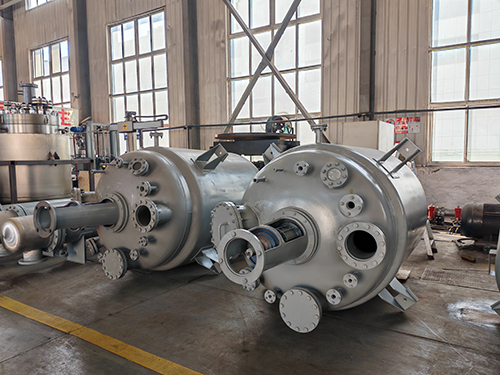

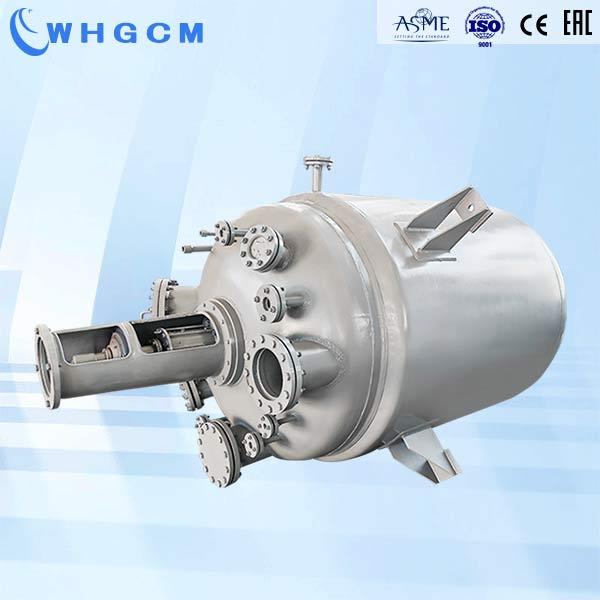

| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 3300 | ||
| 2 | Work volume（L） | 000 | ||
| 3 | Design pressure（MPa） | -0.1 | 0.4 | |
| 4 | Work pressure（MPa） | -0.1 | 0.3 | |
| 5 | Design temperature（℃） | 350 | 350 | |
| 6 | Work temperature（℃） | 300 | 300 | |
| 7 | Material | C-276+Q345R | Q345R | |
 |
Configuration instructions: 1, Frequency converter. 2, Mechanical seal, with explosion-proof motor, reducer. (Explosion-proof grade dIIBT4) 3, Valves and gauges Equiped with kettle cover ports required Hastelloy diaphragm negative pressure gauge, sight glass, explosion-proof PT100, feed port and discharge port with blind plate. 4、Material: Cylinder head is C-276+Q345R composite material. The other materials in contact with materials in kettle are Hastelloy C-276. Flanges is made from stainless steel S31603. Specification: Stirring paddle form four oblique blade open turbine + four oblique blade open turbine Shaft seal form Double end mechanical seal Stirring speed 0~275 Motor power 11KW Heating method Jacket external circulation heating thermal oil |

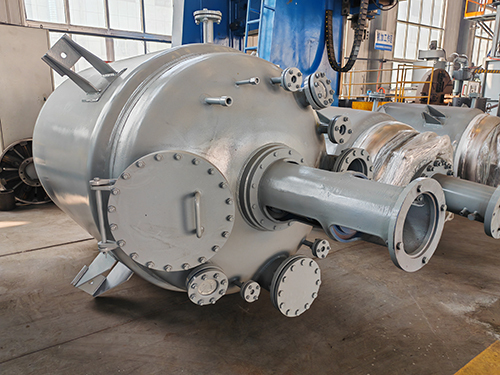

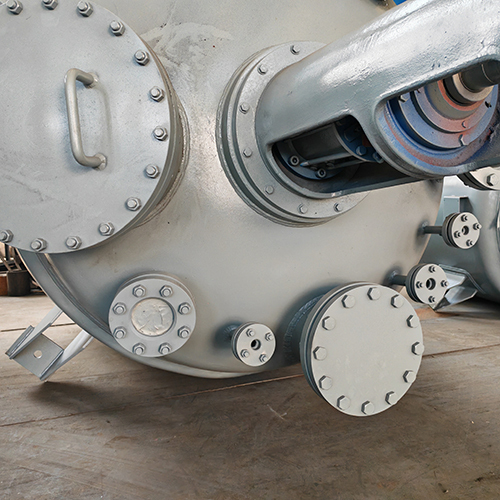

| High resistant to corrosive madium The inner material of the reactor cylinder is Hastelloy C276, which can withstand high temperatures and high corrosive conditions. High sealing flanges The RF facing flanges are used for good sealing performance. High temperature application The kettle's cylinder is made from Hastelloy and carbon steel cladding plate. The carbon steel's thickness is chosen as per the design temperature at 350 C under -0.1Mpa conditions. |
 |
 |

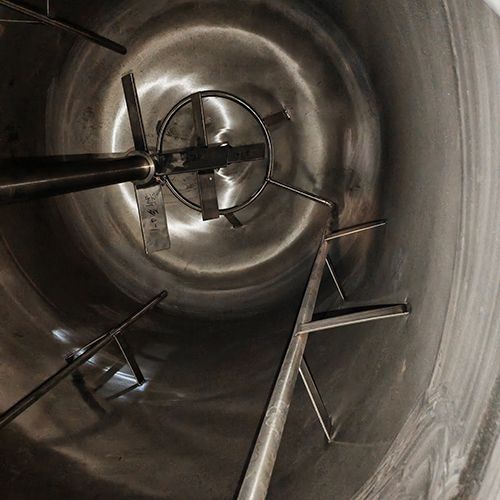

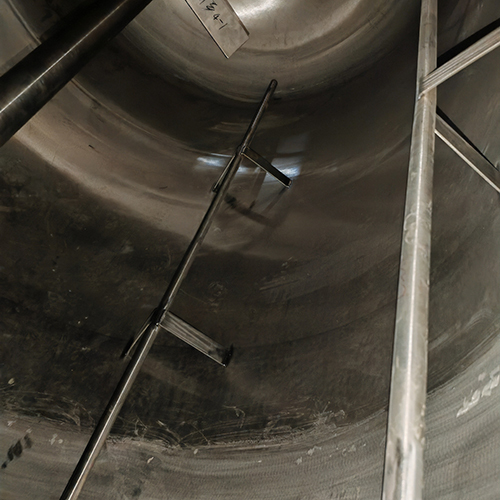

Well polished inner face of the cylinder The inner surface is mirror finished to meet the high sanitary requirement. Strong stirrer shaft The diameter of the shaft is bigger than ordinary size, so it could withstand high torque caused by the strirring. Reasonable temperature adjust parts It is using an inner coil and jacket, so it is available for fast heating and cooling. Parts for gas inlet A gas distributor is installed inside the kettle, improving the gas-liquid phase reaction within the reactor. |

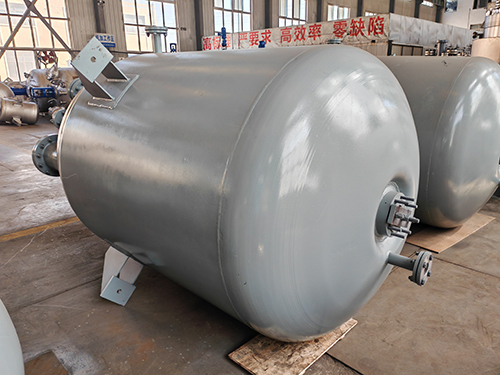

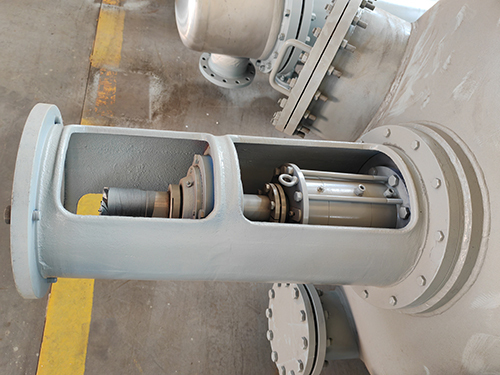

| Double end mechanical sealing shaft sleeve The double end mechanical sealing coupler is applied for a good sealing and cost saving purposes. Jacketed structure This reactor is using thermal conductive oil as the heating medium. The oil is heated upto 350 C in the external heating tank, then injected into the jacket. The heat will be transported to reactor's cylinder wall, then heating the medium inside the kettle. |
 |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
