| No. | Parameters | Tank | Jacket | |
| 1 | Full volume（L） | 3800 | ||
| 2 | Work volume（L） | 3000 | ||
| 3 | Design pressure（MPa） | 3.7 | 1.2 | |
| 4 | Work pressure（MPa） | 2 | 1 | |
| 5 | Design temperature（℃） | 150 | 150 | |
| 6 | Work temperature（℃） | 100 | 100 | |
| 7 | Material | S31603+Q345R | Q345R | |
| 8 | Stirring speed（r/min） | 0~300 | ||
| 9 | Motor power（KW） | 18.5KW（dIICT4） | ||
 |

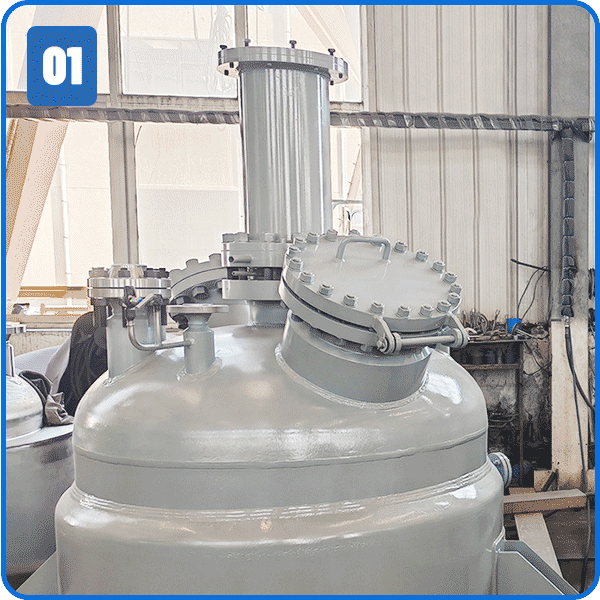

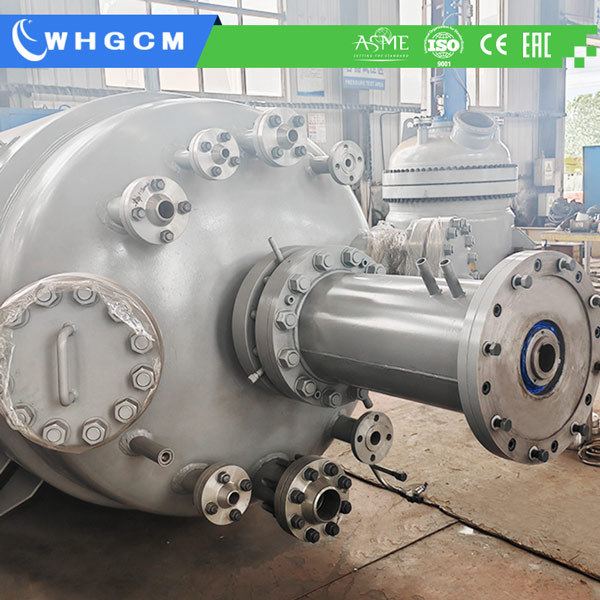

Stirrer mechanism -Magnetic sealing stirrer -Core technology: Static sealing, magnetic transmission -Stirrer coupler with inner cooling system inlet/outlet -frequency conversion speed regulation |

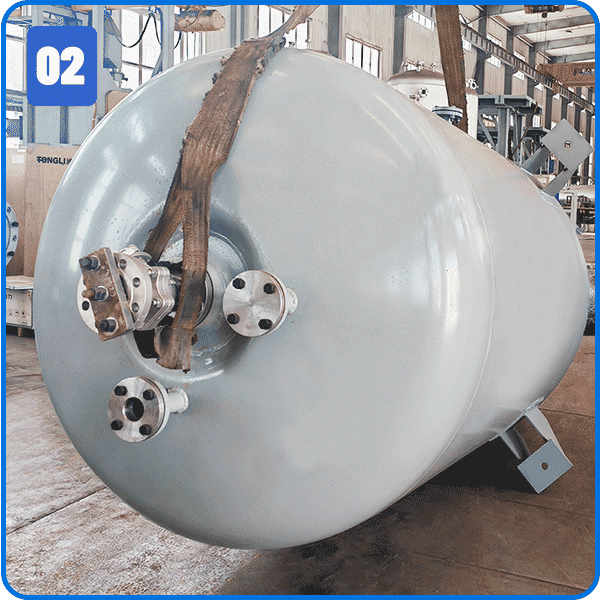

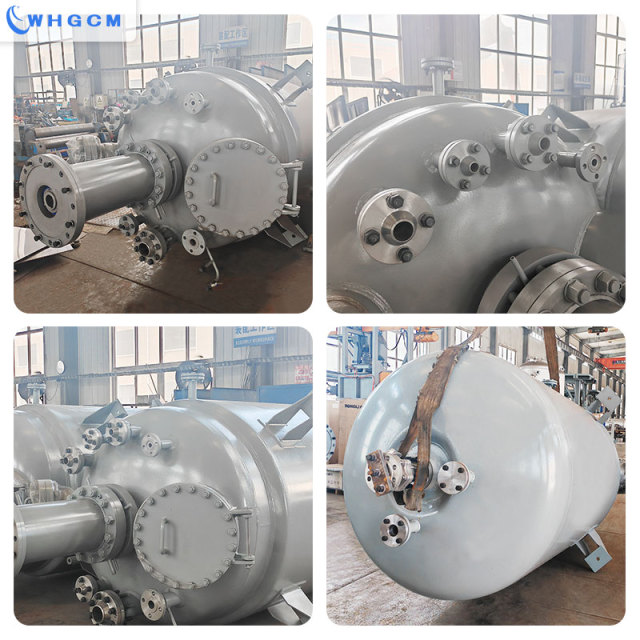

| Tank bottom -Jacket circulation inlet/outlet port -Jacket drain port -Discharge port with ball valve The shape of bottom head could be customized. |
 |
 |

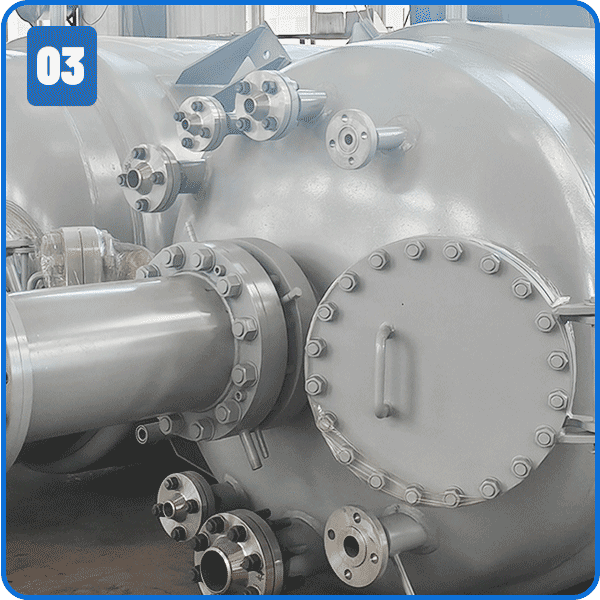

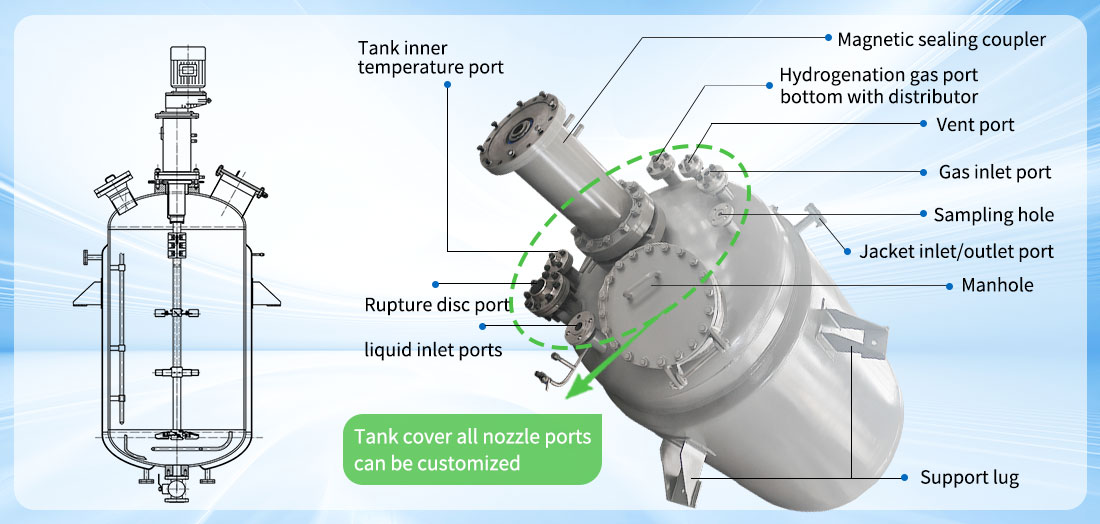

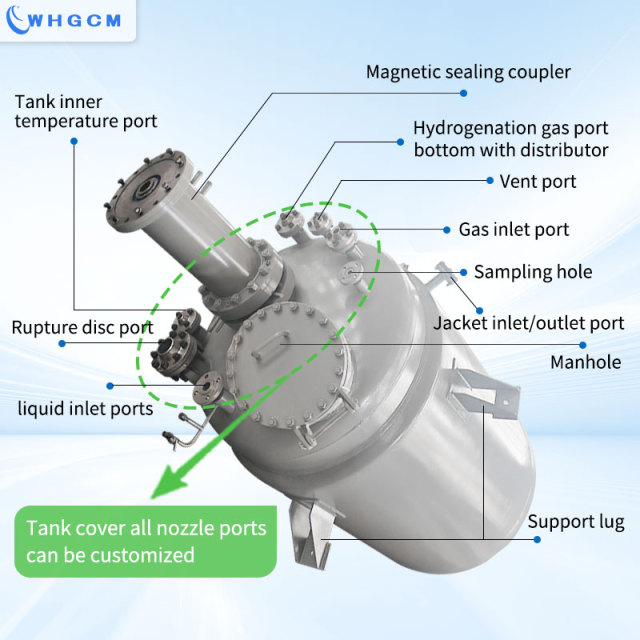

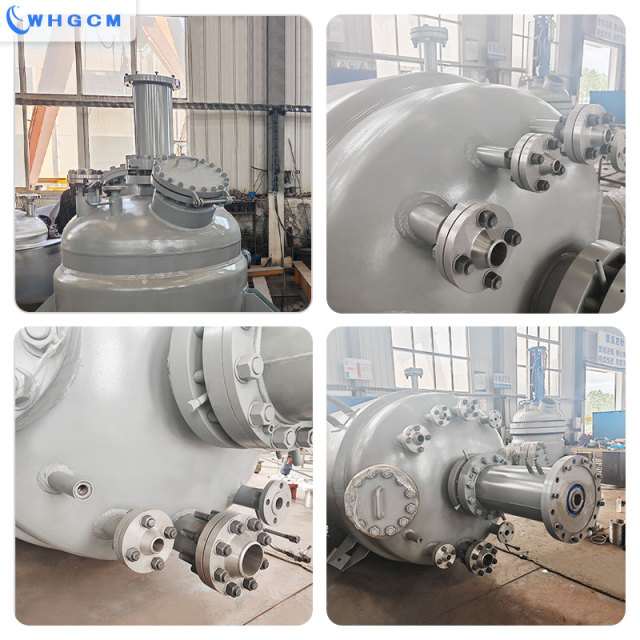

Tank cover nozzle ports -Material feeding ports -Vent port -Hydrogenation gas inlet with distributor -Liquid inlet port -Tank inner temp measuring ports -Pressure gauge/safety valve port -Jacket thermal oil circulation inlet/outlet Note: all nozzle ports & fitting type can be customized Manhole -Regular inspection and maintenance entrance -Safe, convenient and reliable |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
