| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 4 | ||
| 2 | Work volume（L） | 3 | ||
| 3 | Design pressure（MPa） | -0.1~3 | 0.5 | |
| 4 | Work pressure（MPa） | -0.1~2.5 | 0.4 | |
| 5 | Design temperature（℃） | -15~150 | -15~150 | |
| 6 | Work temperature（℃） | -10~100 | -10~100 | |
| 7 | Material | Stainless steel S31603 | Stainless steel S30408 | |
 |

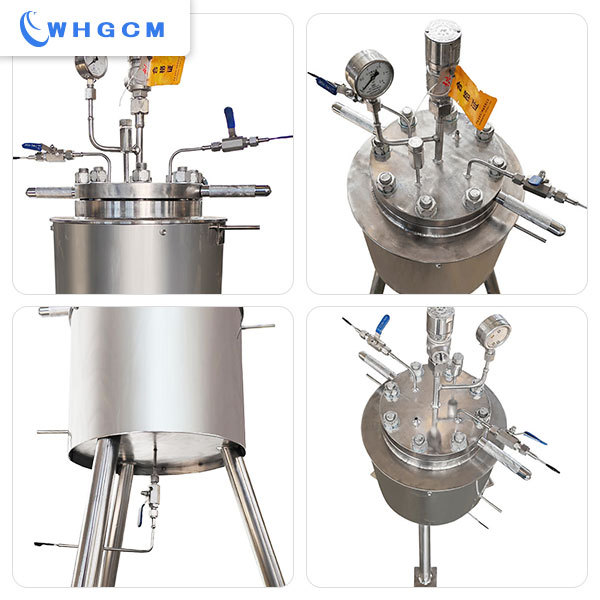

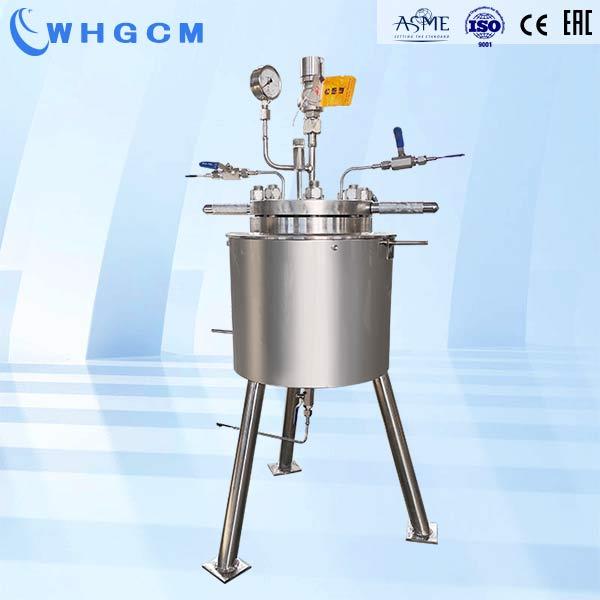

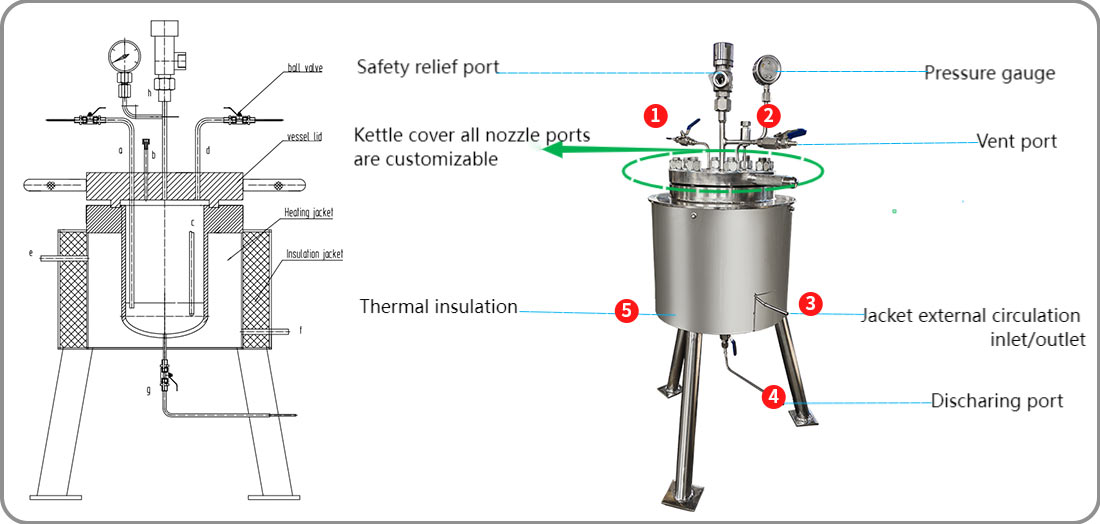

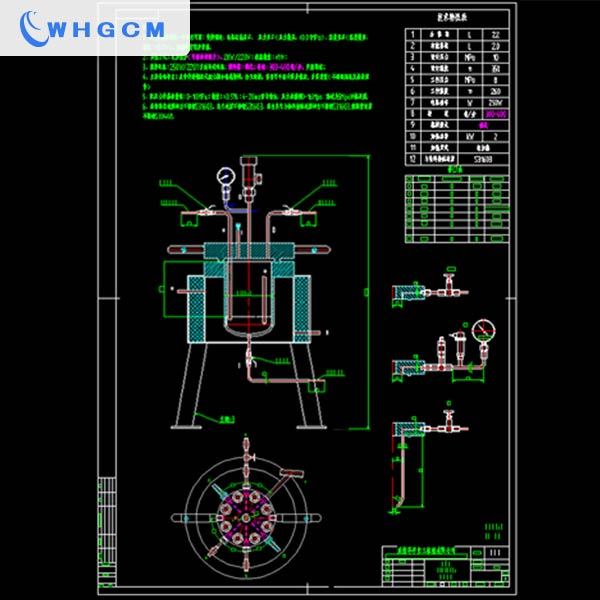

This is the temporary storage tank customized as per clients' request. Parts to withstand the high pressure Flange The MFM surface connection flange is used for lid sealing, so it wouldn't leak due to the high pressure inside the vessel. The cylinder is enforced with surfacing welding, and it is machined with FM flange type to comply with the flange on lid. Vessel cylinder's thickness The thickness is 4mm, so to meet highest work pressure of 25 bars. Pressure gauge and burstdisc They could make sure the vessel under monitoring. Good corrosion resistance The applicaiton of the stainless steel S316L for this vessel ensure the corrosion resisting performance. The tube to be injected inside the vessel is made from S316L too. |

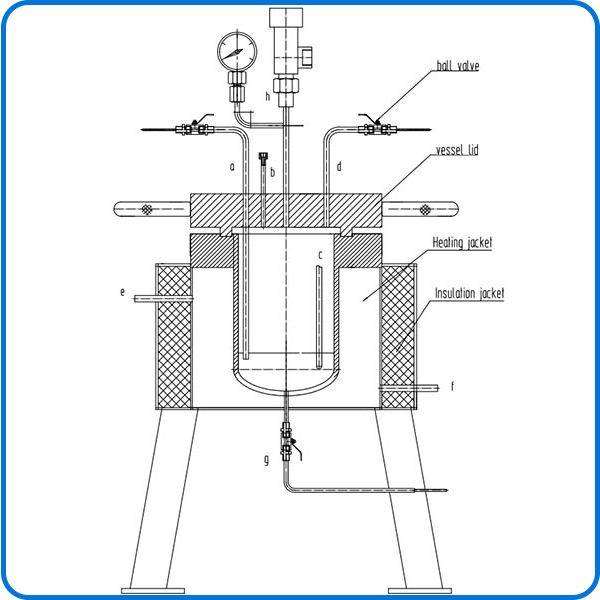

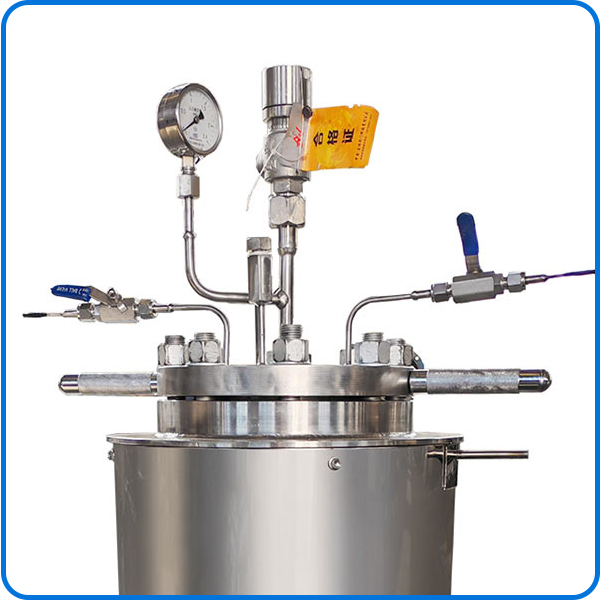

| Jackets The vessel has two jackets, one is the temperature adjusting jacket attached to the vessel external wall, and the other is the thermal insulation jacket. The thermal jacket will be connected to the external circulation tank, that supply the heat and cool refrigerant via the inlet/outlet of the jacket. The housing of both jacket are all made from stainless steel S30408. Vessel's lid The vessel's lid opens customized ports, with the nozzels connecting the pressure gauge and safety valve. The ball vales are made from stainless steel S316L. The lid is sealed with high sealing performance flange, which is surfacing welded with S316L. |
 |
 |

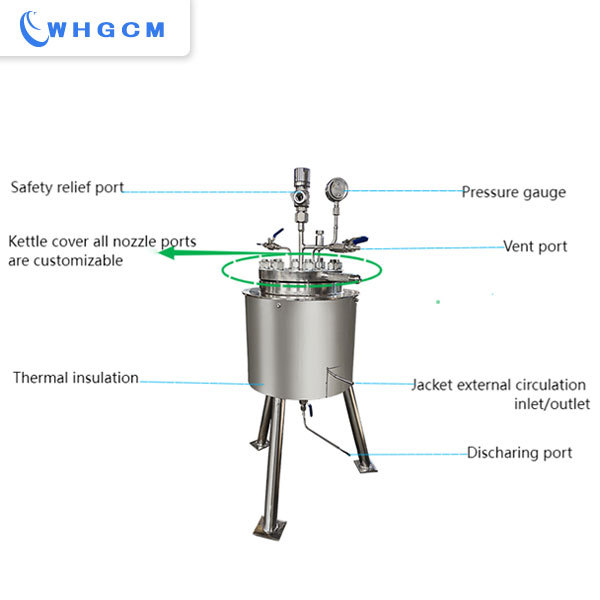

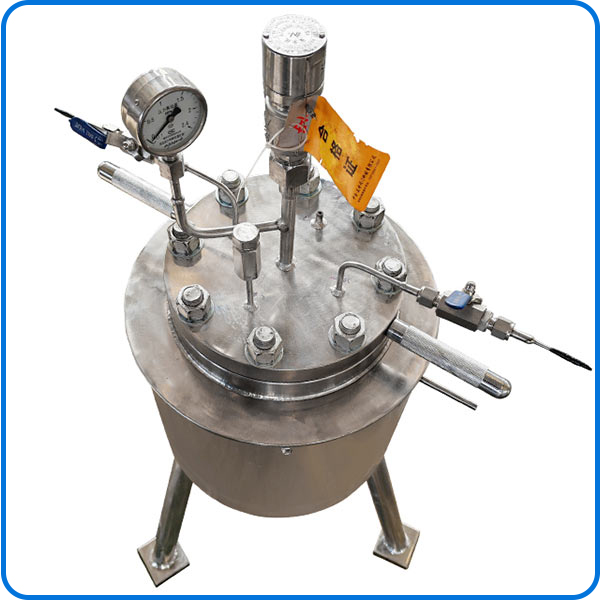

Ports and Nozzels All of the ports, nozzles, and gauges are using stainless steel S316L. The other two ports assembled with ball valve are for medium inlet and outlet. There are two handles screwed on the two side, so the lid could be removed after the flanges is unbolted.The handle on the vessel's lid is made from stainless steel S304. The charging port and vent port is welded with stainless steel pipe. The reserver port is screw connected to the reactor lid. |

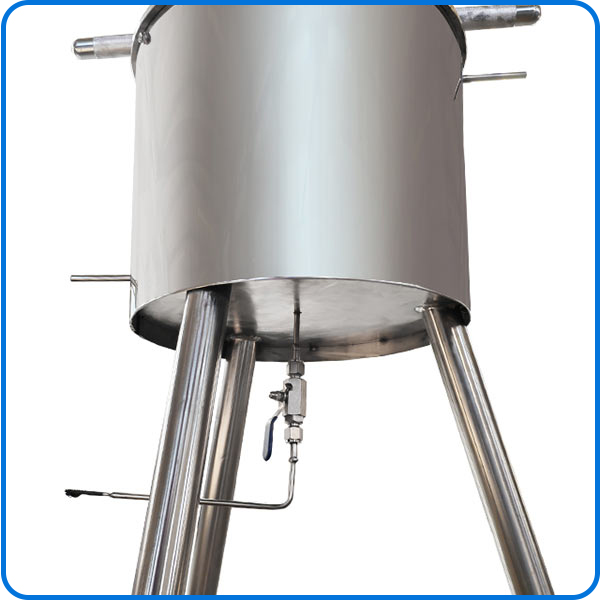

| Jacket The jacket of the vessel makes the size of vessel to be thicker. The inlet and outlet of the heating jacket are welded with bushing clip tube, and it is stretching outof the insulation jacket. This is much convenient for operator to connect the pipes of external circulation heating tank. Legs The vessel is supported with 3 legs made from stainless steel S30408. The legs are welded to the bottom of the insulation jacket. The height of the legs could make it easy for operation without bend down. Dischage port The discharge port is adopting a stainless steel 316L ball valve with dia. of 6mm. The outlet pipe of is 90° bent. |
 |
