| No. | Parameters | Tank | ||
| 1 | Full volume（L） | 580 | ||
| 2 | Work volume（L） | 500 | ||
| 3 | Design pressure（MPa） | -0.1~0.5 | ||
| 4 | Work pressure（MPa） | -0.1~0.3 | ||
| 5 | Design temperature（℃） | 450 | ||
| 6 | Work temperature（℃） | 300~400 | ||
| 7 | Material | SS304 | ||
| 8 | Stirring speed | 200~500 | ||
| 9 | Motor power (W) | 5500 | ||
 |

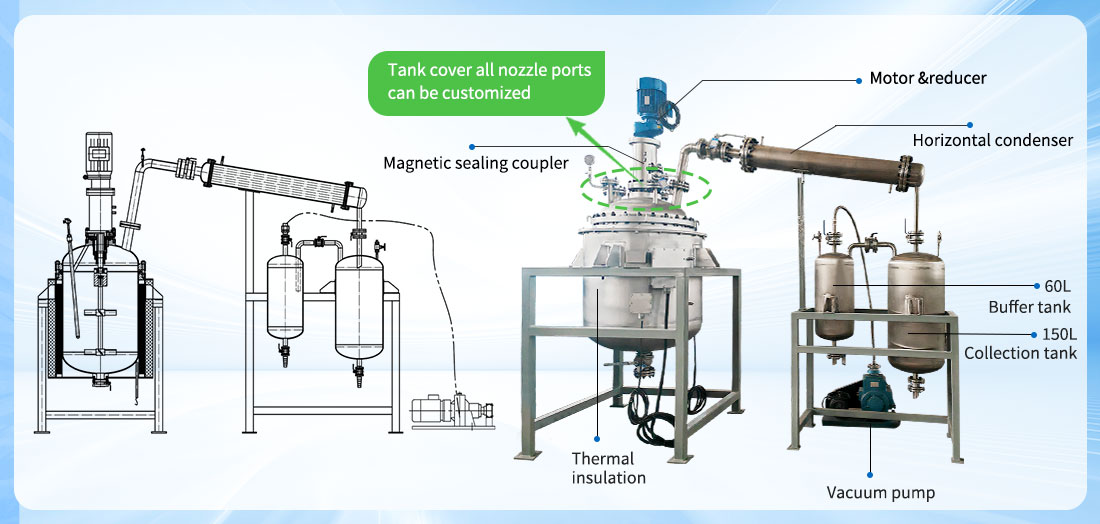

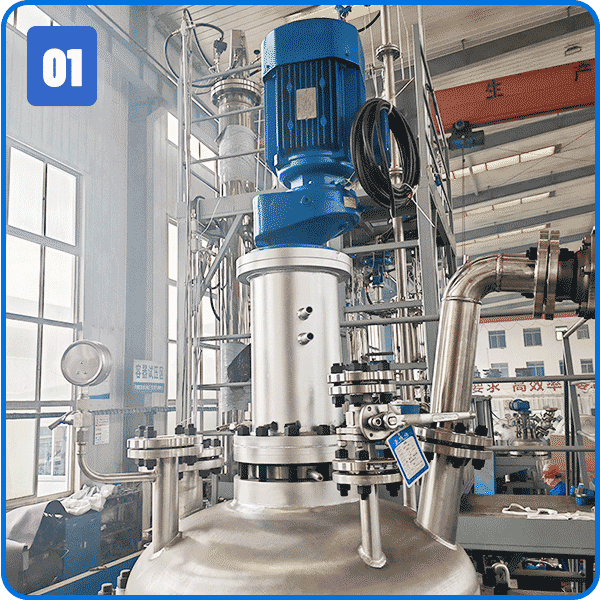

Stirrer mechanism -Magnetic sealing stirrer -Core technology: Static sealing, magnetic transmission distillation device The distillation device is including the condensers, receiving tank and buffer tank, that similar with most of the reactor system with distillation. The only differece are the sizes of each part, which is designated by client. |
|

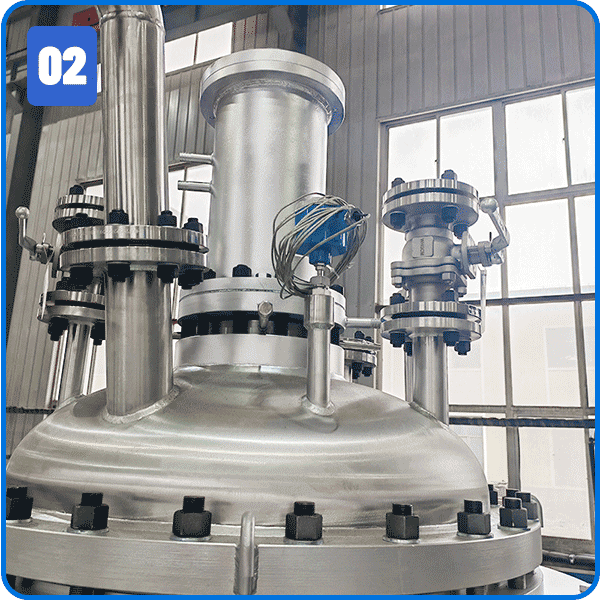

Kettle cover all nozzle ports are customized as the user's requirements
-With Positive/Negative pressure gauge/mercury vacuum gauge/rupture disc -Gas-liquid-solid phase inlet ports -Distillation port connect with condenser devices
-Tank inner/jacket temperature measuring ports Note: all nozzle ports & fitting type can be customized |
 |
 |

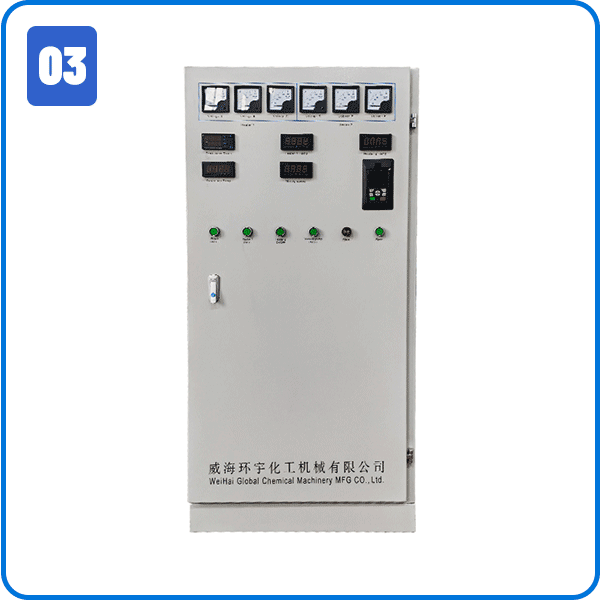

Intelligent PID Controller： The controller could display the stirring speed, temperature , pressure, and vacuum. The bottons of the monitoring parameters are customizable, and you could also use our suggested bottons. The other functions can be customized too. |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
