| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 63 | ||
| 2 | Work volume（L） | 50 | ||
| 3 | Design pressure（MPa） | 12 | ATM | |
| 4 | Work pressure（MPa） | 10 | ATM | |
| 5 | Design temperature（℃） | 300 | 300 | |
| 6 | Work temperature（℃） | 250 | 250 | |
| 7 | Material | C276+Q345R | Q345R | |
| 8 | Stirring speed（r/min） | 200~450 | ||
| 9 | Motor power（KW） | 1.1KW（dIICT4） | ||
 |

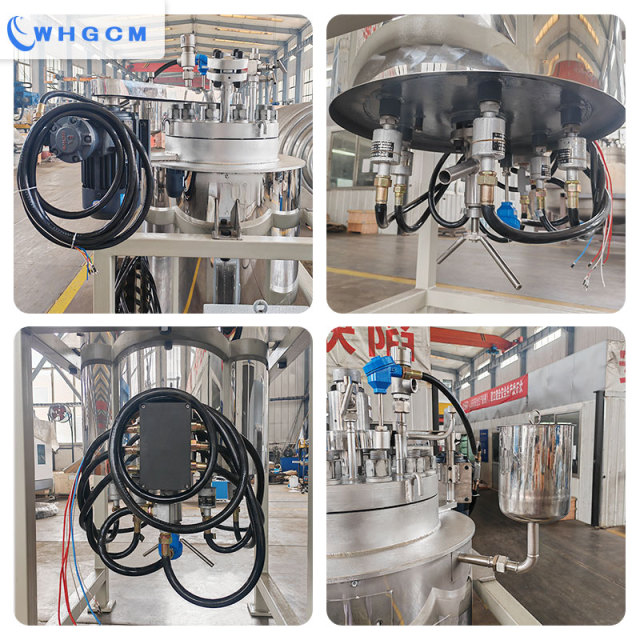

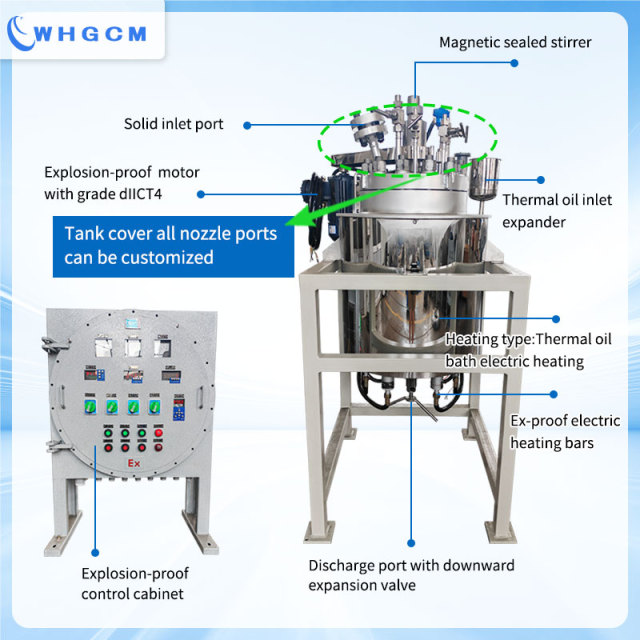

Magnetic sealed coupler stirrer Core technology:
-Static seal, magnetic drive,100% no leakage
-Coupler with inner cooling system inlet/outlet, avoid over-heating

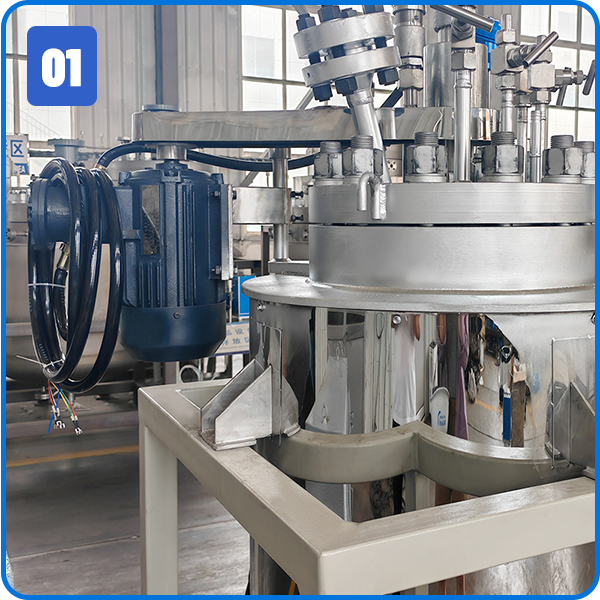

Side mounted Explosion-proof motor Powerful motor is assembled to ensure high stirring speed. It is side mounted, the shaft of coupler is driven via a belt of the motor. It has exproof structure, Explosion-proof grade dIICT4，so it won't cause any electric sparks while using. |

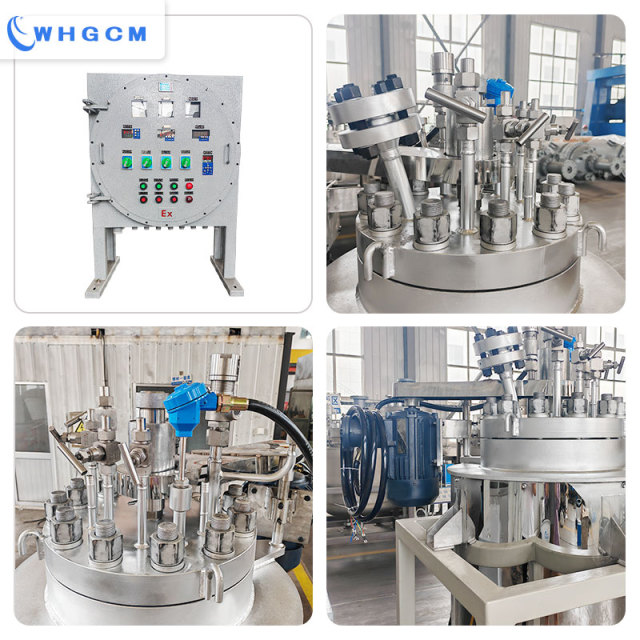

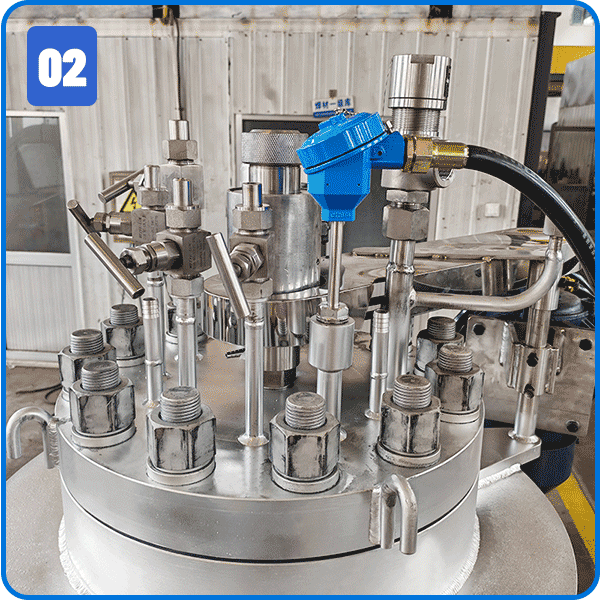

| Kettle cover nozzle ports -Solid/liquid phase material feeding ports -Gas inlet with distributor & vent port -Pressure gauge & safety valve ports -Tank inner & jacket temp measuring ports -Jacket thermal oil inlet with expansion tank -Discharging port etc. All nozzle ports can be customized. |
 |
 |

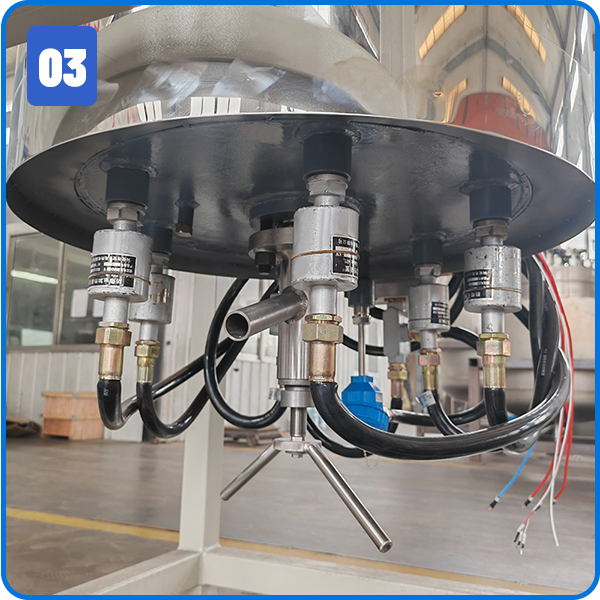

Oil bathed electric heating jacket There are 8pcs Explosion-proof electric heating bars with their heating rods plug inside the jacket. The rods are immersed inside the thermal oil containing in the jacket. These are the electric heating bars for the reactor.The heating bars are injected via the ports opened under the bottom of the jacket. The elctric heating is fast and easy to operate than other kinds of heating methord. Insulation jacket It is used to prevent the heat from releasing, then to save the energy and protect the operator from heat harzard. |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
