00621
| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 5 | ||
| 3 | Design pressure（MPa） | 12 | ||
| 4 | Work pressure（MPa） | 10 | ||
| 5 | Design temperature（℃） | 350 | ||
| 6 | Work temperature（℃） | 300 | ||
| 7 | Material | SS316L | ||
| 8 | Stirring speed | 0~200 | ||
| 9 | Motor power (W) | 550（dⅡCT4） | ||
 |

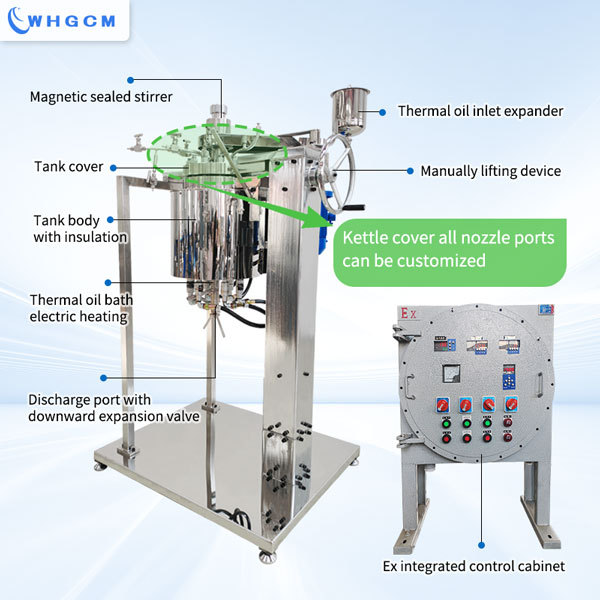

Kettle cover nozzle ports -Positive/negative pressure gauge & rupture disc port -Tank inner temperature measuring port
-Solid-liquid-gas phase inlet port
-Liquid phase constant pressure feeding tank
-Vent port, discharge port
Note: all nozzle ports can be customized
|

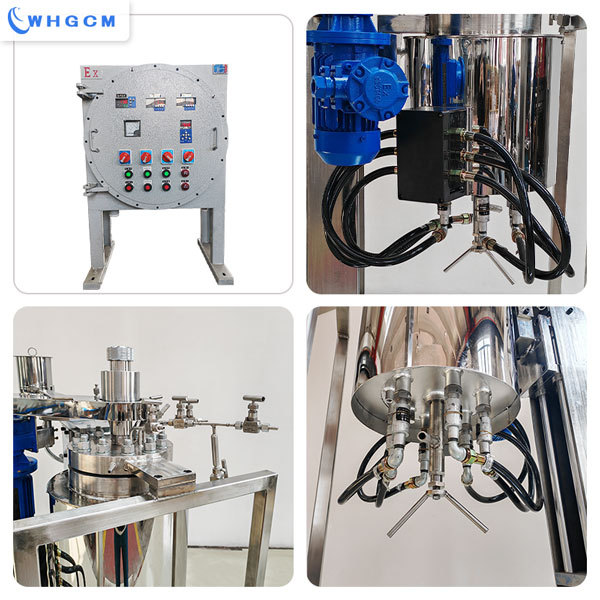

| Explosion-proof motor Side-pull mounted Explosion-proof motor connected with magnetic sealed stirrer Heating type: Jacket thermal oil bath heated by Explosion-proof electric heater with operation column |
 |
 |
Tank bottom -Discharge port with downward expansion valve -Jacket drain port
-jacket temperature measuring
|
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
