| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 6.6 | ||
| 2 | Work volume（L） | 5 | ||
| 3 | Design pressure（MPa） | -0.1~7 | ||
| 4 | Work pressure（MPa） | -0.1~6 | ||
| 5 | Design temperature（℃） | 150 | ||
| 6 | Work temperature（℃） | 100 | ||
| 7 | Material | S30408 | ||
 |

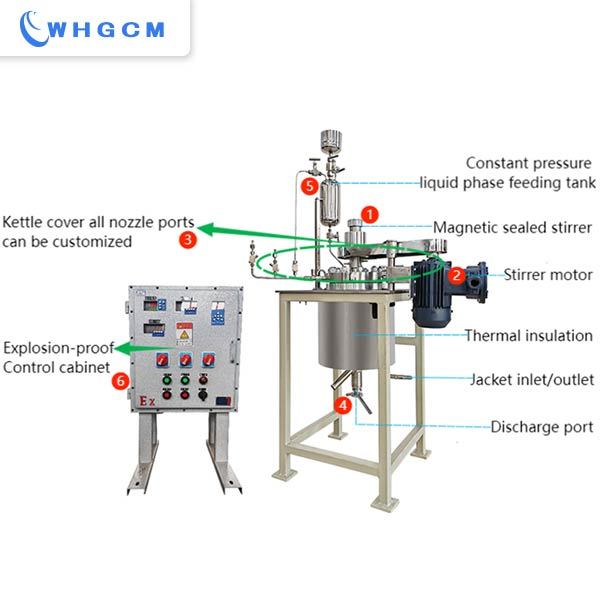

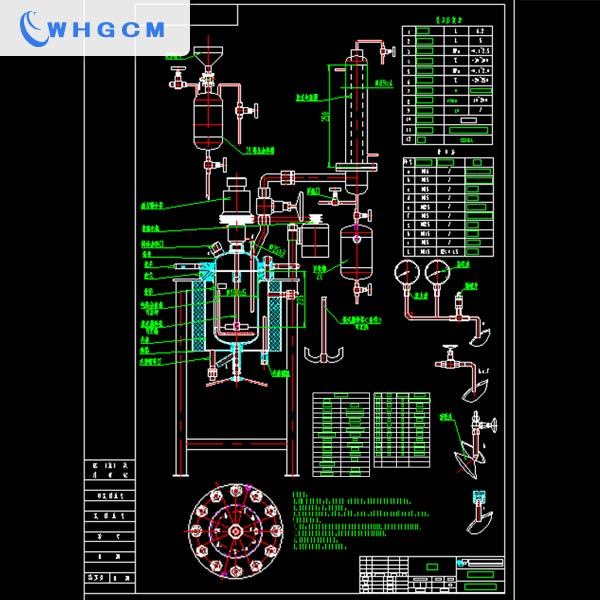

· The reactor's ports are opened as per the customer's request. All of the nozzles are standard or customized. Ports Names and Purpose: · Pressure gauge, burst disc. · Gas inlet. · Gas outlet. · Thermometer port. · Feeding port for Solid material. · Inlet and outlet of Jacket. · Fliud inlet / constant pressure feeding port of material. · Vaccum port. |

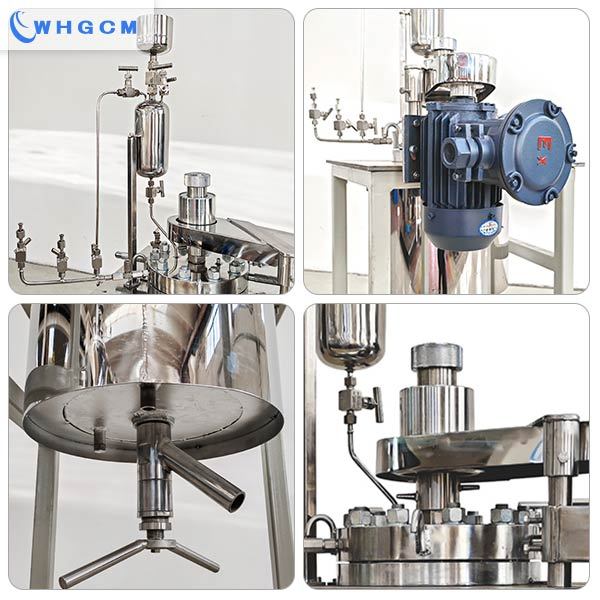

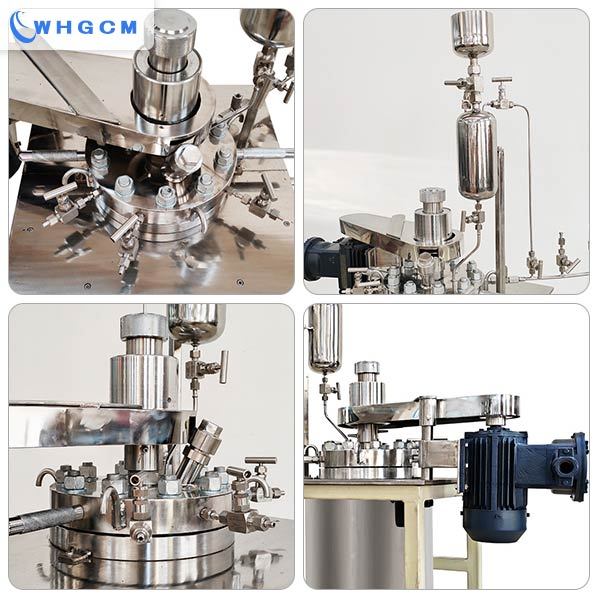

| · The components of the kettle cover are evenly distributed, and the structure is brief and beautiful, space-saving, and easy to operate. · The constant feeding tank is assembled with a fluid feeding port, and a needle valve is placed on the steel pipe between them for manual control of the feeding. · The stirrer is driven by the motor via a belt, which is covered with a stainless steel shell for safety, sanitary, and protective purposes. · The shaft sleeve of the stirrer is magnetically sealed. It has the advantage of silence, zero leakage risk, and energy saving. · Two steel hooks are welded opposite on the periphery of the reactor lid for lifting purposes. · The flange thickness and the number of bolts are designed as per ASME standard requirements according to the work pressure requirement. · The nuts are painted with silver paint to anti corrosion. The bolts are blacken-treated for the same purpose. |
 |
 |
· The motor with a power of 550W. · The paddle of the agitator inside the kettle with Dia. of 60mm. · As the fluid has a small viscosity, the rotation speed of the agitator could be 400 to 700 RPM, so to meet the customer's request for stirring. · The motor has the feature of Explosion-proof because the medium is flammable and explosive. · The reason to put the motor aside is to lower the center of gravity of the whole equipment so that the reactor can stand steadily. |
| · The port and pipe on the left side of this picture is port a. · There are two gauges including a pressure gauge, a negative pressure gauge, a burst disc, and a feeding port to pressure the constant feeding tank on it. · The feeding tank has a feeding hopper upon it. A needle valve is assembled between the pipe. · The constant pressure tank connects with pressure gas via the pipe, so the fluid medium can be pressed into the reactor by pressure gas. |
 |
 |

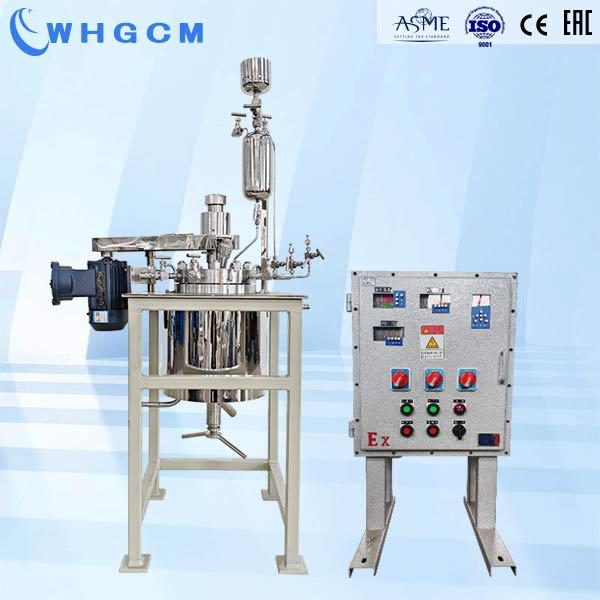

· This is the PID controller with the explosion-proof feature. · The temperature and current of the motor could be displayed on it. · The speed can be controlled via frequency control of it. · The other control, display, and monitoring options are also available as per customers' requests. |
 |
Full volume (L) 6.6 Effective volume (L) 5 Design pressure (MPa) -0.1~7 Operating pressure (MPa) -0.1~6 Design temperature (℃) 150 Operating temperature (℃) 100 The material in contact with material SS316L Stirring method: Propeller type Stirring speed 400~700 Heating method Jacket external circulation Motor power (W) 550 (dIIBT4) Sealing method Magnetic force Medium PO, EO Product Polyether polyol |
