-Jacket drain port
-Discharge port with blind plate covered
00617
| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 6700 | ||
| 2 | Work volume（L） | 6000 | ||
| 3 | Design pressure（MPa） | -0.1~0.8 | 0.6 | |
| 4 | Work pressure（MPa） | -0.1~0.6 | 0.5 | |
| 5 | Design temperature（℃） | 160 | 250 | |
| 6 | Work temperature（℃） | 145 | 200 | |
| 7 | Material | S31603+Q345R、16MnⅡ | Q345R | |
 |

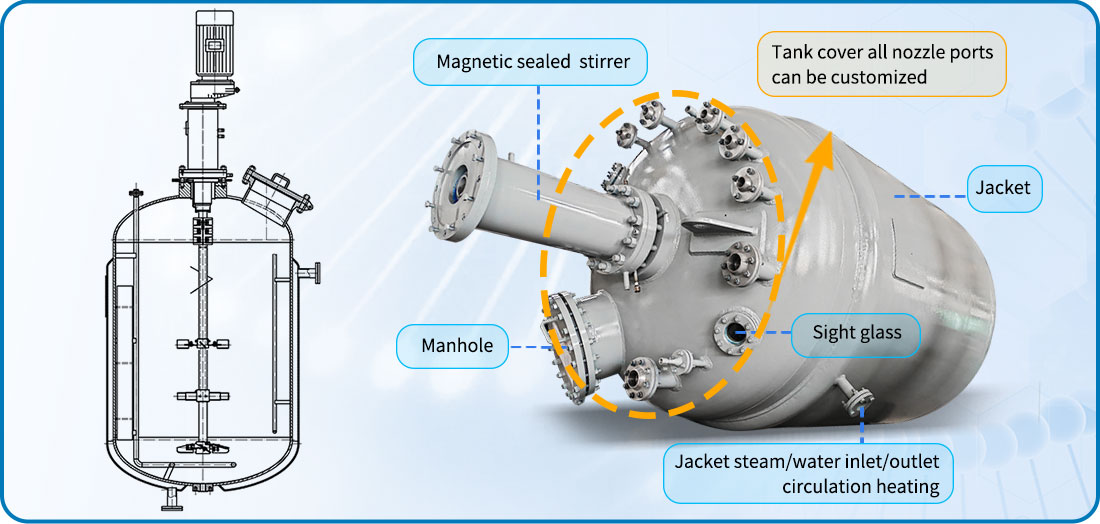

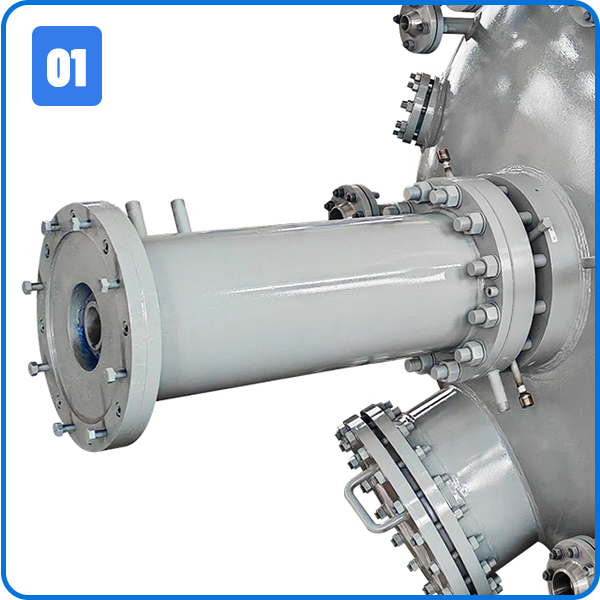

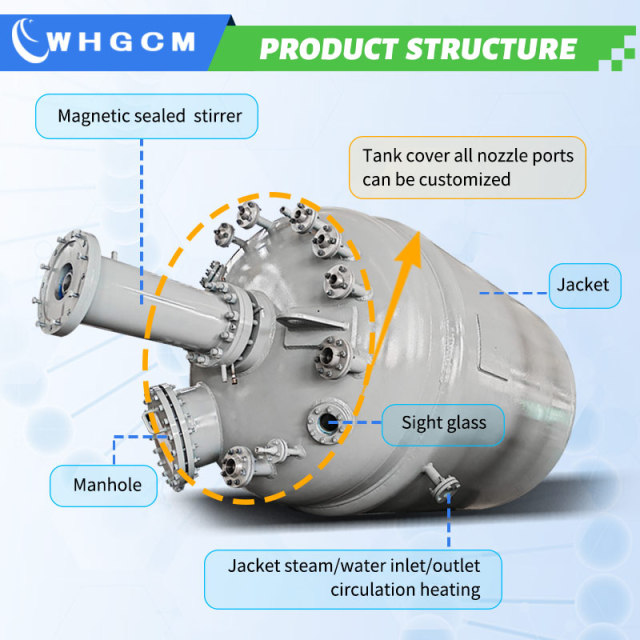

Stirrer mechanism
-Magnetic sealing stirrer -Core technology: Static sealing, magnetic transmission -Stirrer coupler with inner cooling system inlet/outlet
-frequency conversion speed regulation
which has good sealing and high strength for the pressure reaction. |

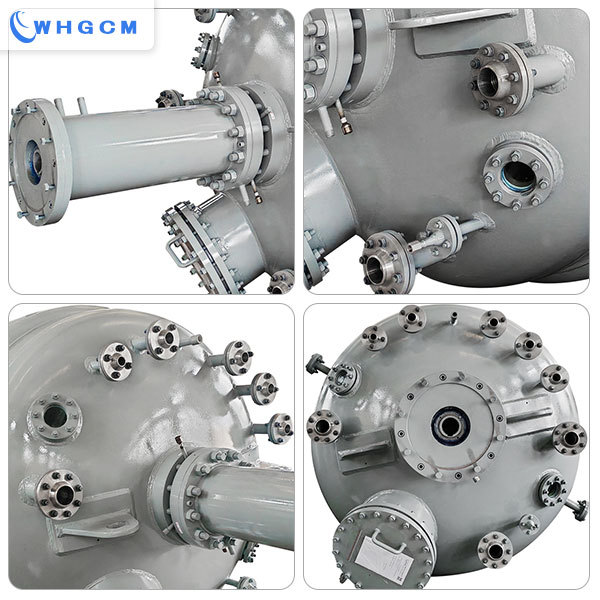

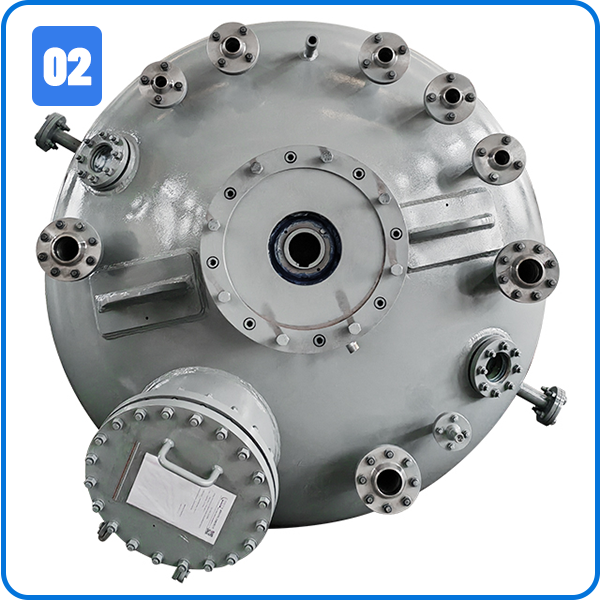

| Kettle cover nozzle ports -Material feeding ports -Vent port/vacuumize port
-Gas inlet with distributor
-Liquid inlet with insert bottom tube
-Tank inner temp measuring ports
-Pressure gauge/safety valve port
-Jacket steam/water circulation inlet/outlet
Note: all nozzle ports & fitting type can be customized |
 |
 |

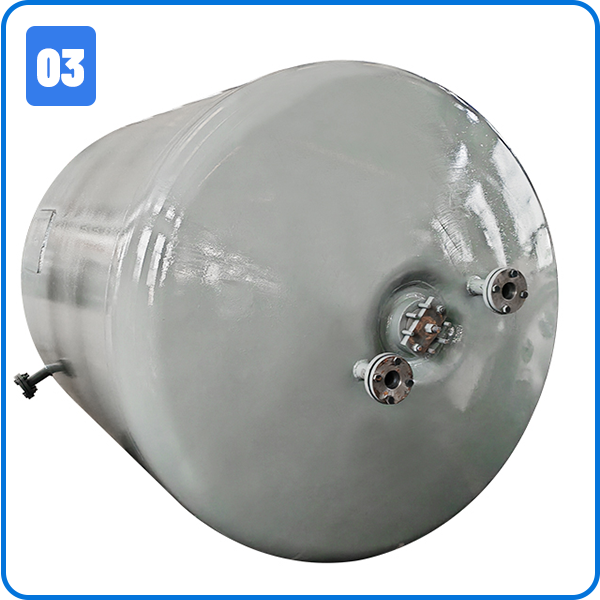

Tank bottom
-Jacket steam/water inlet/outlet
-Jacket drain port
-Discharge port with blind plate covered
|
