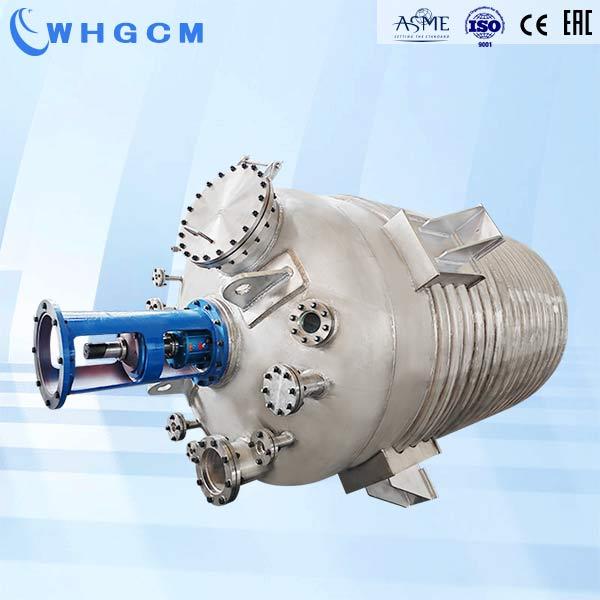

6300L stainless steel limpet coil reactor for Lubricating oil additives producing

Name: 6300L stainless steel limpet coil reactor for Lubricating oil additives producing
Brand: China high pressure reactor manufacturer
SKU: 00353
Availability: InStock
Rating: 5 (1 reviews)

No.00353

6300L stainless steel limpet coil reactor for Lubricating oil additives producing .The half pipe coil jacket reactor is a typical industry reactor with heating principle of the external circulation heating. The thermal medium to be circulated along the halp pipe is hot water, steam, or oil.

No.	Parameters	Kettle	Half pipe coil jacket
1	Full volume（L）	6800
2	Work volume（L）	6300
3	Design pressure（MPa）	-0.1	1
4	Work pressure（MPa）	-0.1	0.8
5	Design temperature（℃）	170	170
6	Work temperature（℃）	120	120
7	Material	S30408，Q345R	S30408

Click for Quotation

Description

poster of the 6300L reactor with half pipe coil jacket

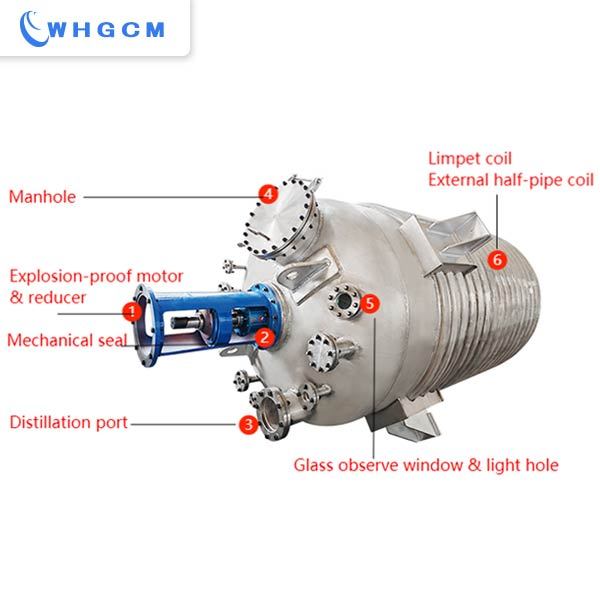

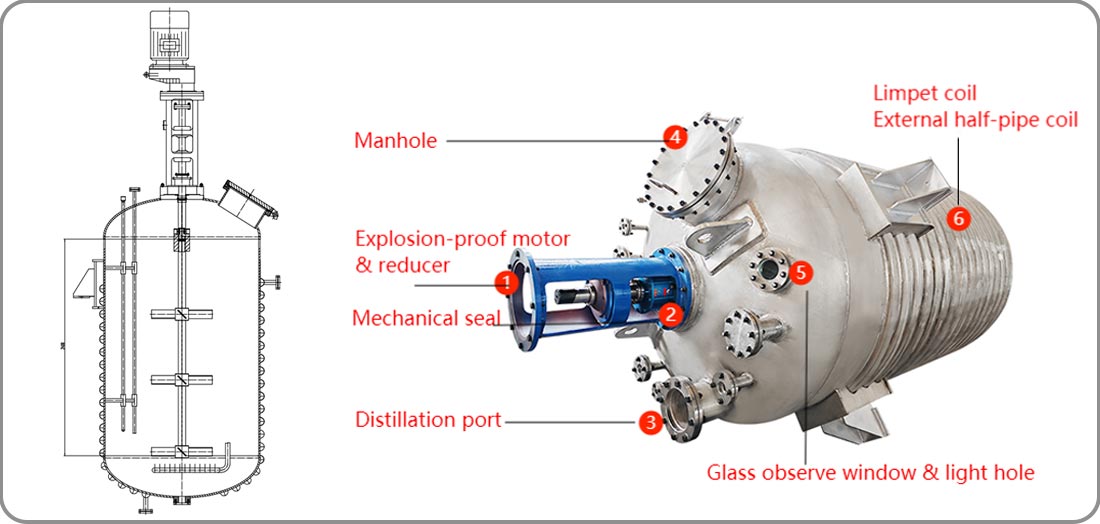

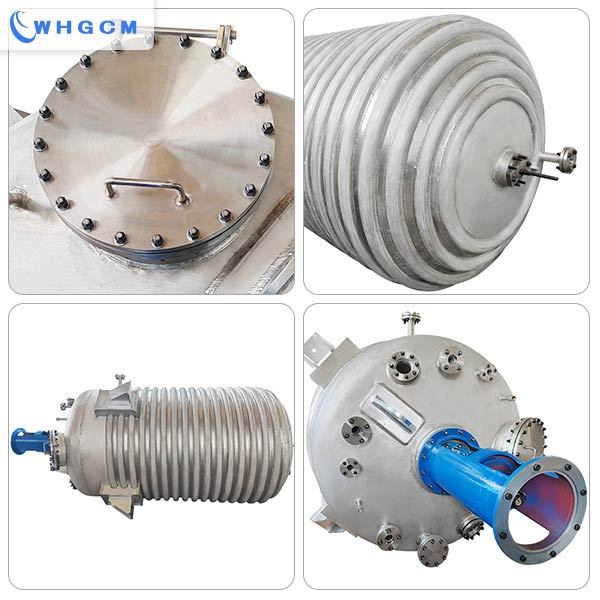

Picture of 6300L reactor with half pipe coil jacket structure

The half pipe coil jacket reactor is a typical industry reactor with heating principle of the external circulation heating. The thermal medium to be circulated along the halp pipe is hot water, steam, or oil. The chosen of medium depends on the highest temperature the reaction required. In this case, the work temperature is 120°C, so the steam and oil are all good to use.

Agitator:

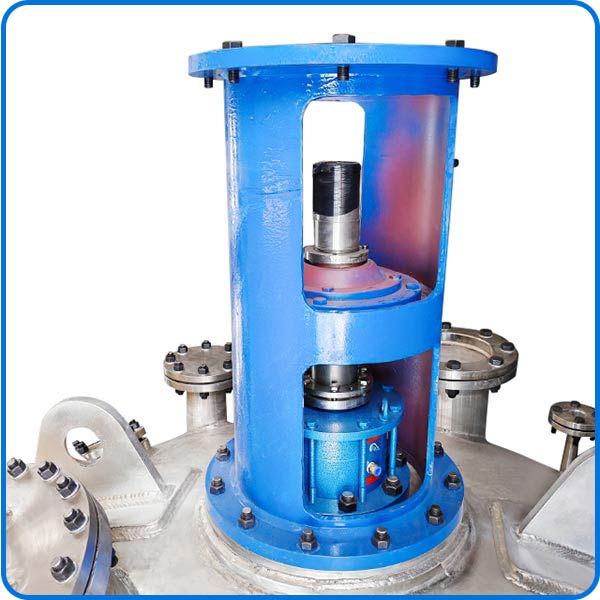

Mechanical coupler:

The pressure required is negative 0.1 Mpa, or is called as vacuum. So, both the mechanical coupler and magnetic coupler could provide enough sealing effect for this application. For economic purposes, we choose the mechanical coupler for this half pipe coil jacket reactor.

Reducer:

Although the strirring speed at 120RPM for the 6300L reactor is a quite high speed, comparing with motor original turning speed, it is still low. So the reducer is applied for speed reduction.

Three layers of blades:

All of the blade type is impeller style.

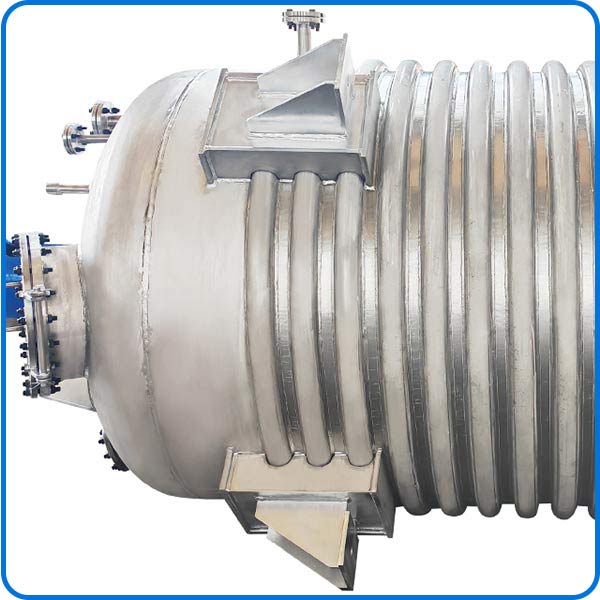

Half pipe coil jacket:

They are manufactured as a single part before they're welded on the external wall fo the reactor cylinder.They are made from half pipe, usually carbon steel or stainless steel.
The number of the coils are decided by the heat exchange area required by the reaction.
The coils profile is sometimes is circle, sometime is S shape.
It is usually welded with one coils, in some situation the coils is seperated into two or three smaller coils for accurate temperature controlling purposes.
The weld of the coils has to be zero leakage, or it is inspected as NG.
The reactor with half pipe coil jacket seems much slimmer than ordinary jacket reactor, because the coils is saving a lot of spaces.
And because it is welded out side of the kettle wall, it could reinforce the strength the wall. So, for the reactor with same volume and heating exhanging requirement, the material uses for half coil jacket reactor is less than ordinary jacket reactor. It means, the cost of the reactor with half pipe coil jacket is consequently less than the reactor with normal jacket.
The half pipe coils jacket has better heating exchanging efficiency than normal jacket reactor. It leads to a good energy saving during the operation.

1, platinum resistance PT100.
2、With frequency converter, non-explosion-proof.
3、Mechanical seal with explosion-proof motor reducer (explosion-proof grade dIIBT4).
4, with negative pressure table (-0.1 ~ 0MPa), with sight glass, feeding port and discharge port with blind, other pipe mouth flange matching supply.
5、Cylinder body, head and kettle contact material material is stainless steel S30408, half pipe material S30408, flange material S30408.
6、No heat preservation, no support.
7、Polished inside kettle, Ra≤0.8.

Design pressure (MPa)
Vessel :-0.1 , Jacket 1.0
Working pressure (MPa)
Vessel :-0.1 , Jacket 0.8
Design temperature (℃)
Vessel :170, Jacket: 170
Working temperature (℃) 120 120
Vessel :120 , Jacket: 120
Material
Vessel :Q345+S30408 Jacket:S30408
Stirring paddle form Three-layer paddle type
Shaft seal form Mechanical seal

industry reactor general parameters range form
