| No. | Parameters | Tank | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 200 | ||
| 3 | Design pressure（MPa） | -0.1~2.0 | ||
| 4 | Work pressure（MPa） | -0.1~1.5 | ||
| 5 | Design temperature（℃） | 170 | ||
| 6 | Work temperature（℃） | 20~150 | ||
| 7 | Material | SS316L | ||
| 8 | Stirring speed | 0-150 | ||
| 9 | Motor power (W) | 3（dIICT4） | ||
 |

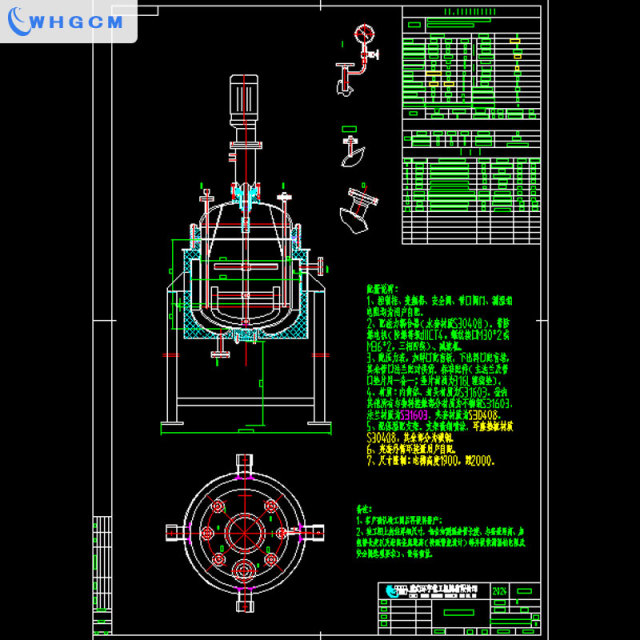

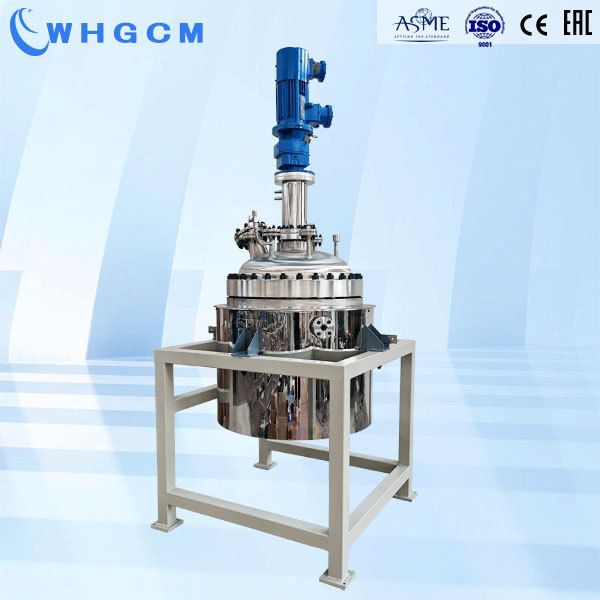

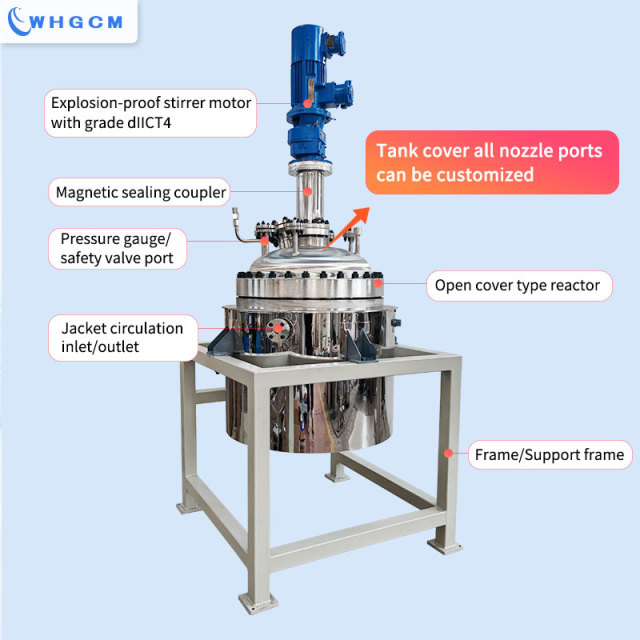

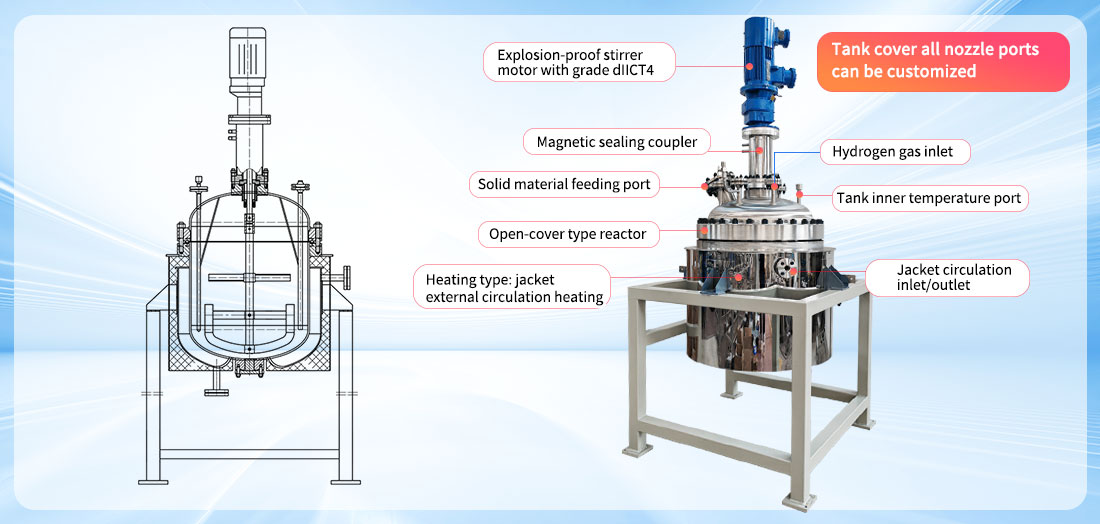

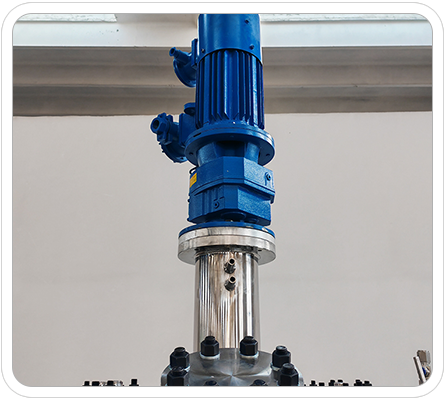

Magnetic sealed stirrer coupler
-100% ZERO leakage -Coupler inner with cooling system, avoid coupler inner overheating -Inside with oil leaking-proof receiving groove |

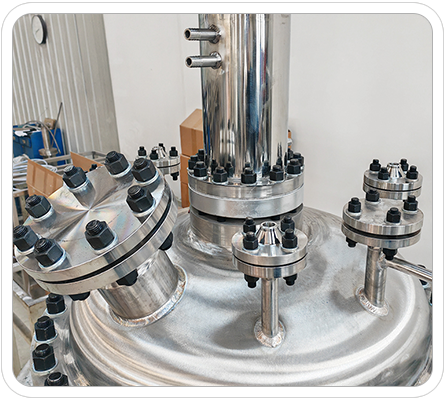

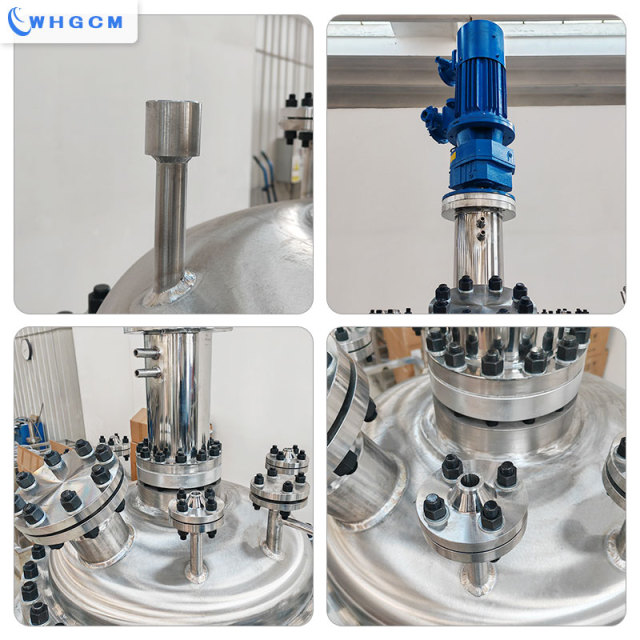

Tank cover nozzle ports -Solid material feeding port
-Tank inner temperature port -Pressure gauge/safety valve port
-Vent port
-Hydrogen gas inlet
-Jacket circulation inlet/outlet
-Spare port
Note: All nozzle ports are customized as the user's requirements |
 |
 |

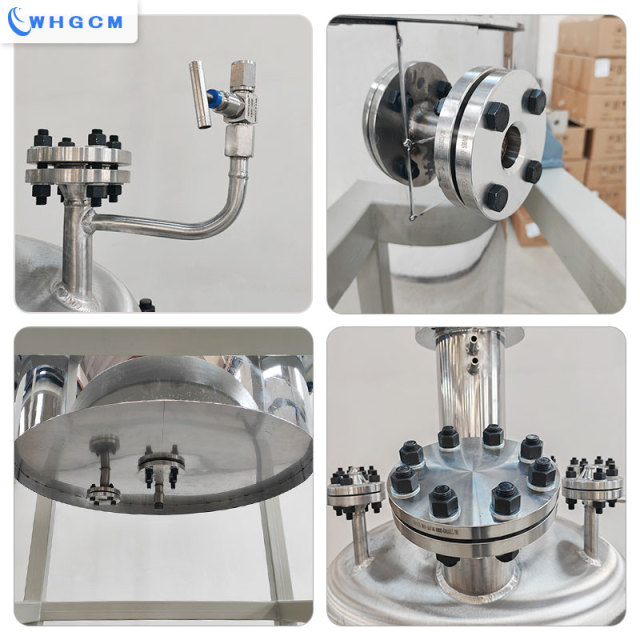

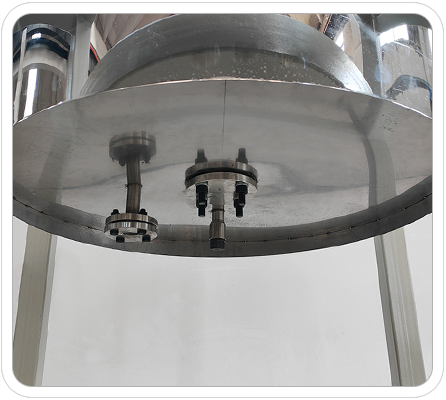

Tank bottom
-Jacket circulation inlet/outlet -Discharge port with blind plate covered The shape of bottom head could be customized too.
|
| Pilot Reactor Technical Parameters | |||||
| Working Volume (L) | 50 | 100 | 200 | 300 | 500 |
| Structure Type |
Open Style
Connect Kettle Lid and Kettle Body by Bolts and Nuts on Flange
|
||||
| Working pressure | Negative pressure -0.1~20.0 (MPa) | ||||
| Working temperature | -196-500°C | ||||
| Motor power (W) | 1.1 | 1.5 | 2.2 | 3 | 4 |
| Heating power (KW) | 9 | 15 | 18 | 18 | 36 |
| Heating type | Direct Electric Heating Fumace, Electric Heater with Thermal Oil Bath, Jacket Circulation with Thermal oil/steam/melt salt | ||||
| Discharging type | Discharging from bottom, sampling from kettle lid. | ||||
| Mixing Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. | ||||
| Stirring type | Impeller, Paddle, Anchor, Turbine, Self-suction, Frame, Screw, Belt, or as per customer's request. | ||||
| Seal type | Magnetic Seal, Mechanical Seal, Packing Seal. | ||||
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. | ||||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L,SUS321, SUS310, as well as titanium, nickel. zirconium, hastelloy.etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | ||||
| Kettle lid open port | Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc(safety valve) port, Cooling water inlet/outlet port(or Visual Glass Port and other port according to working pressure). | ||||
| Controller Device |
Equipped with auto PlD or PLC controller,Display & control Mixing Speed and Heating Temperature, self-adjustment function,temperature control accuracy +1°C;
Control other instruments, like flow meter, level meter, valves according to reaction
process.
|
||||
