| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 1.5 | ||
| 2 | Work volume（L） | 1 | ||
| 3 | Design pressure（MPa） | 2.5 | ||
| 4 | Work pressure（MPa） | 2.0 | ||
| 5 | Design temperature（℃） | -10~200 | ||
| 6 | Work temperature（℃） | 60~64 | ||
| 7 | Material | SS316L,SS304 | ||
| 8 | Stirring speed | 200~800 | ||
| 9 | Motor power (KW) | 0.08 | ||
 |

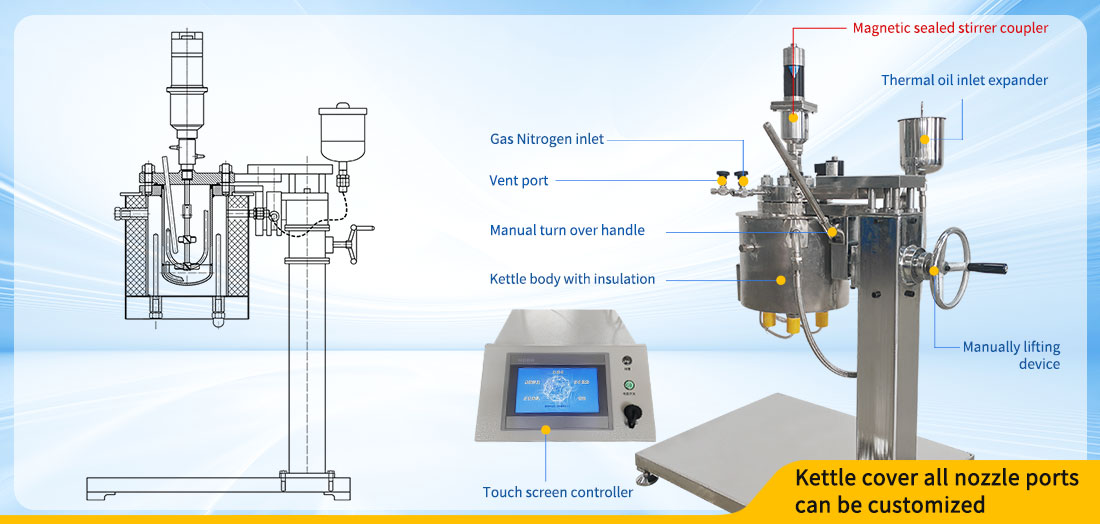

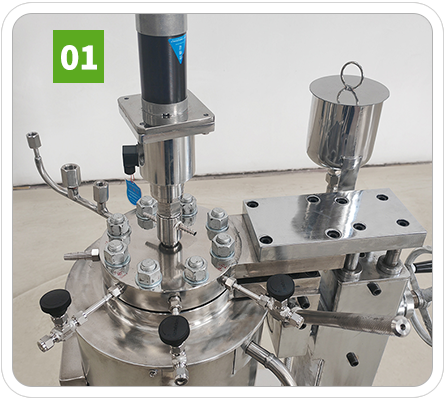

Kettle cover nozzle ports
-Gas Nitrogen inlet -Coil inlet/outlet port -Vent port -Insert bottom tube with sampling port Note: all nozzle ports can be customized |

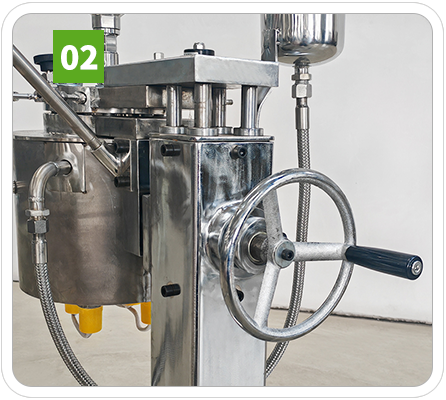

Manually lifting device
This reactor design with manually lifting device and manual turn over handle.
|
 |
 |

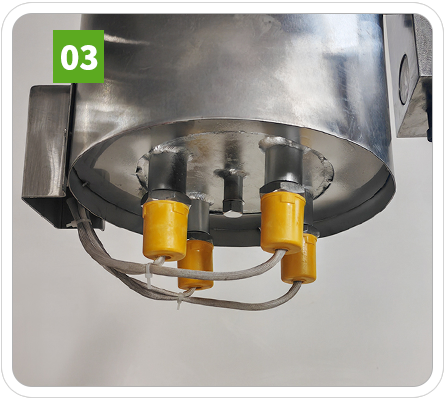

Heating type
-Heating: Jacketed water bath electric heating
-Cooling: Inner coil through circulating cooling water
|
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25-50 |
| Working pressure |
Negative pressure -0.1~40 MPa
|
Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa |
| Working temperature | 0-1500℃ | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power (KW) | 0.8~1 | 1-3 | 3-6 | 4-9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Charging type | Charging from above, discharging from below or above. | |||
| Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal. | |||
| Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy,etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. |
|||
| Controller Device |
Equipped with automatic or programmed PlD or PLC to achieve:
Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control;
Flow display and control; Valve open/close control, etc.
|
|||
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
