| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 12 | ||
| 2 | Work volume（L） | 10 | ||
| 3 | Design pressure（MPa） | 20 | ||
| 4 | Work pressure（MPa） | 18 | ||
| 5 | Design temperature（℃） | 350 | ||
| 6 | Work temperature（℃） | 320 | ||
| 7 | Material | SS304 | ||
| 8 | Stirring speed | 0-750 | ||
| 9 | Motor power (W) | 550 | ||
 |

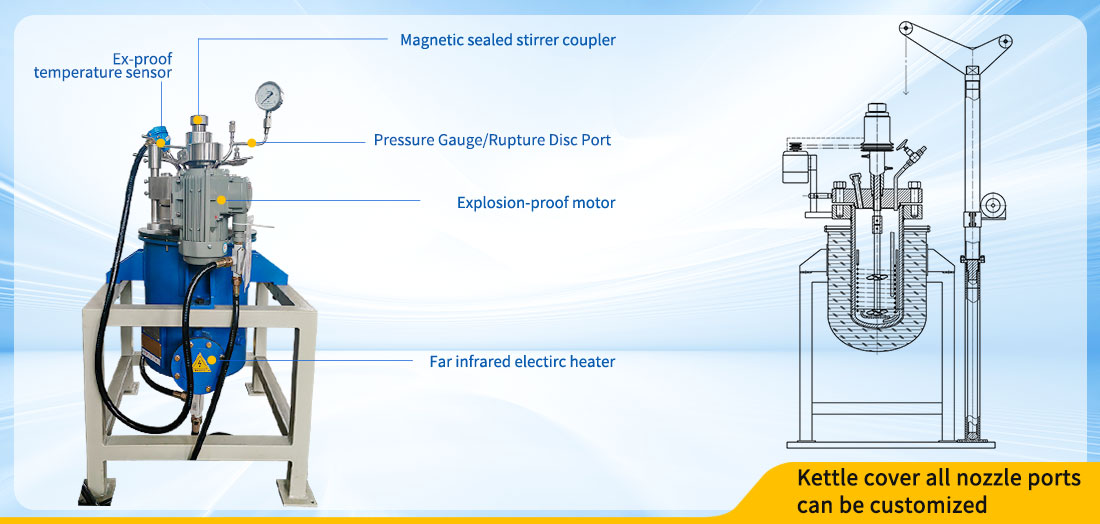

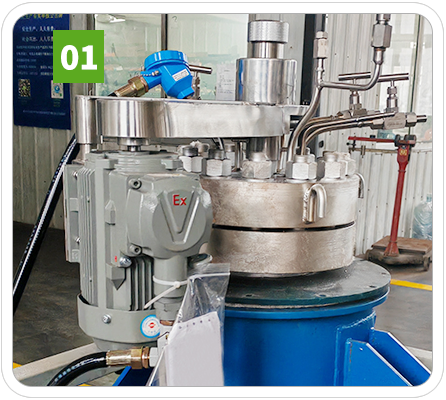

Ex Stirrer motor
Explosion-proof motor connected with Magnetic sealing Stirrer,static seal of magnetic transmission
-Side-pull mounted
-Explosion-proof dIIBT4 grade
-With belt guard cover
-The quality is stable and reliable
|
|

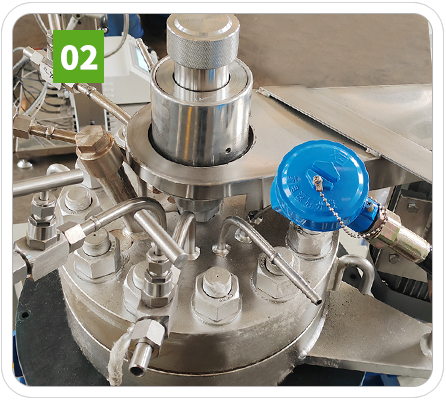

Kettle cover nozzle ports
-Pressure gauge & Rupture disc ports
-Kettle inner temperature measuring port -Explosion proof temperature sensor -Material feeding port -Vent port/Gas inlet -kettle inner cooling coil inlet/outlet
-Gas inlet with bottom distributor
Note: all nozzle ports can be customized
|
 |
 |

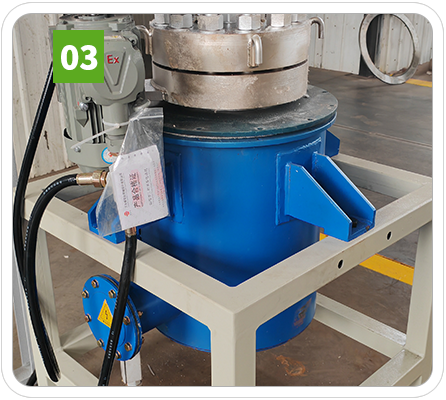

Reactor body
Material is stainless steels SS304 Heating type Far infrared electric heating |
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25-50 |
| Working pressure |
Negative pressure -0.1~40 MPa
|
Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa |
| Working temperature | 0-1500℃ | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power (KW) | 0.8~1 | 1-3 | 3-6 | 4-9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Charging type | Charging from above, discharging from below or above. | |||
| Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal. | |||
| Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy,etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. |
|||
| Controller Device |
Equipped with automatic or programmed PlD or PLC to achieve:
Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control;
Flow display and control; Valve open/close control, etc.
|
|||
