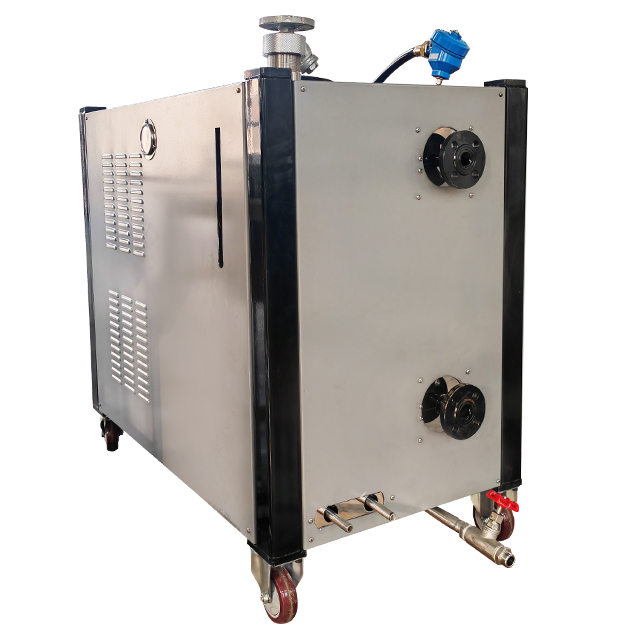

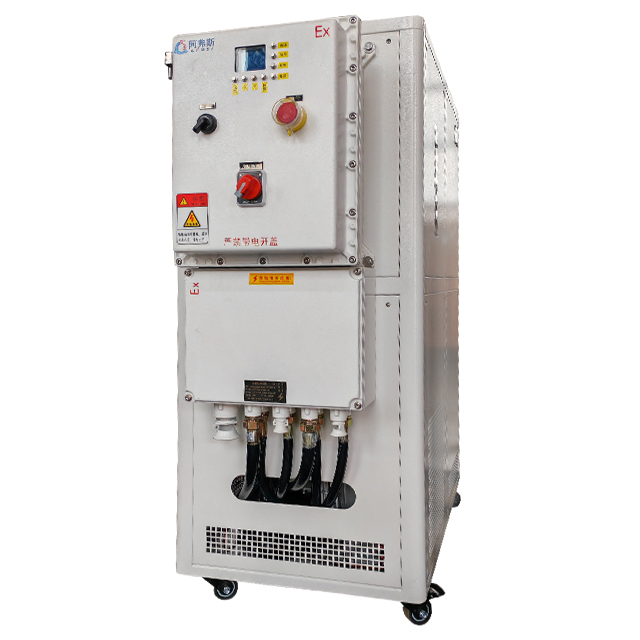

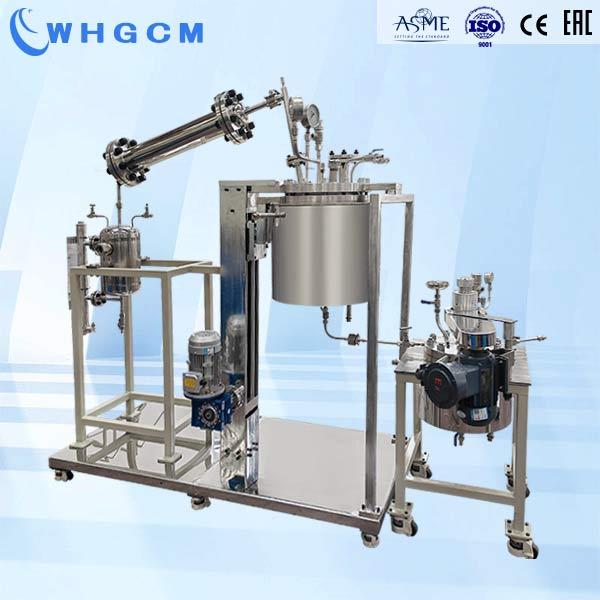

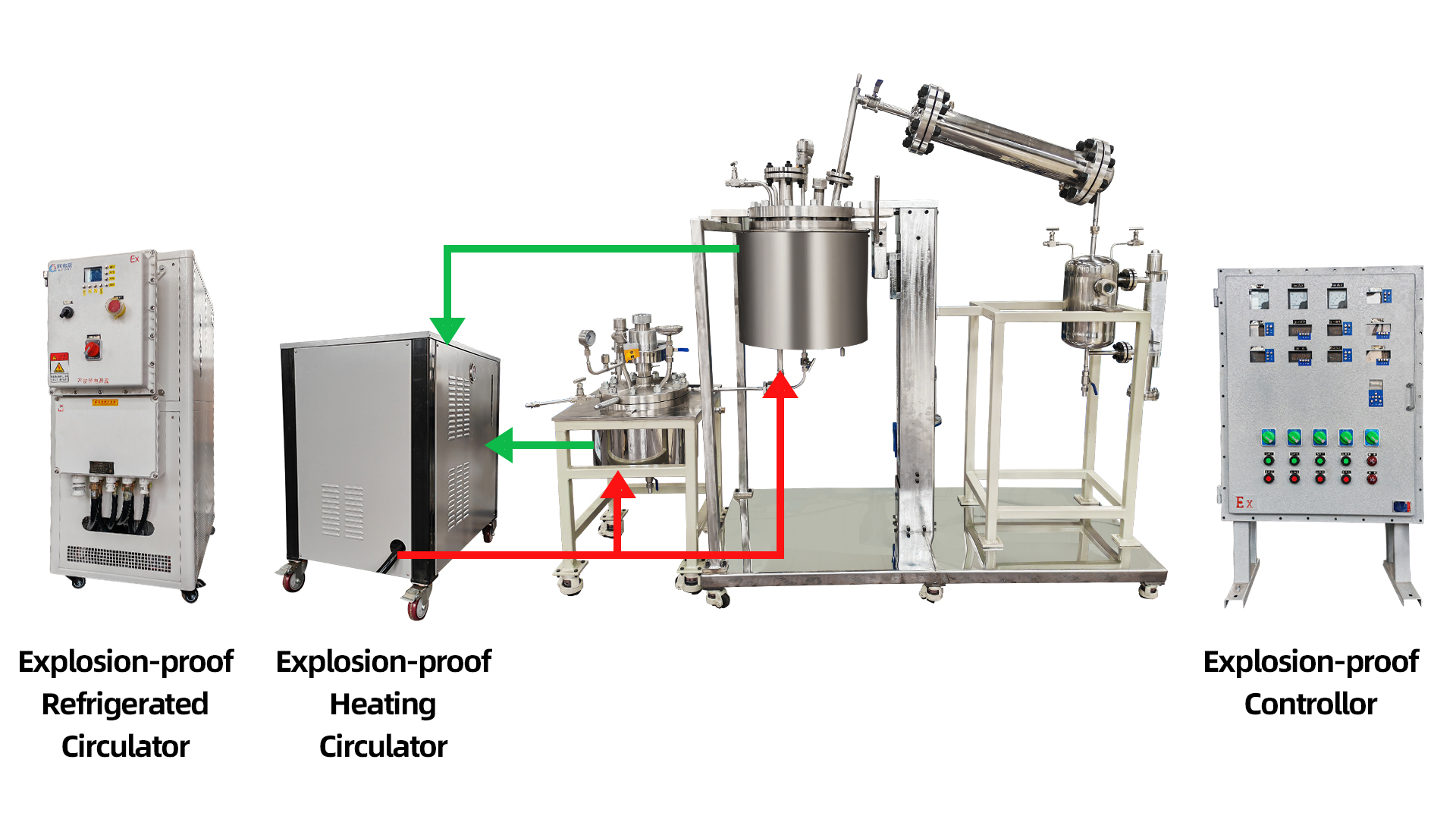

1, Explosion proof refrigerated ciculation cooling tank 1 set. 2, Explosion proof heating circulation tank 1 set. 3, 6 liters fuild reactor 1 set. 4, 25 liters reactors 1 set. 5, Condenser and collector, 1 set. 6, Explosion proof PID cabinet , 1 set. |
| Full volume | Working volume | Design pressure (MPa) | Working pressure (MPa) | Material |
| 7.8 L | 6.1 L | 2.5 | 1.5 | S31603 |
| Design temperature (℃) | Working temperature (℃) | Stirring paddle form | Shaft seal | Medium |
| 220 | 180 | Propeller | Magnetic seal | Ethylenediamine + water |
| Motor power | Speed | Heating method | Heating Power | |
| 550 W | 0~1000RPM | External circulation | 3KW |
 |

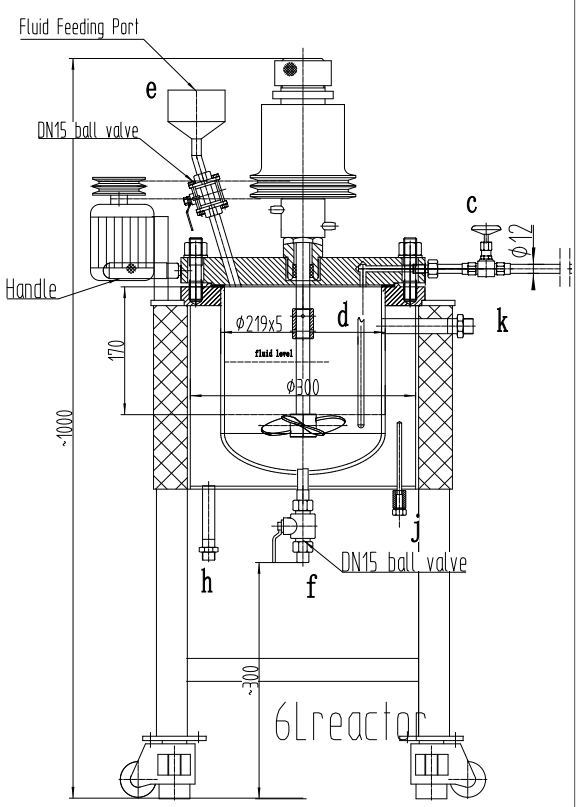

1、One set of magnetic coupler, with explosion-proof motor (dⅡBT4). 2、Kettle cover ports for valve, pressure gauge, safety valve, explosion-proof pressure sensor, explosion-proof temperature measurement platinum resistance, liquid inlet with funnel, discharge port with ball valve. 3、Material of kettle body and kettle cover is S31603; material of flange, jacket and heat preservation shell is S30408. 4、Insulation 5、 legs made from carbon steel, with casters |
| Full volume | Working volume | Design pressure (MPa) | Working pressure (MPa) | Material |
| 29 L | 25 L | 2.5 | 1.5 | S31603 |
| Design temperature (℃) | Working temperature (℃) | Heating method | Medium | |
| 220 | 180 | External circulation | SiO2 and Al2O3 |
 |

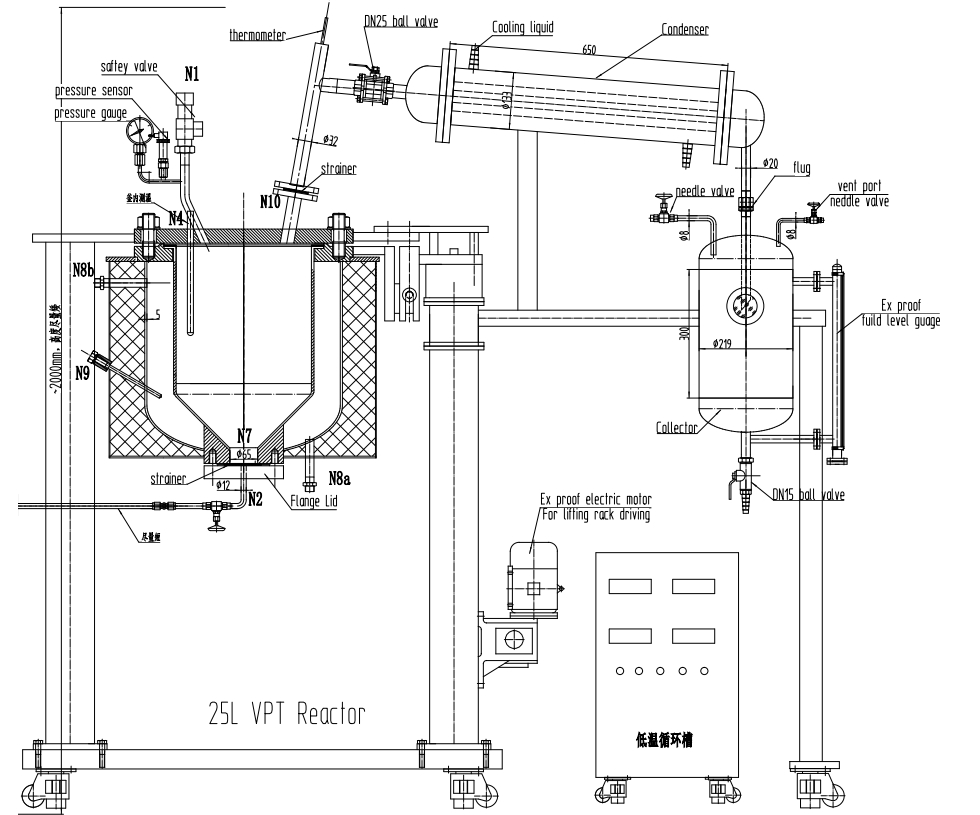

1, Kettle lid ports for valve, pressure gauge, safety valve, explosion-proof pressure sensor, explosion-proof temperature measurement platinum resistance, solid inlet with blind plate and funnel, outlet with blind plate (solid outlet). 2, kettle body, kettle cover and kettle and material contact part of the material material S31603, jacket material carbon steel Q345R, valve material S31603, insulation shell material S30408. The part of condenser contacting with material is made of S31603, and the part not contacting with material is made of S30408. 3, with 10L receiving tank, material S31603, with magnetic flap level meter 1 piece. 4、With temperature preservation and lifting device, kettle cover is fixed, kettle body is lifted electrically and turned over manually; lifting bracket is carbon steel plating. 5、The kettle is loaded with solid material, the bottom flange cover is equipped with filter net. |
