| No. | Parameters | Hymogeneous Reactor | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | / | ||
| 3 | Design pressure（MPa） | ATM | ||
| 4 | Work pressure（MPa） | ATM | ||
| 5 | Design temperature（℃） | 300 | ||
| 6 | Work temperature（℃） | 250 | ||
| 7 | Material | Carbon steel | ||
 |

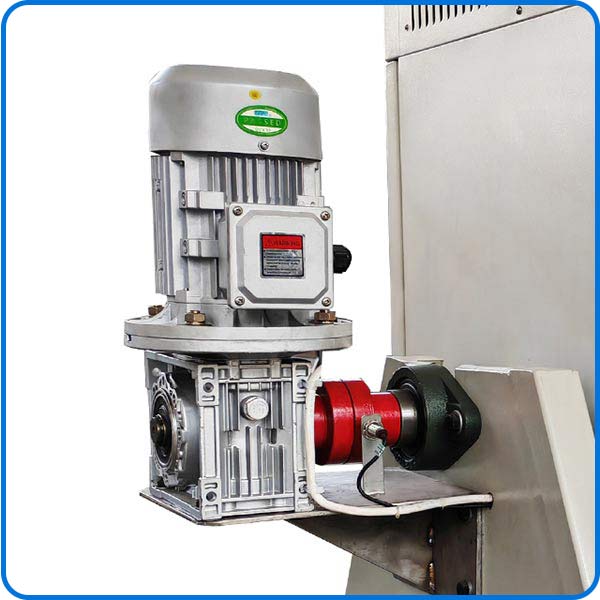

Motor and reducer:
|

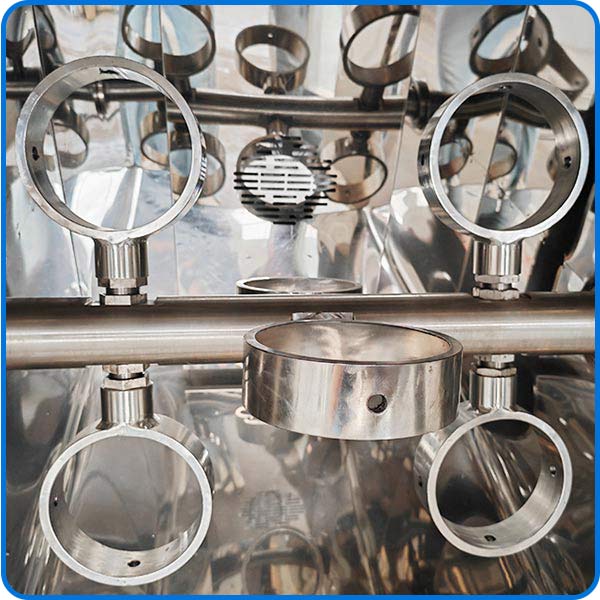

| Fixture loops: The loops are used to fix the vessels.
|
 |
 |

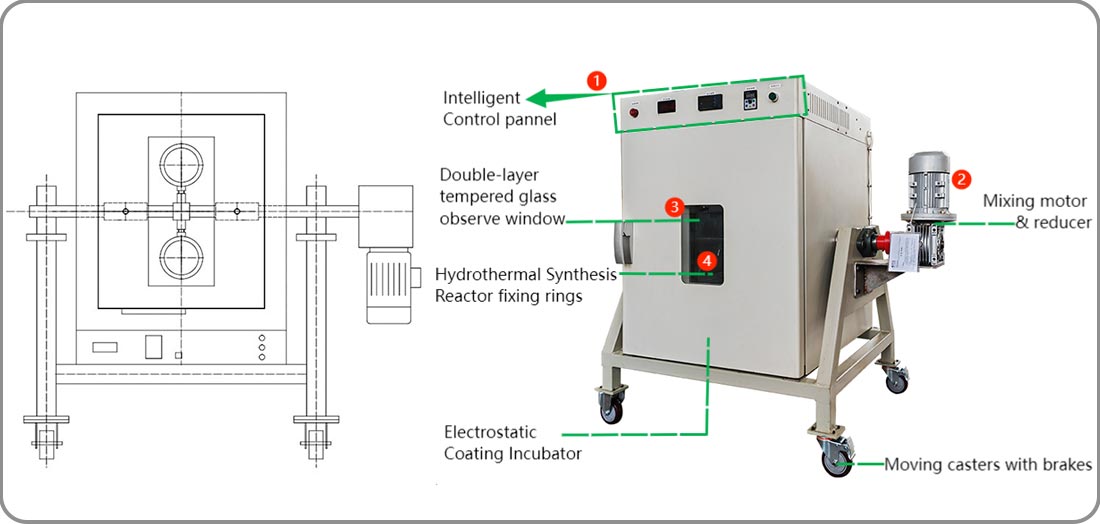

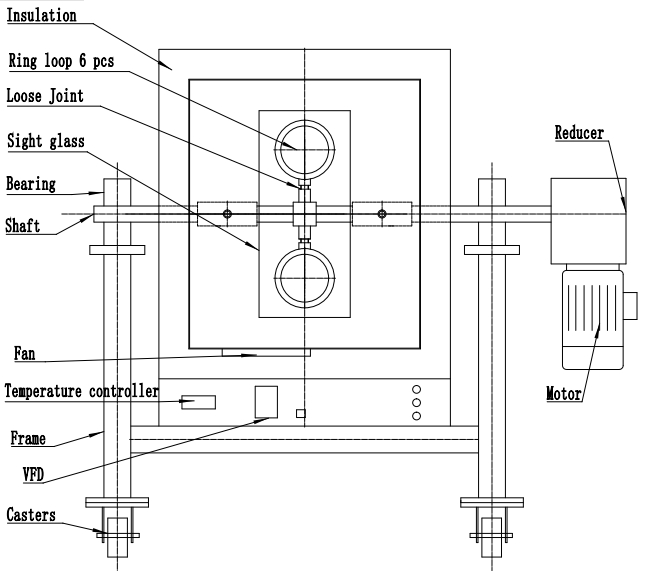

Other functions of the small rotation equipment: 1) The sight glass is using double layer harden glass. It is strong enough to withstand the emission force by the fly parts in case. 2) Gas vent: There is fan installed under the case, so to vent the gas. 3) Controller: The controller could be automatic or semi-automatic, which is customizable. The totating speed and temperature could be controlled by it. 4) Movable: There are four tundles installed under the rack. The tundles are customizable. |

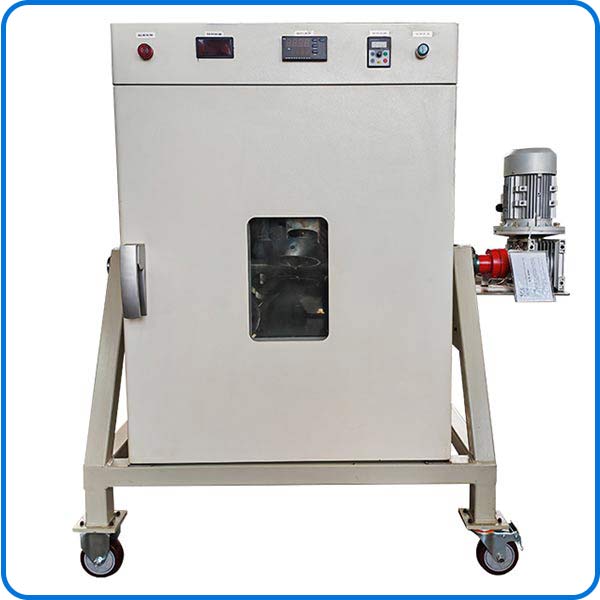

| Name | 6 Vessel Rotary Reactor ( 1 L) up to 300°C at ATM | ||
| Model Number | WHGCM-VRR 1000-6 | ||
| Application | Rotating the Hydrothermal Synthesis Vessels | ||
| Manufacture Time | 20 work days | ||
| Design pressure (MPa) | ATM | Design temperature ( °C) | 300 |
| Working pressure(MPa) | ATM | Working temperature ( °C) | 250 |
| Motor power | 0.75KW | Heating power | 3.7KW |
| Speed (rpm) | 0 to 80 | Heating mode | electric heating |
| Capacity ( number of fixed ring) | 6 | materials | Carbon steel |
| Design life ( Years) | 10 |
 |
Pressure vessels homogeneous reactor 1, Over-temperature power failure, alarm indication system. When the temperature exceeds the set upper limit instrumentation automatically cut off the power , buzzer alarm. 2, High temperature silicone sealing strips, with locking type adjustable door locks. 3, The case door is equipped with double-layer tempered glass. 4, Case shell is treated with electrostatic spraying technology processing. 5, Deployed with VFD. |
|
