| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 2 | ||
| 3 | Design pressure（MPa） | 3 | ||
| 4 | Work pressure（MPa） | 2.5 | ||
| 5 | Design temperature（℃） | 250 | ||
| 6 | Work temperature（℃） | 200 | ||
| 7 | Material | S22053 | ||
| 8 | Stirring speed | 400-800 | ||
| 9 | Motor power (W) | 250 | ||
 |

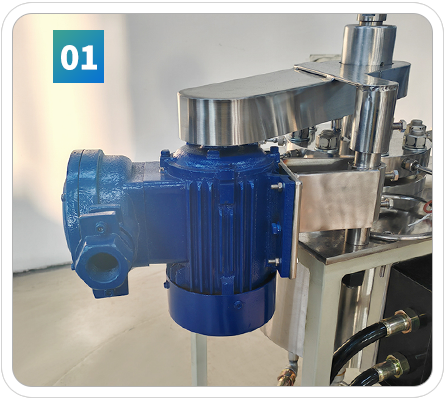

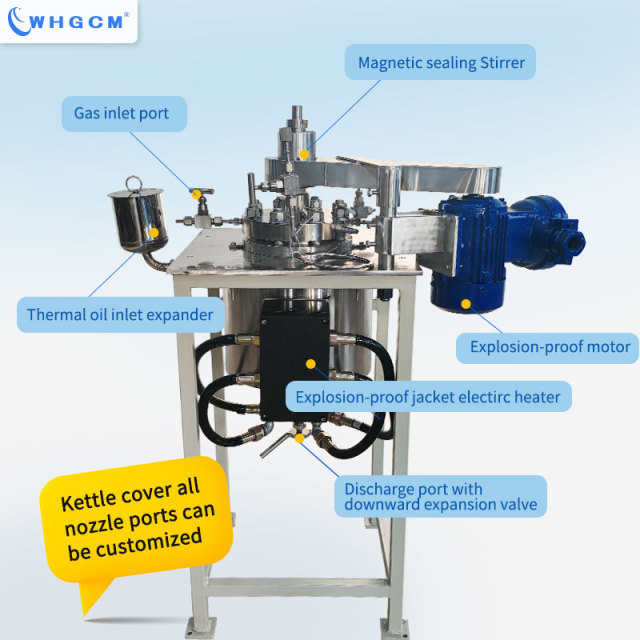

Motor
-This is side-mounted motor connect with
magnetic sealing stirrer coupler. -Explosion-proof dIIBT4 grade -With belt guard cover -The quality is stable and reliable Magnetic sealing couple -Core technology Static seal, magnetic transmission.
|
|
Magnetic sealed stirrer coupler Magnetic sealing couple
-Core technology Static seal, magnetic transmission.

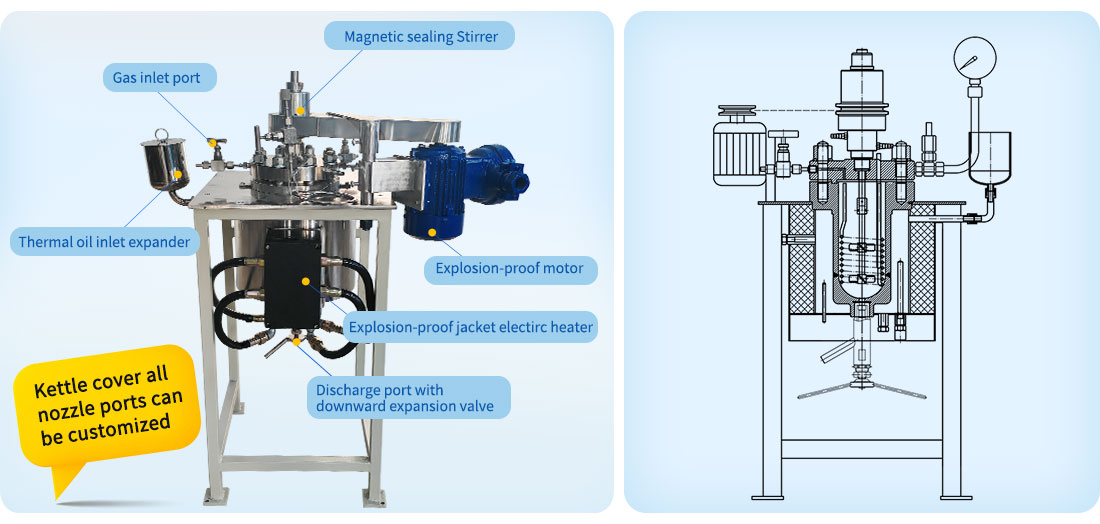

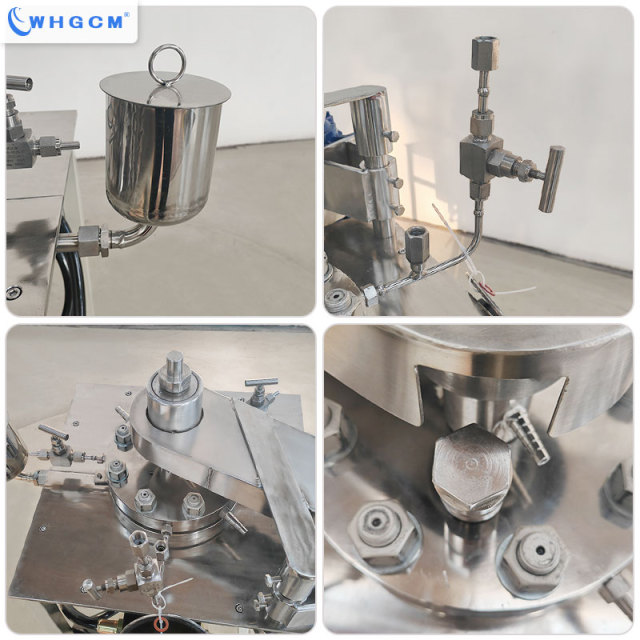

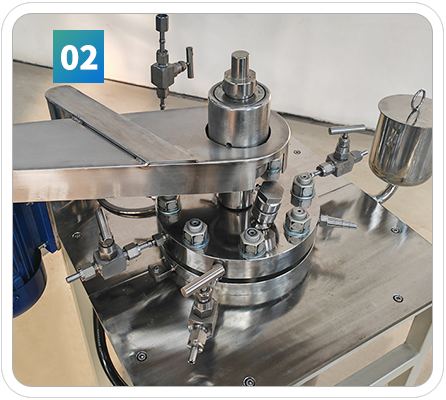

Kettle cover nozzle ports -Pressure gauge & Rupture disc ports -Kettle inner temperature measuring port -Material feeding port -Vent port -Gas inlet port Note: All nozzle ports can be customized |
 |
 |

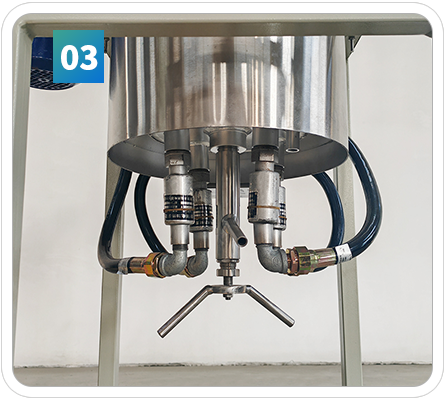

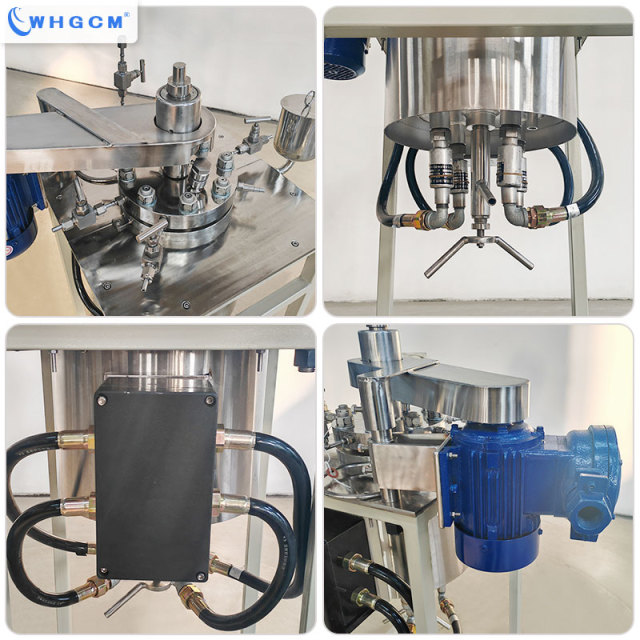

Kettle bottom
-Discharge port with downward expansion valve -Jacket drain port
-Jacket electirc heater
|
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25-50 |
| Working pressure |
Negative pressure -0.1~40 MPa
|
Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa |
| Working temperature | 0-1500℃ | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power (KW) | 0.8~1 | 1-3 | 3-6 | 4-9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Charging type | Charging from above, discharging from below or above. | |||
| Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal. | |||
| Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy,etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. |
|||
| Controller Device |
Equipped with automatic or programmed PlD or PLC to achieve:
Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control;
Flow display and control; Valve open/close control, etc.
|
|||
