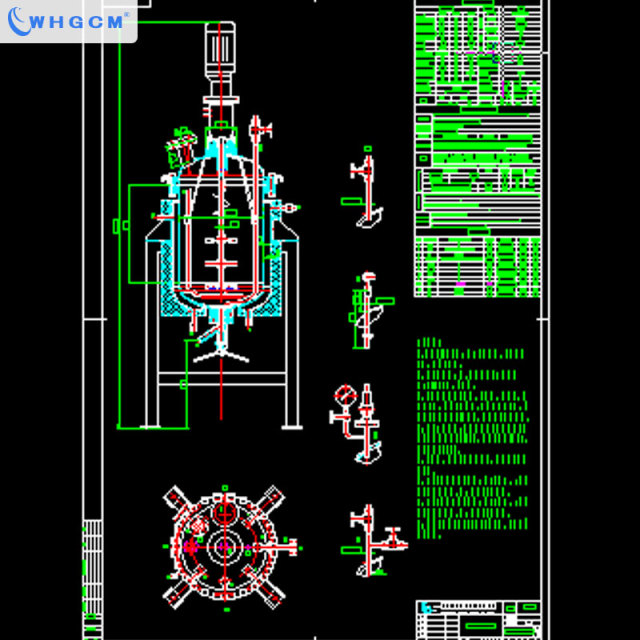

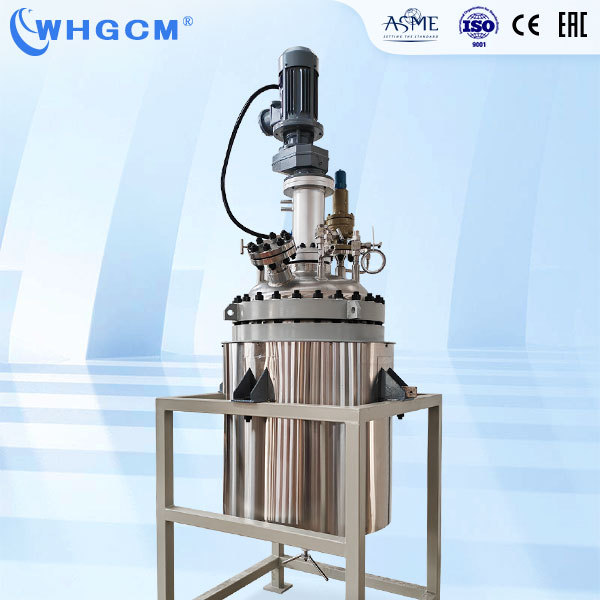

| No. | Parameters | Tank | ||
| 1 | Full volume（L） | 280 | ||
| 2 | Work volume（L） | 200 | ||
| 3 | Design pressure（MPa） | 3 | ||
| 4 | Work pressure（MPa） | 2.5 | ||
| 5 | Design temperature（℃） | 200 | ||
| 6 | Work temperature（℃） | 170 | ||
| 7 | Material | S31603,16Mn | ||
| 8 | Stirring speed | 0~400 | ||
| 9 | Motor power (KW) | 3 | ||
 |

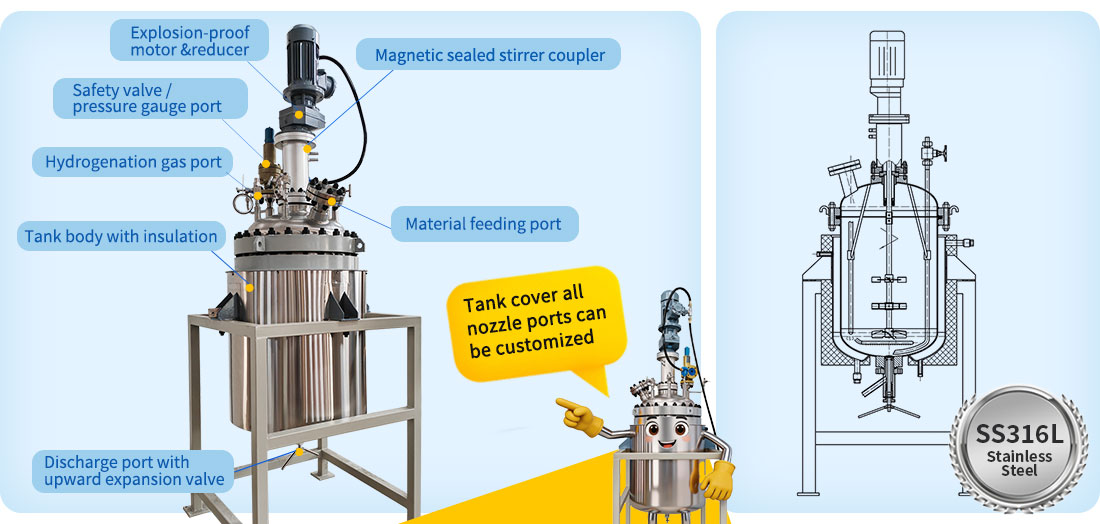

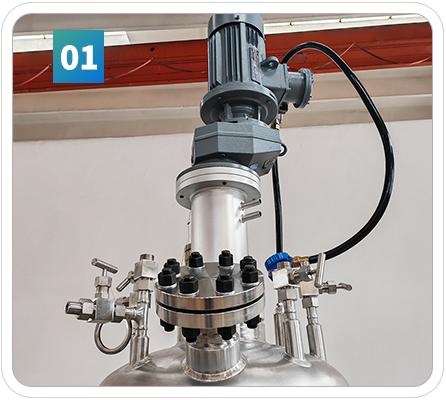

Ex Stirrer motor
This is in-line mounted explosion-proof motor connected with magnetic sealing stirrer coupler Tank cover all nozzle ports can be customized as per non-standard requirements. |
|

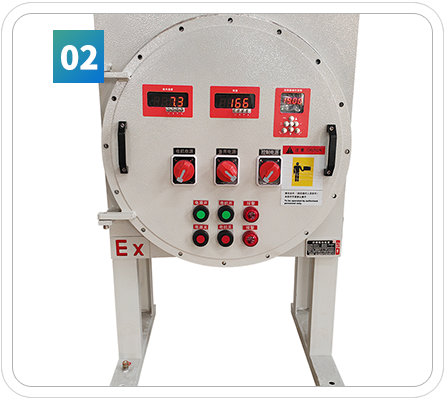

Explosion-proof PID control cabinet
The setting parameters are including temperature, pressure, and stirring speed. The measuing range is setup according to the design temperature. The housing of the controller is made from stainless steel 304 , and it has two handles , so it is easy to carry. |
 |
 |

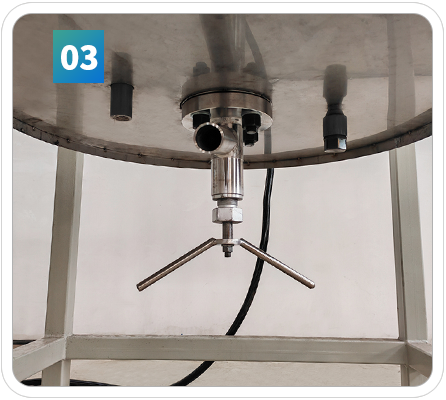

Tank bottom
-Discharge port with upward expansion valve -Jacket drain port -Jacket circulation inlet and outlet Note:above all can be customized as the user's requirements |
| Pilot Reactor Technical Parameters | |||||
| Working Volume (L) | 50 | 100 | 200 | 300 | 500 |
| Structure Type |
Open Style
Connect Kettle Lid and Kettle Body by Bolts and Nuts on Flange
|
||||
| Working pressure | Negative pressure -0.1~20.0 (MPa) | ||||
| Working temperature | -196-500°C | ||||
| Motor power (W) | 1.1 | 1.5 | 2.2 | 3 | 4 |
| Heating power (KW) | 9 | 15 | 18 | 18 | 36 |
| Heating type | Direct Electric Heating Fumace, Electric Heater with Thermal Oil Bath, Jacket Circulation with Thermal oil/steam/melt salt | ||||
| Discharging type | Discharging from bottom, sampling from kettle lid. | ||||
| Mixing Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. | ||||
| Stirring type | Impeller, Paddle, Anchor, Turbine, Self-suction, Frame, Screw, Belt, or as per customer's request. | ||||
| Seal type | Magnetic Seal, Mechanical Seal, Packing Seal. | ||||
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. | ||||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L,SUS321, SUS310, as well as titanium, nickel. zirconium, hastelloy.etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | ||||
| Kettle lid open port | Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc(safety valve) port, Cooling water inlet/outlet port(or Visual Glass Port and other port according to working pressure). | ||||
| Controller Device |
Equipped with auto PlD or PLC controller,Display & control Mixing Speed and Heating Temperature, self-adjustment function,temperature control accuracy +1°C;
Control other instruments, like flow meter, level meter, valves according to reaction
process.
|
||||
