| No. | Parameters | Kettle | Jacket | |
| 1 | Full volume（L） | 3.9 | ||
| 2 | Work volume（L） | 3 | ||
| 3 | Design pressure（MPa） | 1.0 | 0.2 | |
| 4 | Work pressure（MPa） | 0.5 | 0.1 | |
| 5 | Design temperature（℃） | 500 | 500 | |
| 6 | Work temperature（℃） | 450 | 450 | |
| 7 | Material | stainless steel S304 | stainless steel S304 | |
 |

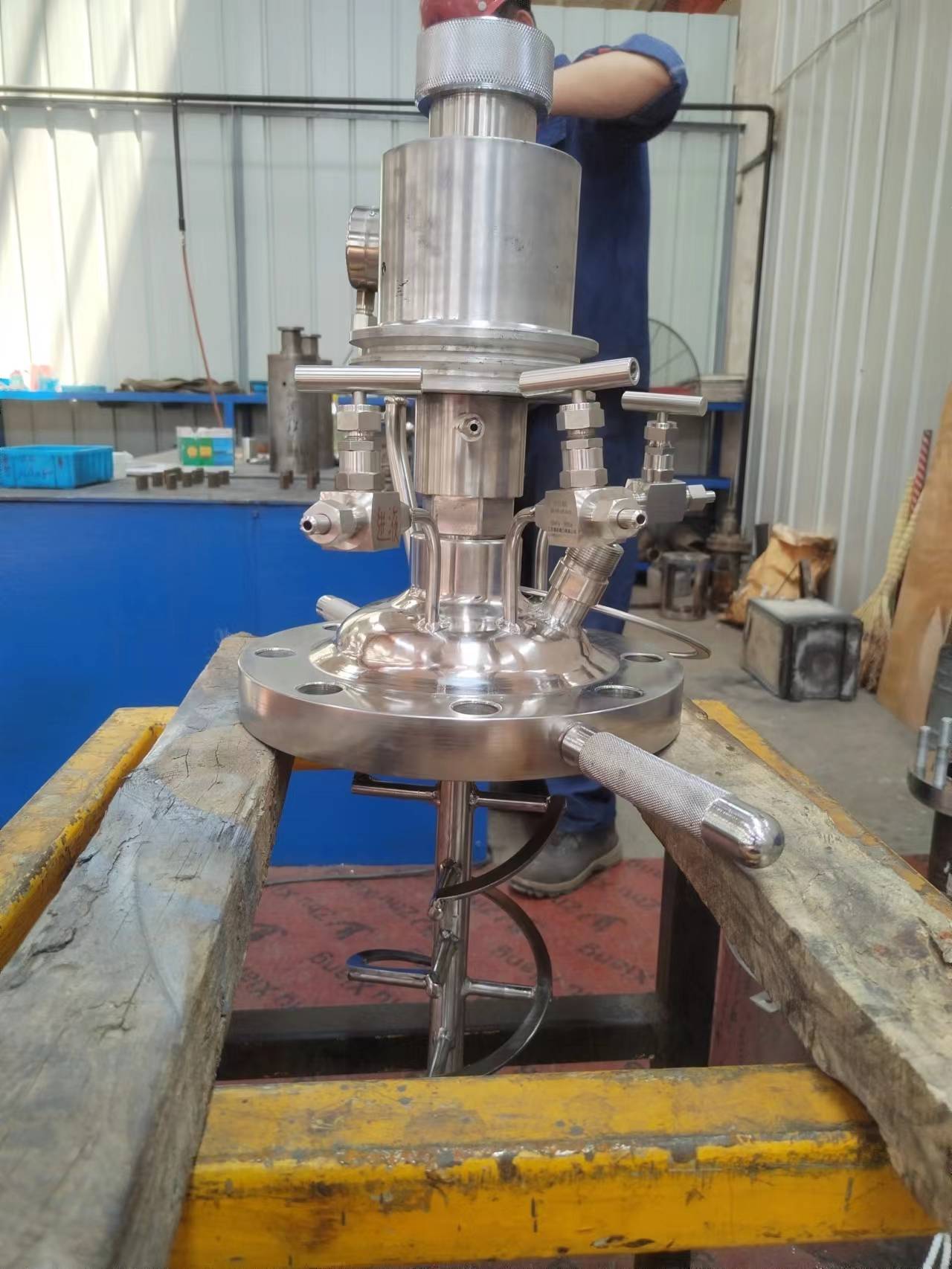

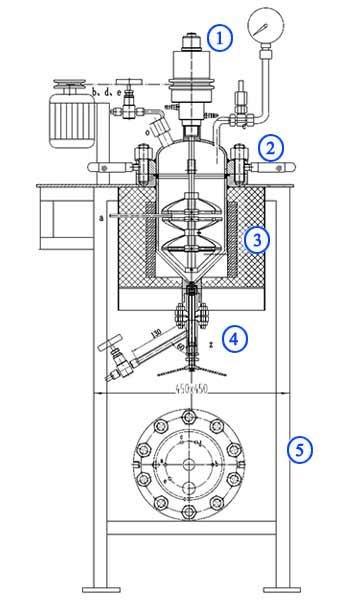

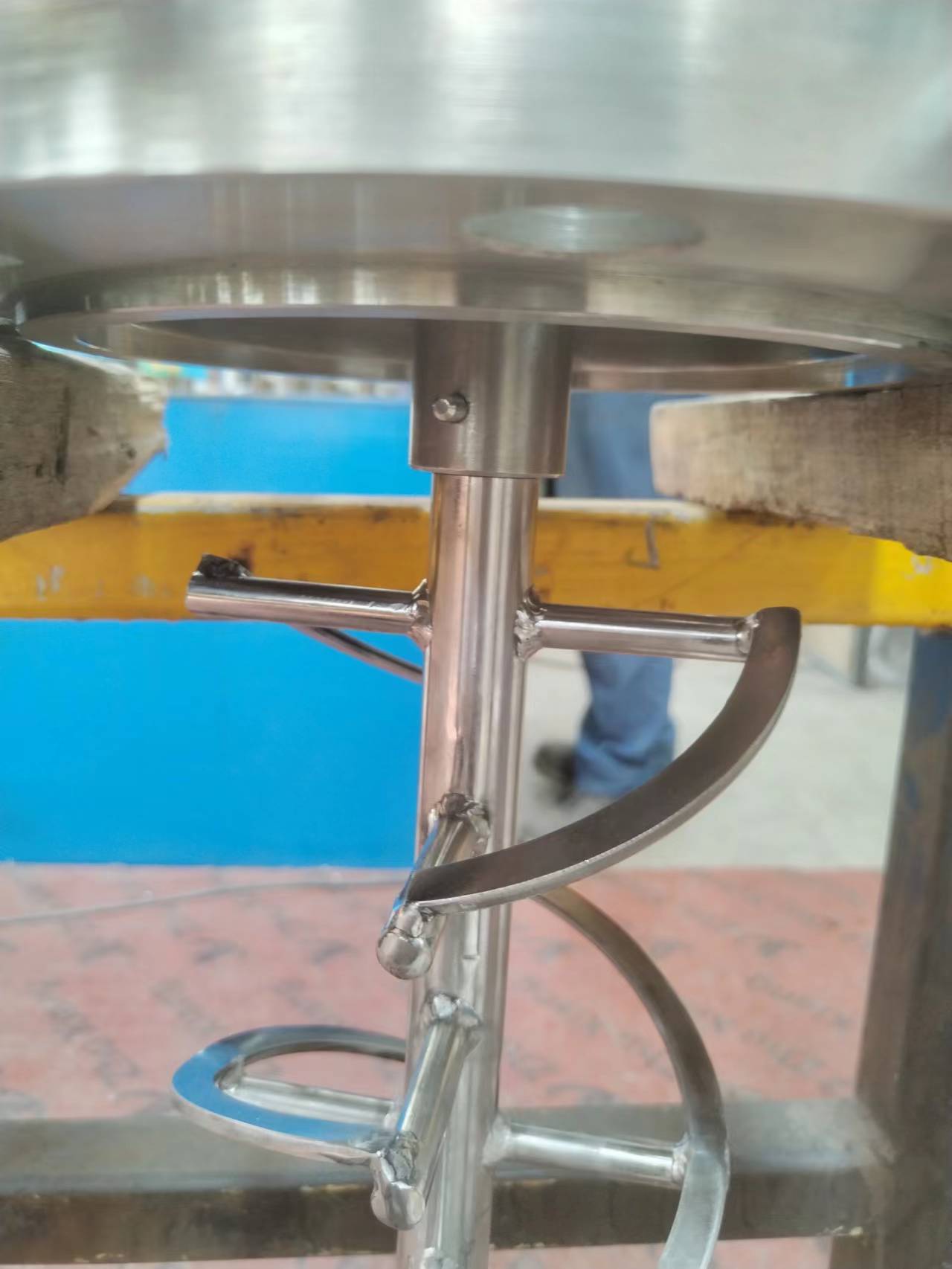

1, Stirrer

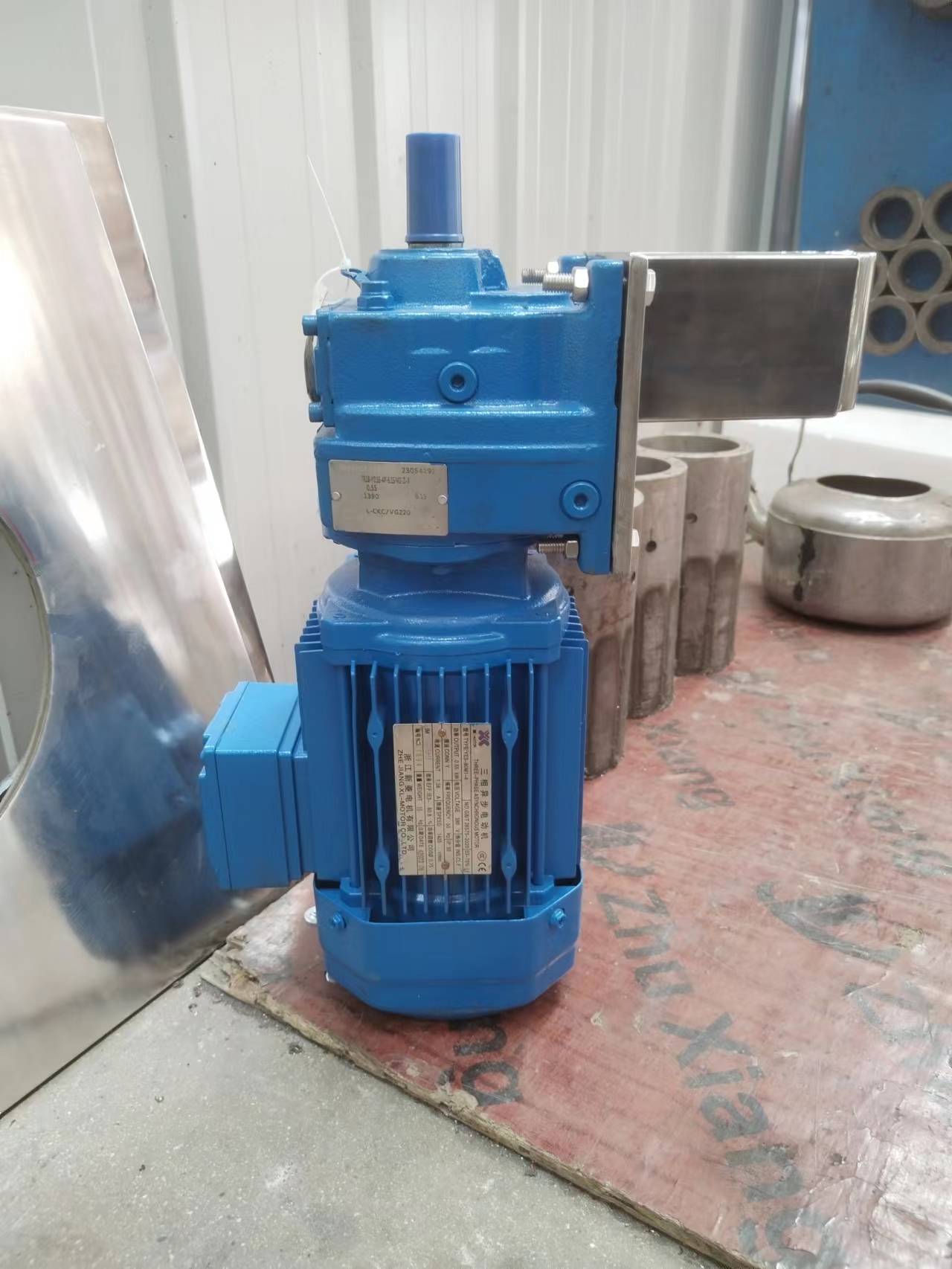

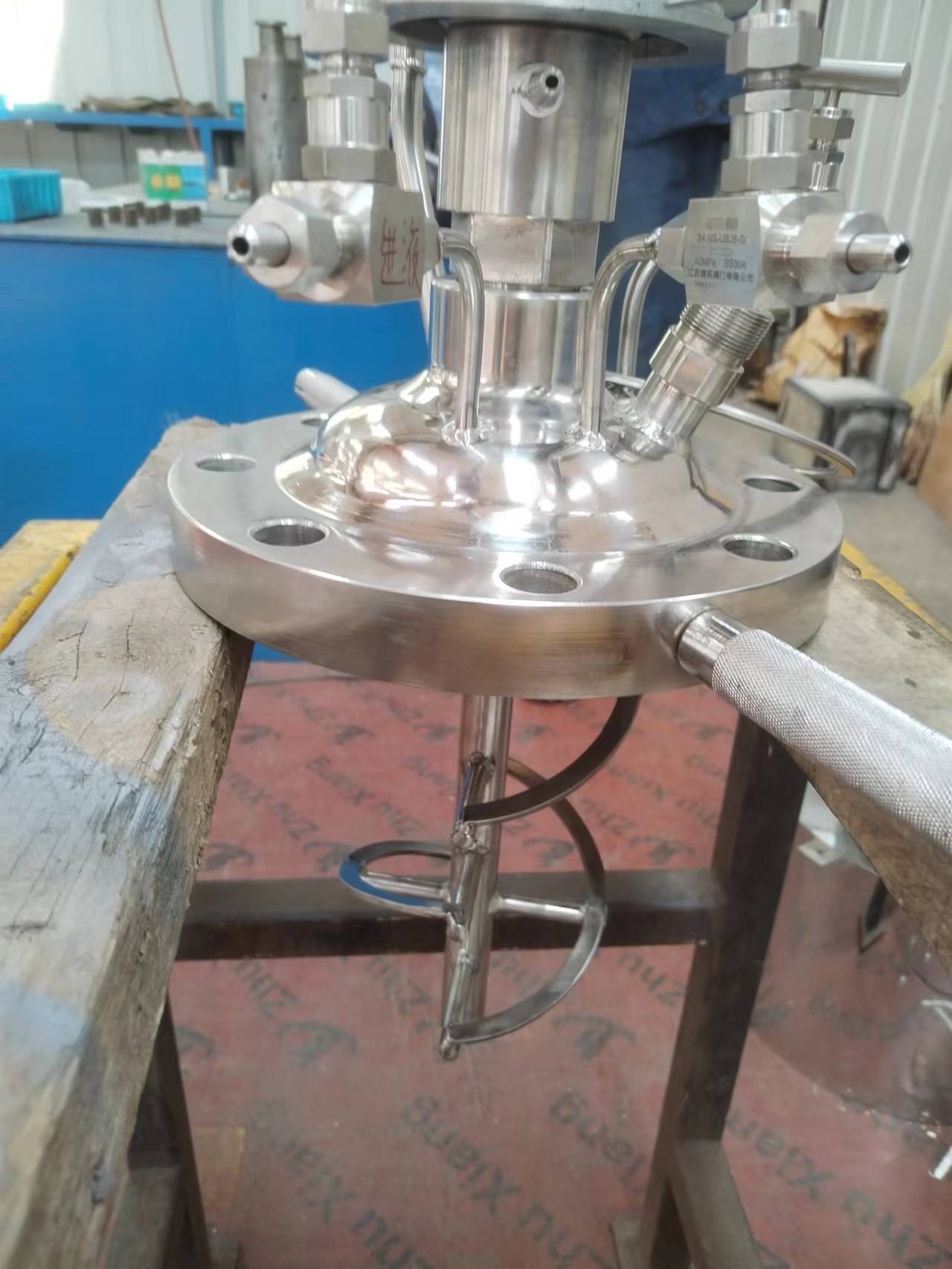

Motor , explosion proof. Magnetic coupler, lined with stainless steel 304 for cooling. S304 axis, diameter 40mm. Axial coupler. Sprial ribbon blet blade with conical bottom, material is S304. 2, Reactor head

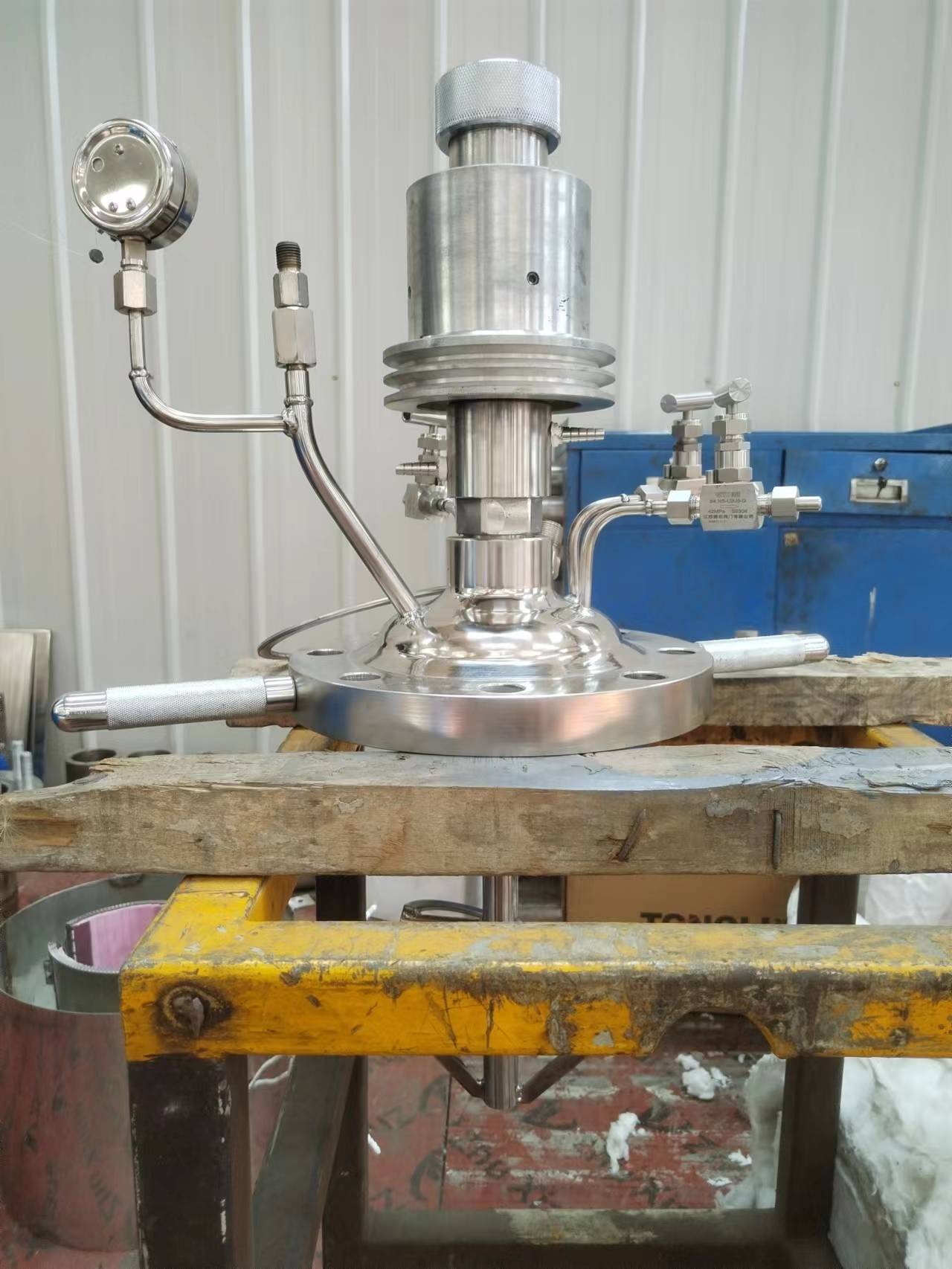

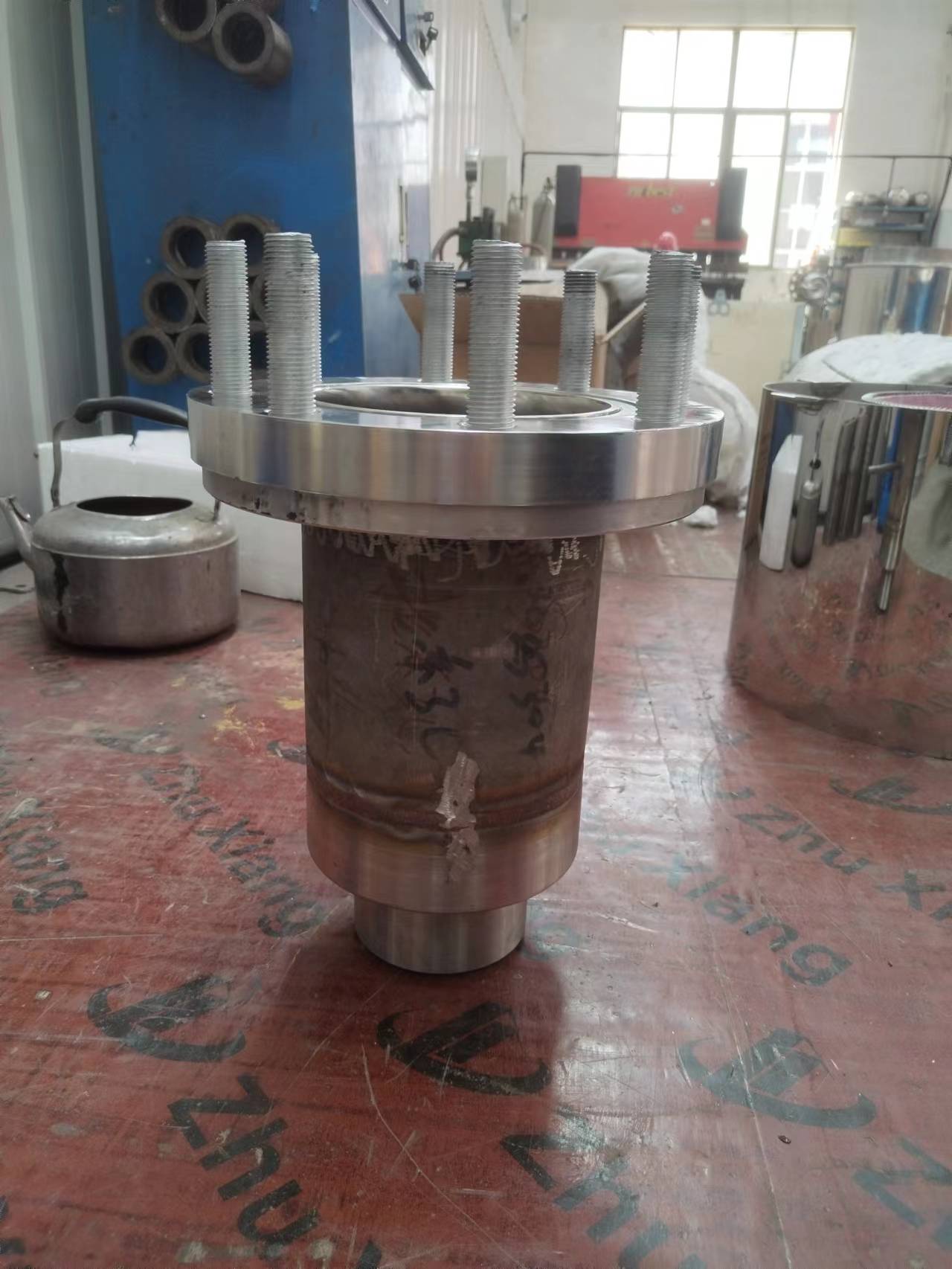

With carbon steel handles. Material is stainless steel. 3, Reactor body

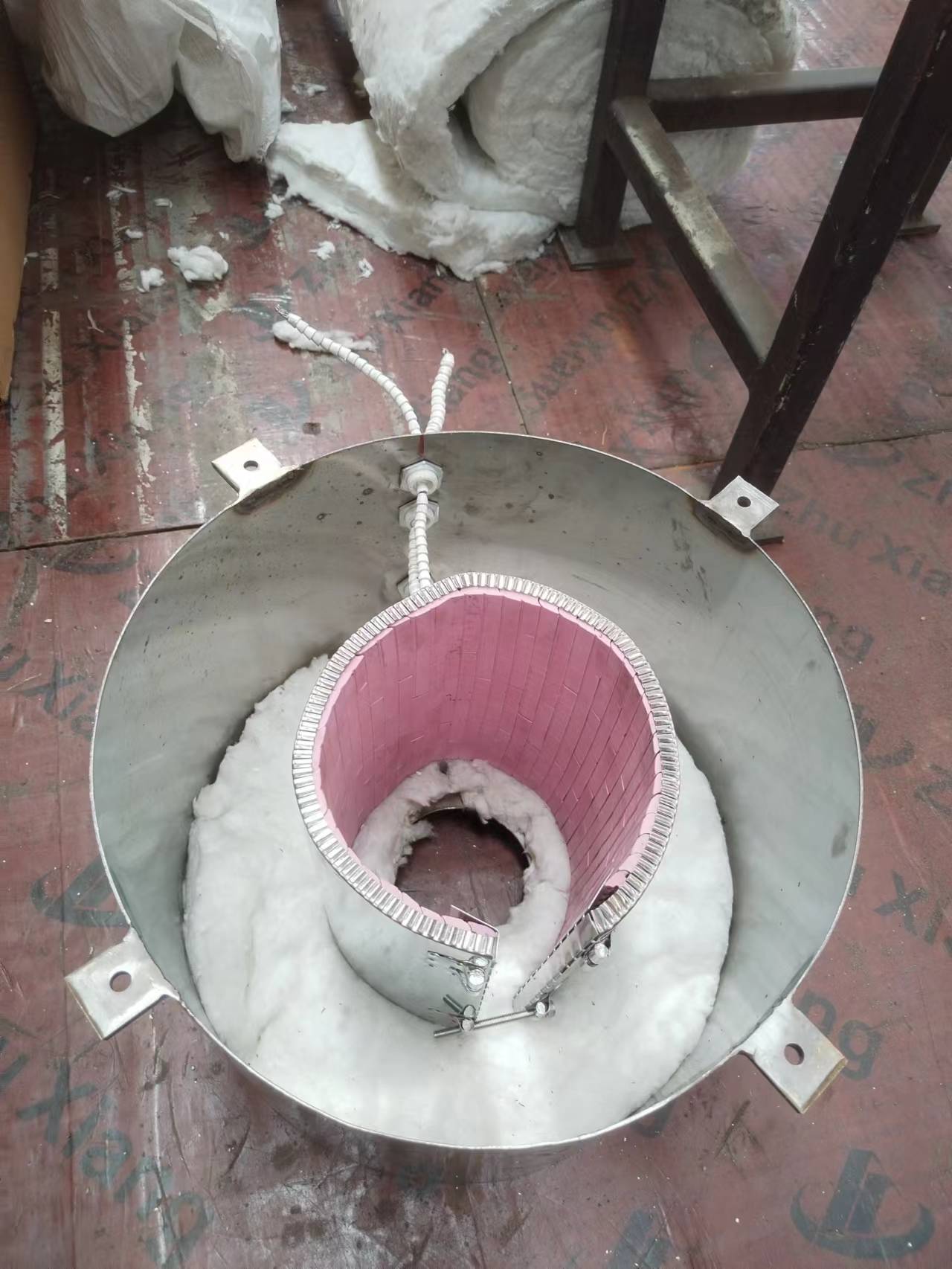

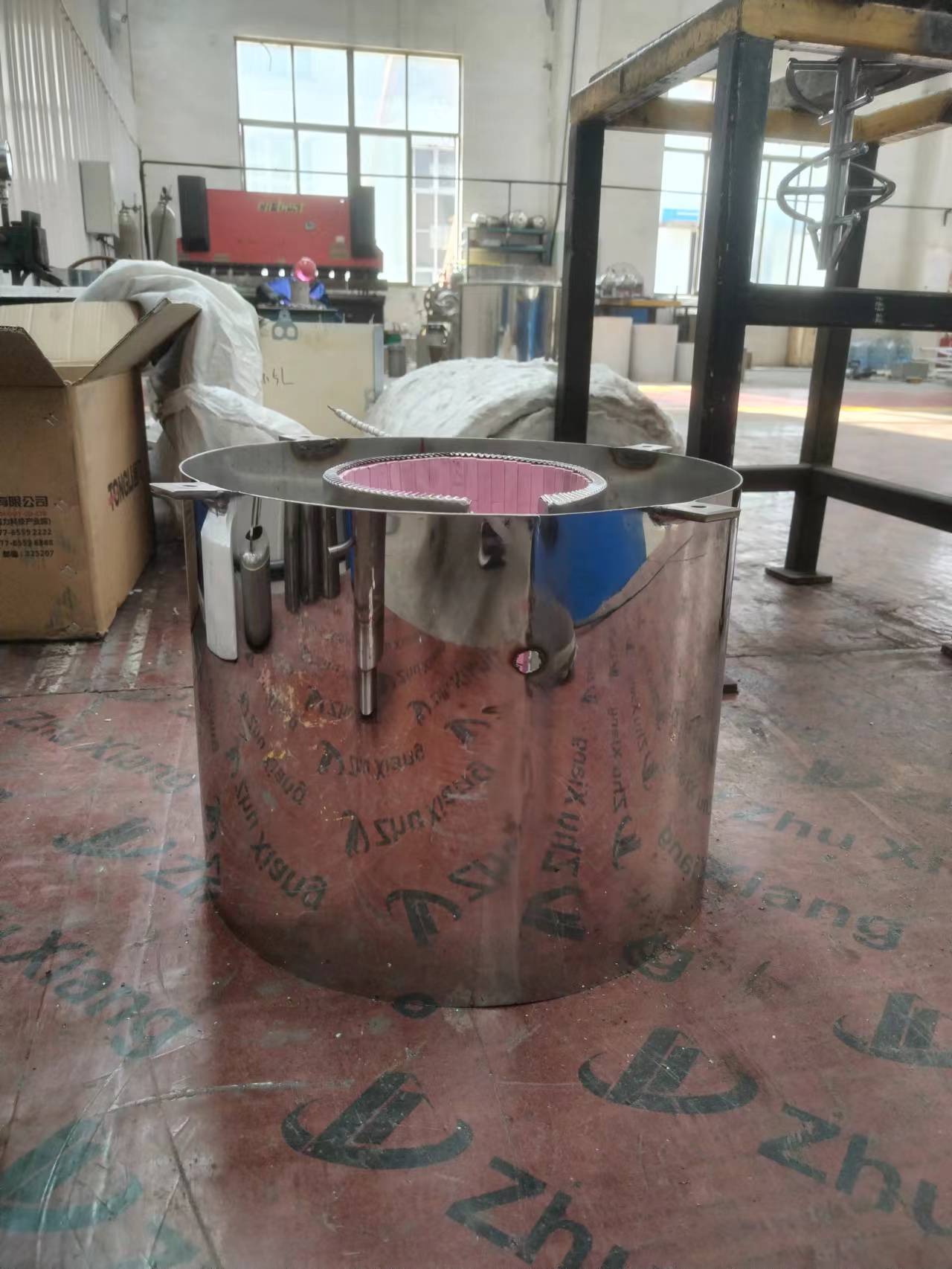

Jacketed. Using electric heater. 4, Discharge port
It is assembled on a long neck flange, with the stainless steel 304 lined. The inside of valve is S304 lined too. Other accessories: Rupture disc
Pressure gauge
Thermalmeter.
Rack. |
|
 |
 |
 |
 |
 |
 |
 |
 |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
