00621

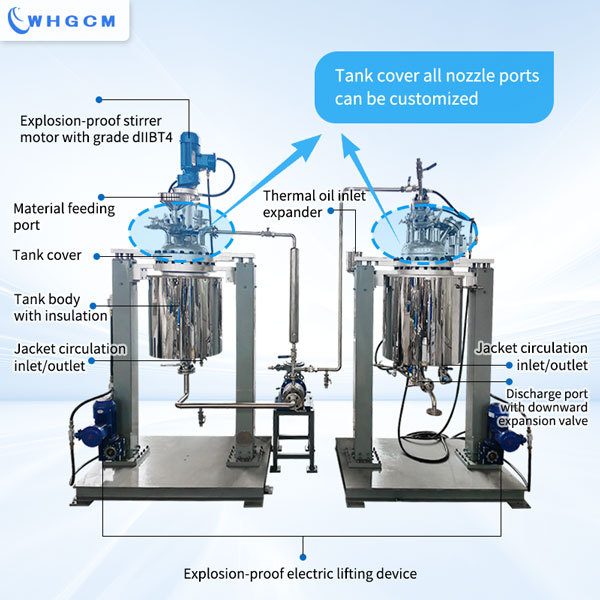

 | Stirrer mechanism & Tank cover -Magnetic coupling sealed stirrer -Core technology: Static sealing, magnetic transmission-frequency conversion speed regulation Note: all nozzle ports & fitting type can be customized. |
| Electric lifting -Explosion-proof electrical lifting device -Tank body is fixed and Tank cover is electrically lifted |  |
 | Tank bottom -Discharge port with ball valve -Jacket thermal oil circulation heating inlet/outlet |
| No. | Parameters | 70L Dosing Reactor | 65L Crystallisation Reactor |
| 1 | Full volume（L） | 98 | 85 |
| 2 | Work volume（L） | 70 | 65 |
| 3 | Design pressure（MPa） | 0.8~1 | -0.1~6 |
| 4 | Work pressure（MPa） | ATM | 5 |
| 5 | Design temperature（℃） | 100 | 250 |
| 6 | Work temperature（℃） | 60~70 | 200 |
| 7 | Material | SS316L、Q345R | SS316L、Q345R |
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
