| No. | Parameters | Tank | ||
| 1 | Full volume（L） | 18000 | ||
| 2 | Work volume（L） | / | ||
| 3 | Design pressure（MPa） | 0.09 | ||
| 4 | Work pressure（MPa） | 0.03~0.06 | ||
| 5 | Design temperature（℃） | 100 | ||
| 6 | Work temperature（℃） | 80 | ||
| 7 | Material | TA1+Q345R | ||
| 8 | Stirring speed | / | ||
| 9 | Motor power (KW) | / | ||
 |
Manhole
-Regular inspection and maintenance entrance -Safe, convenient and reliable The lid of manhole has one handle, which could be customized as per your request. |

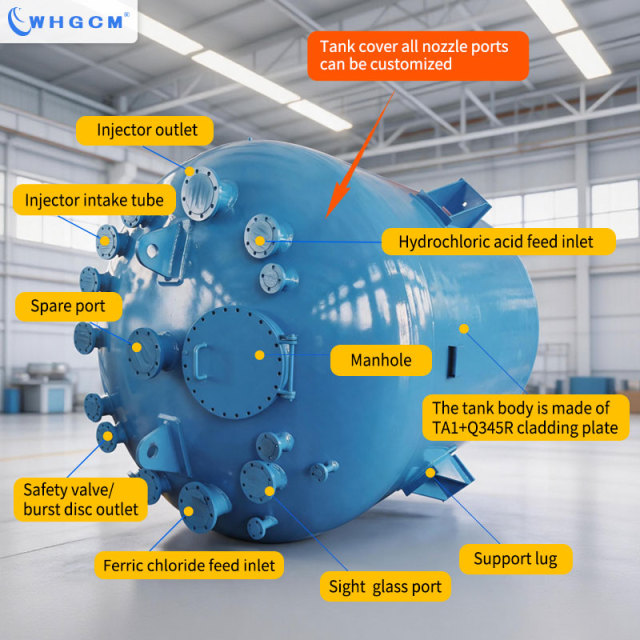

Tank cover nozzle ports
-Hydrochloric acid feed port -Injector bottom port -Safety valve and rupture disc port -spare port -Sight glass port Note:above all can be customized as the user's requirements
|
 |
 |

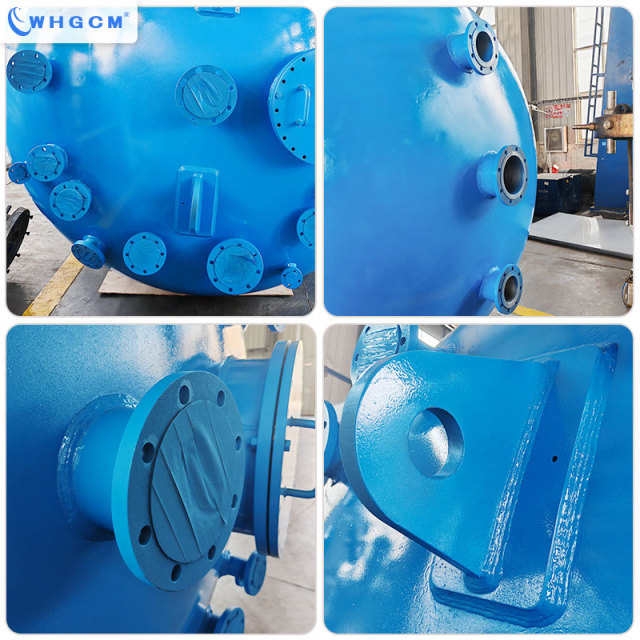

Reactor body The reactor body is mostly made of TA1+Q345R cladding plate. |
| Industrial Reactor Technical Parameters | |||||||
| Art No. |
GSH -1000
|
GSH -2000
|
GSH -3000
|
GSH -5000
|
GSH -8000
|
GSH -10000 | GSH -20000 |
| Work Volume |
1000L
|
2000L
|
3000L
|
5000L
|
8000L
|
10000L
|
20000L
|
| Structure Type | Close type (with man hole) | ||||||
| Design Pressure (Mpa) |
Negative 0.1-15
|
Negative
0.1-15 |
Negative
0.1-15 |
Negative
0.1-10 |
Negative
0.1-10 |
Negative
0.1-10 |
Negative
0.1-10 |
| Design temperature | -196-300℃ | -196-250℃ | |||||
| Mixing Speed | 0-800 r/min | 0-500 r/min | |||||
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. | ||||||
| Motor Power |
5.5 KW
|
11 KW
|
15 KW
|
22 KW
|
/ | ||
| Heating Power |
48 KW
|
60 KW
|
75 KW
|
90 KW
|
/ | ||
| Heating Style | Far infrared electric heating, electric heater with thermal oil bath, jacket circulation with thermal oil/steam/melt salt | Jacket circulation with thermal oil/steam/melt salt | |||||
| Discharging Style | Discharging from bottom, or sampling from kettle lid | ||||||
| Mixer Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. | ||||||
| Mixing Style | Impeller, paddle, anchor, turbine, self-suction style, or as per customer's request. | ||||||
| Seal Type | Magnetic Seal / Mechanical Seal / Packing Seal | ||||||
| Reactor material | Tank inner contacting materials option: All kinds of stainless steel, such as SS304, SS316L,SS321,310S,S32205, and Titanium,Hastelloy,Zirconium,Nickel etc., as the reaction actual needed. | ||||||
| Tank Lid
Open Port
|
Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc (safety valve) port, Man hole (Hand hole), Cooling water inlet/outlet port
(or Visual Glass Port and other port according to working pressure)
|
||||||
| Controller | Equipped with automatic PID or PLC controller, temperature control accuracy ±1℃; Can display & control Mixing Speed and Heating Temperature; Can adjust heating power for constant temperature, also has self-adjustment function. | ||||||
| Other Accessories | If the user have other special requirements on kettle cover, kettle body openning, internal structure, high and low pressure, stirring paddle and other supporting device (such as refluxing unit, condenser, constant feeding tank, collector, etc) we can manufacture ODM reactors according to users' requests. | ||||||
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
