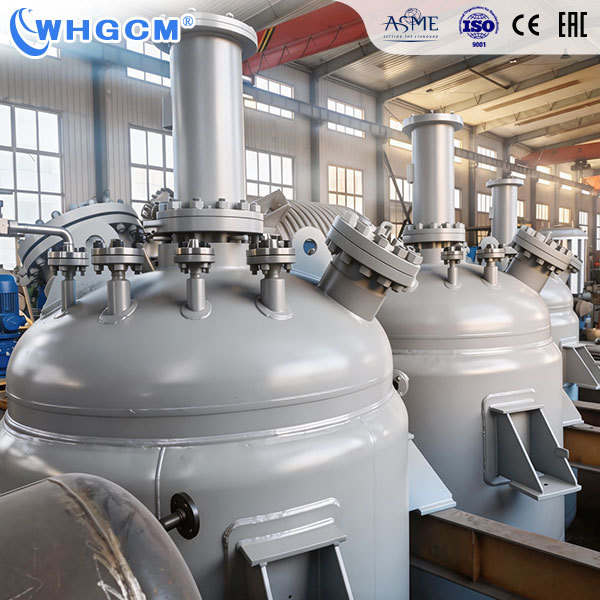

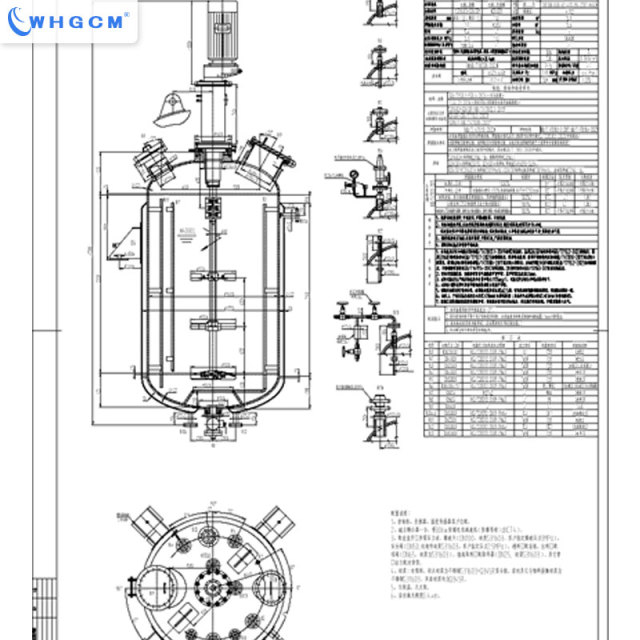

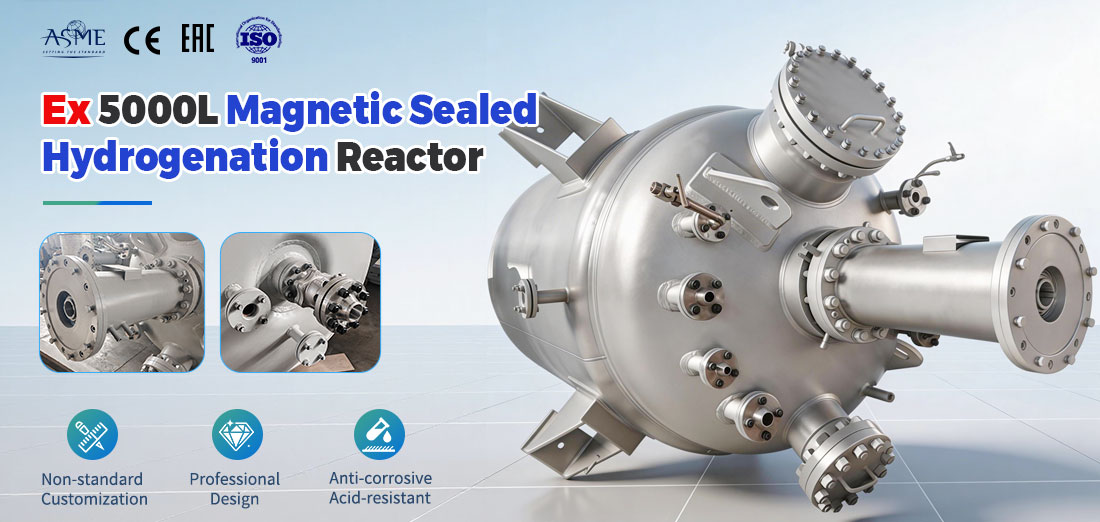

| No. | Parameters | Tank | ||
| 1 | Full volume（L） | 5590 | ||
| 2 | Work volume（L） | 5000 | ||
| 3 | Design pressure（MPa） | 3.6 | ||
| 4 | Work pressure（MPa） | 2.0 | ||
| 5 | Design temperature（℃） | 150 | ||
| 6 | Work temperature（℃） | 100 | ||
| 7 | Material | SS316+Q345R | ||
| 8 | Stirring speed | 0~299 | ||
| 9 | Motor power (KW) | 30KW（dIICT4） | ||
 |

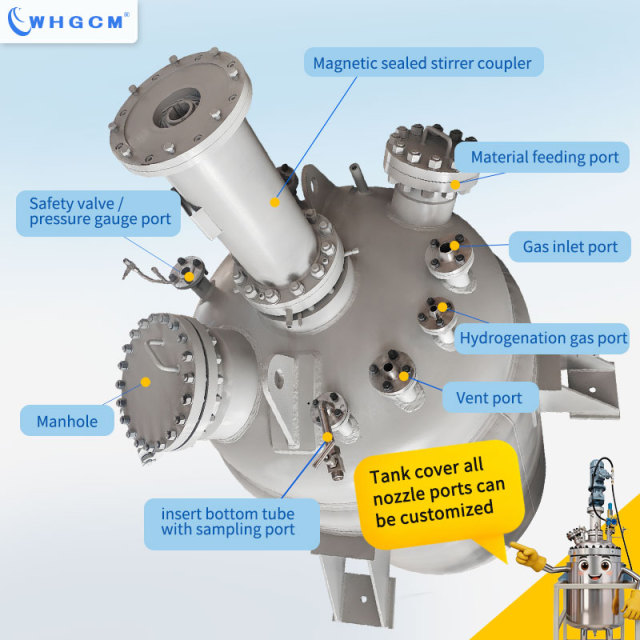

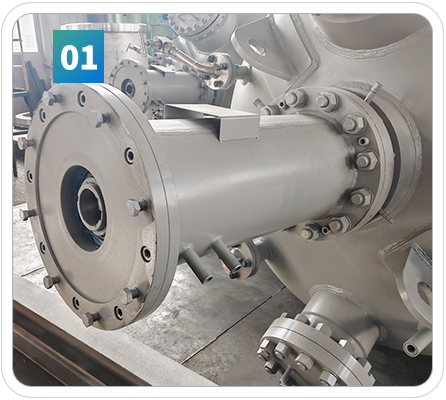

Magnetic sealed stirrer coupler -Core technology: Static sealed,magnetic transmission
-100% ZERO leakage
-Coupler inner with cooling system, avoid coupler inner overheating
|

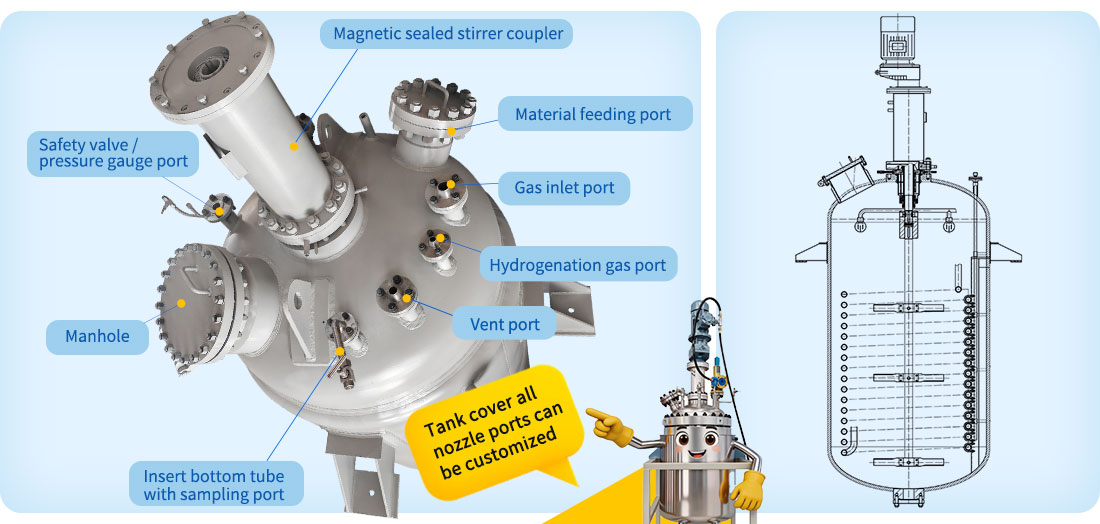

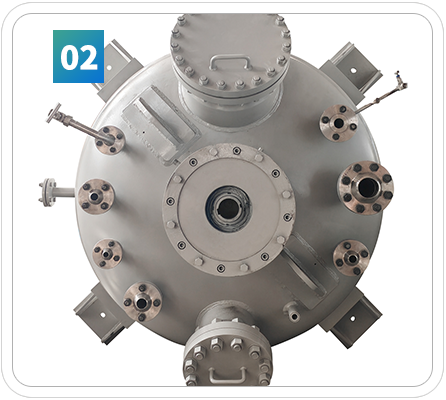

Tank cover nozzle ports -Bottom sampling port with sampler
-Safety valve/Pressure Gauge Port -Material feeding port -Manhole -Vent port -Gas inlet port
-Coil inlet/outlet port -Hydrogen inlet with gas distributor Note: all nozzle ports & fitting type can be customized
|
 |
 |

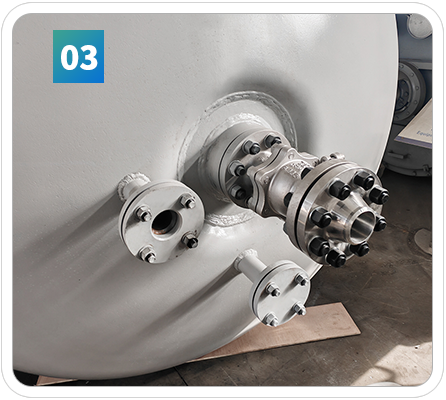

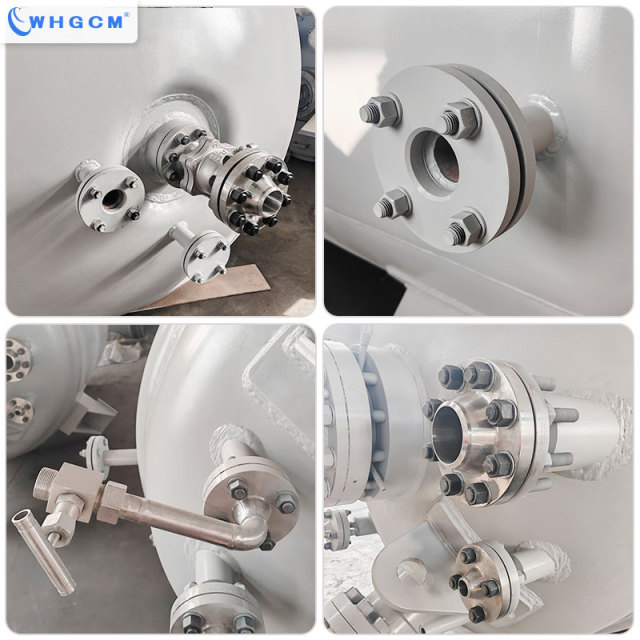

Tank bottom -Discharge port with ball valve -Jacket drain port
-Jacket inlet and outlet |
| Magnetic Seal Industrial Reactor Technical Parameters | |||||||
| Art No. |
GSH -1000
|
GSH -2000
|
GSH -3000
|
GSH -5000
|
GSH -8000
|
GSH -10000 | GSH -20000 |
| Work Volume |
1000L
|
2000L
|
3000L
|
5000L
|
8000L
|
10000L
|
20000L
|
| Structure Type | Close type (with man hole) | ||||||
| Design Pressure (Mpa) |
Negative 0.1-15
|
Negative
0.1-15 |
Negative
0.1-15 |
Negative
0.1-10 |
Negative
0.1-10 |
Negative
0.1-10 |
Negative
0.1-10 |
| Design temperature | -196-300℃ | -196-250℃ | |||||
| Mixing Speed | 0-800 r/min | 0-500 r/min | |||||
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. | ||||||
| Motor Power |
5.5 KW
|
11 KW
|
15 KW
|
22 KW
|
/ | ||
| Heating Power |
48 KW
|
60 KW
|
75 KW
|
90 KW
|
/ | ||
| Heating Style | Far infrared electric heating, electric heater with thermal oil bath, jacket circulation with thermal oil/steam/melt salt | Jacket circulation with thermal oil/steam/melt salt | |||||
| Discharging Style | Discharging from bottom, or sampling from kettle lid | ||||||
| Mixer Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. | ||||||
| Mixing Style | Impeller, paddle, anchor, turbine, self-suction style, or as per customer's request. | ||||||
| Seal Type | Magnetic Seal | ||||||
| Contact Material | Contacting material mainly use Cladding Plate of Stainless Steel SS304+Mild Steel Q345R, SS316L+Q345R, SS321+Q345R, or use pure stainless steel; Or use Titanium, Nickel, Zirconium, Hastelloy, Inconel or Monel Cladding Plate, or coating with Teflon PTFE or PPL as per customer request. | ||||||
| Kettle Lid
Open Port
|
Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc (safety valve) port, Man hole (Hand hole), Cooling water inlet/outlet port
(or Visual Glass Port and other port according to working pressure)
|
||||||
| Controller | Equipped with automatic PID or PLC controller, temperature control accuracy ±1℃; Can display & control Mixing Speed and Heating Temperature; Can adjust heating power for constant temperature, also has self-adjustment function. | ||||||
| Other Accessories | If the user have other special requirements on kettle cover, kettle body openning, internal structure, high and low pressure, stirring paddle and other supporting device (such as refluxing unit, condenser, constant feeding tank, collector, etc) we can manufacture ODM reactors according to users' requests. | ||||||
