| No. | Parameters | Kettle | limpet coil/ half-pipe | |
| 1 | Full volume（L） | 7700 | ||
| 2 | Work volume（L） | 6300 | ||
| 3 | Design pressure（MPa） | -0.1~0.28 | 0.7 | |
| 4 | Work pressure（MPa） | -0.1~0.15 | 0.5 | |
| 5 | Design temperature（℃） | 280 | 280 | |
| 6 | Work temperature（℃） | 230 | 230 | |
| 7 | Material | S31603 | S30408 | |
 |

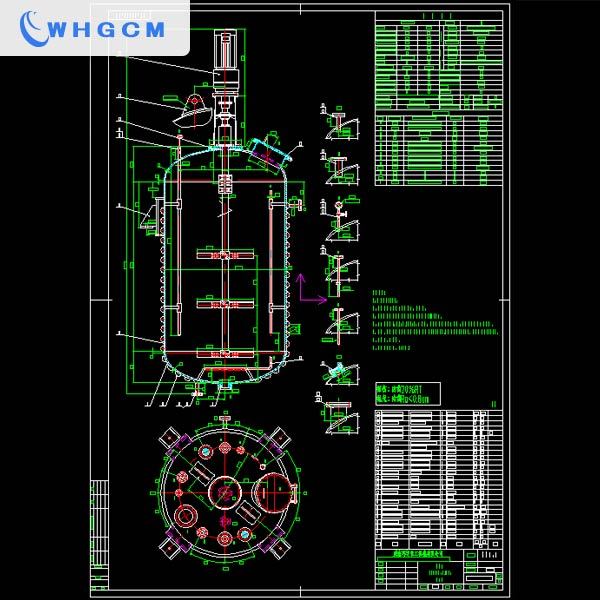

The reactor could be identified easily as it has limpet coil attached outside. Limpet coil: Material: S304. Design temperature: 280°C. Thermal medium: Water steam. Design pressure: 0.7 MPa. Application: Heating. Postion: Ourside welded on the external wall of the kettle cylinder. The limpet coil is a kind of jacket in the reactor designing. It is also called as half pipe jacket, because they coils are made of axial sectioned pipe. Advantages: ᆞ The coils are well welded to the outside wall of the kettel, so that they could withstand high pressure caused the medium inside them. ᆞ Because they are uniform wounded around the cylinder, the limpet coil help to reinforce to the kettle. ᆞ And this kind of display could make the thermal medium heating the kettle as efficient as possible, so it is very popular in the reaction under 400°C. |
| Inlet/outlet ports for water steam: ᆞ The limpet coils can be considered as a circulation heating jacket for the reactor. The size of the half pipe is small. In this case, the diameter of the half pipe is only 44.50mm. So it has not enough room for a heater like normal jacket. ᆞ The ports will be used for charging and discharging the thermal medium. ᆞ As the ports are made in pairs. It is usually just make one pair of the ports. In special occasions, they are made in more pairs, such as 2 pairs or 3 pairs. For this case, it is made into two pairs as per customer's request. Design notice of the limpet coil reactor: ᆞ The limpet coils heat exchange area is disignated by customer. We will design the coil's diameter and the half-pipe's diameter according to the heat exchange area. ᆞ The design temperature is decided by the customer. We will suggest the thermal medium as per the temperature. ᆞ The material of the limpet coil is chosen on the basis of thermal medium's corrosion property. |
 |
| Design pressure (MPa) | Working pressure (MPa) | Design Temperature (℃) | Operating temperature (℃) | |
| kettle | -0.1~0.28 | -0.1~0.15 | 280 | 230 |
| limpet coil/ half-pipe | 0.7 | 0.5 | 280 | 230 |
| inner coil | 0.7 | 0.5 | 280 | 230 |
| Effective volume (L) | stirring mode | stirring speed | Motor power (W) | |
| kettle | 6300 | three-stage paddle | 0~85 | 18.5KW（dIIBT4） |
| Material | sealing manner | corrosion allowance | joint efficiency | |
| kettle | S31603 | magnetic sealing | 1 | 1 |
