| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | / | ||
| 2 | Work volume（L） | 0.5 | ||
| 3 | Design pressure（MPa） | -0.1~0.6 | ||
| 4 | Work pressure（MPa） | -0.1~0.4 | ||
| 5 | Design temperature（℃） | 350 | ||
| 6 | Work temperature（℃） | 300 | ||
| 7 | Material | SS316L | ||
| 8 | Stirring speed | 0~500 | ||
| 9 | Motor power (KW) | 0.75 | ||
 |

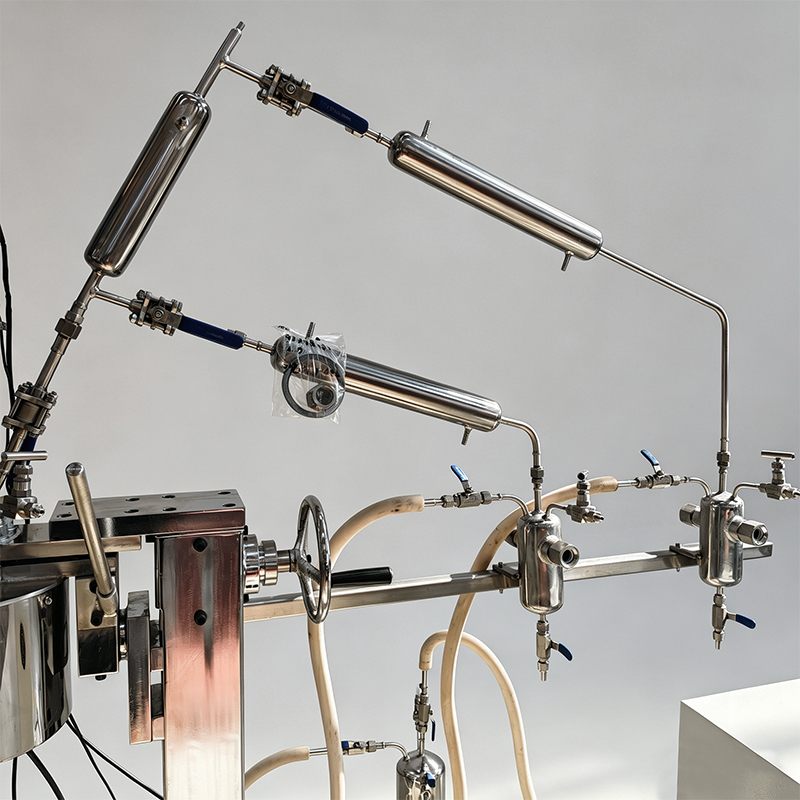

Distillation deviceThe distillation device is including the condensers, receiving tank and buffer tank, that similar with most of the reactor system
with distillation. The only differece are the sizes of each part, which is designated by client. |

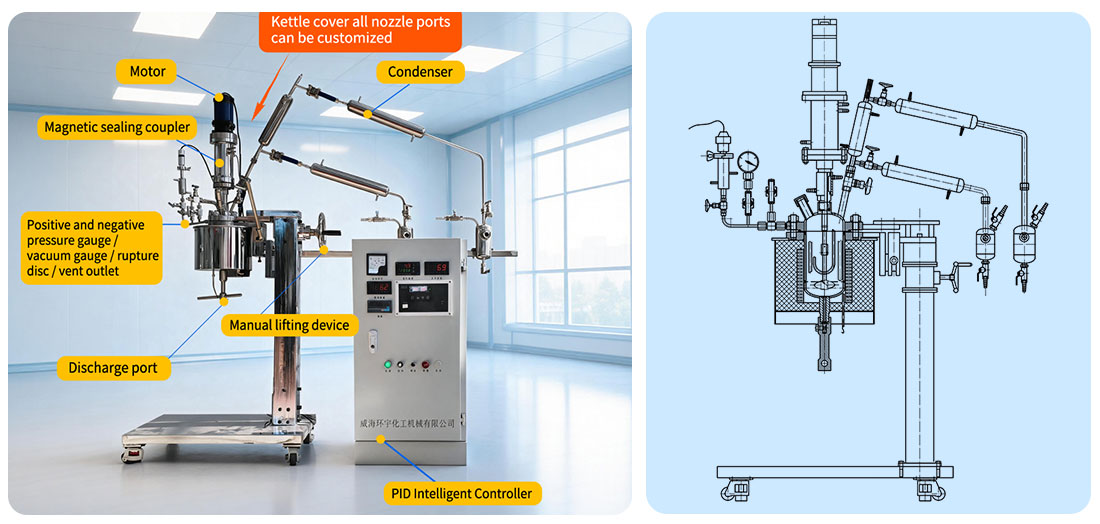

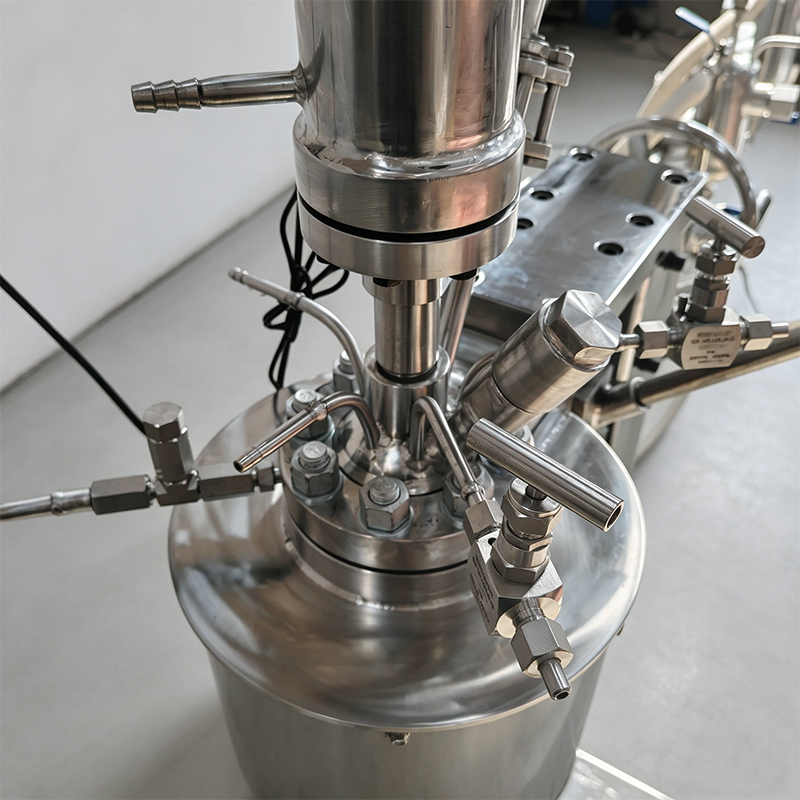

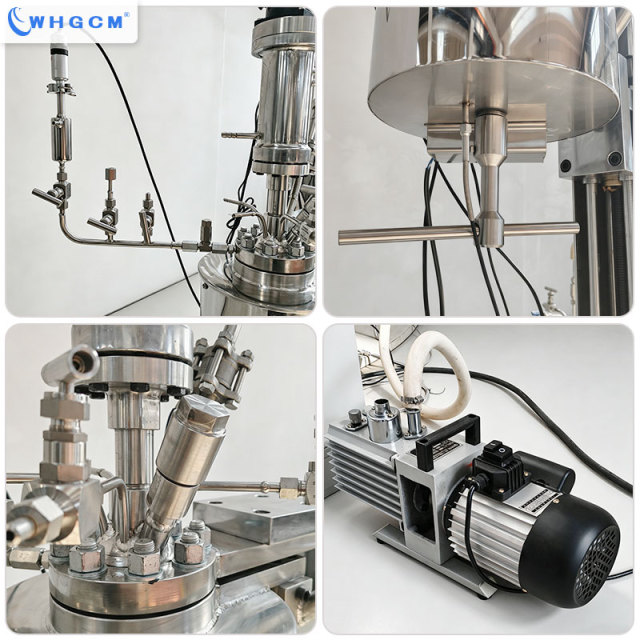

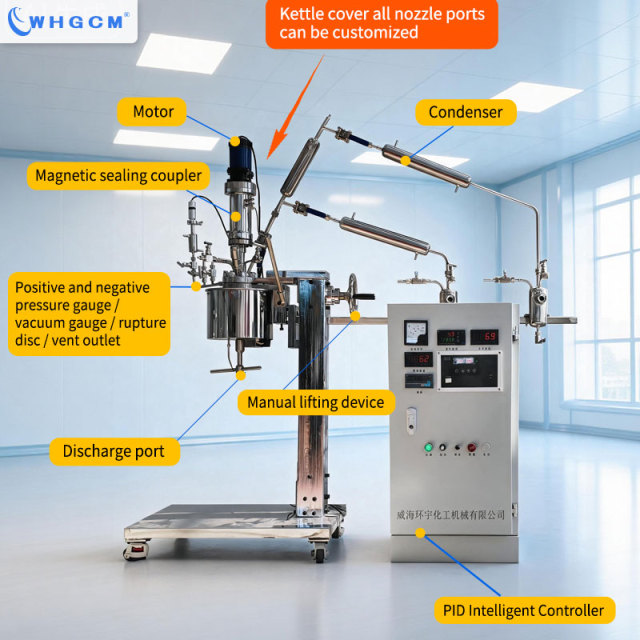

Kettle cover nozzle ports-Positive and negative pressure gauge / vacuum gauge / rupture disc / vent outlet -Jacket circulation inlet/outlet -Distillation outlet/feeding inlet, etc. Note: all nozzle ports & fitting type can be customized |
 |
 |

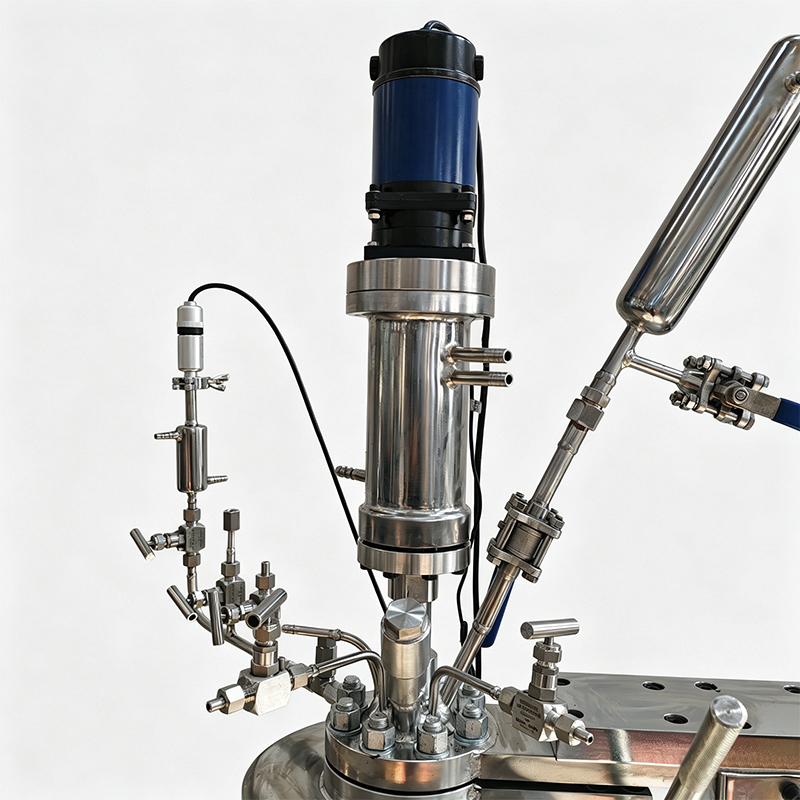

Reactor motor
This is in-line mounted stirrer motor connected with magnetic sealing coupler |

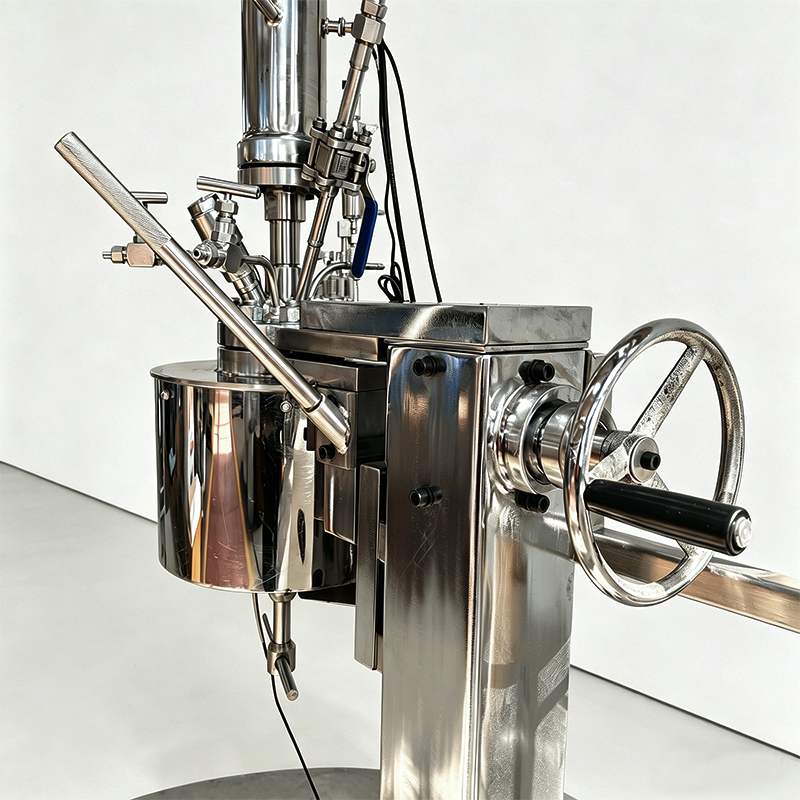

Manually lifting device |
 |
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25-50 |
| Working pressure |
Negative pressure -0.1~40 MPa
|
Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa |
| Working temperature | 0-1500℃ | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power (KW) | 0.8~1 | 1-3 | 3-6 | 4-9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Charging type | Charging from above, discharging from below or above. | |||
| Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal. | |||
| Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||
| Reactor material | Kettle inner contacting materials option: All kinds of stainless steel, such as SS304, SS316L,SS321,310S,S32205, and Titanium, Hastelloy,Zirconium,Nickel etc., as the reaction actual needed. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. |
|||
| Controller Device |
Equipped with automatic or programmed PlD or PLC to achieve:
Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control;
Flow display and control; Valve open/close control, etc.
|
|||
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
