| No. | Parameters | Kettle | ||
| 1 | Full volume（L） | 60 | ||
| 2 | Work volume（L） | 50 | ||
| 3 | Design pressure（MPa） | -0.1/1 | ||
| 4 | Work pressure（MPa） | -0.1/0.8 | ||
| 5 | Design temperature（℃） | 150 | ||
| 6 | Work temperature（℃） | 100 | ||
| 7 | Material | S31603 | ||
| 8 | Stirring speed | 200-400 | ||
| 9 | Motor power (W) | 1100 | ||
 |

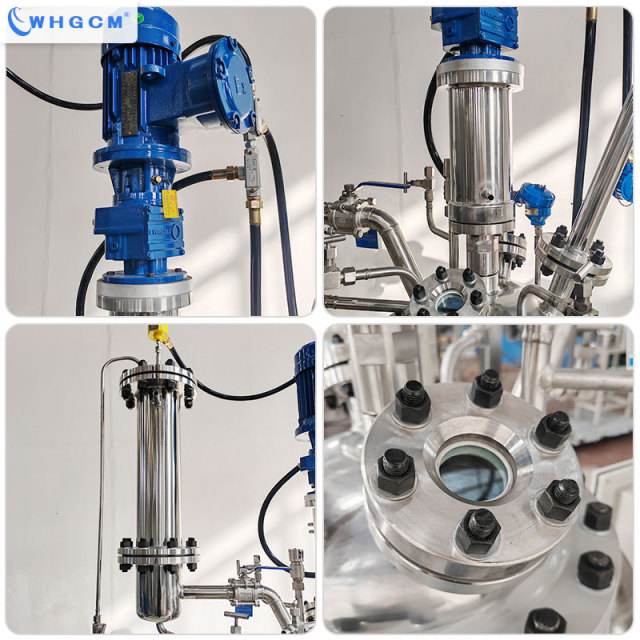

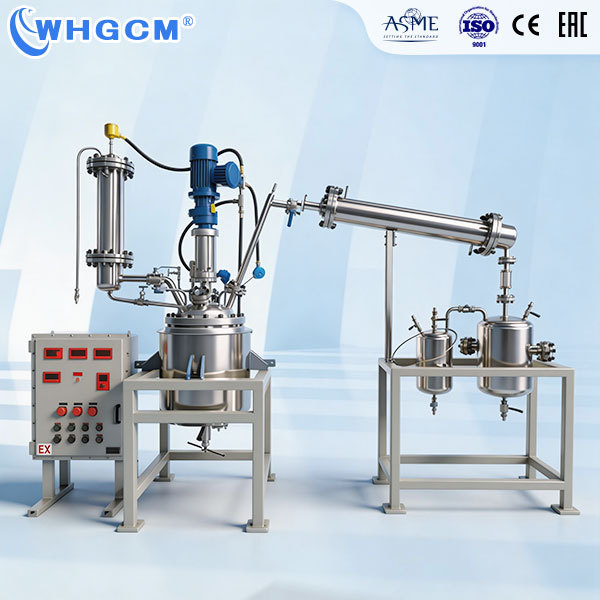

Explosion-Proof Motor Reducer
Equipped with one explosion-proof motor and Magnetic sealing coupler |
|

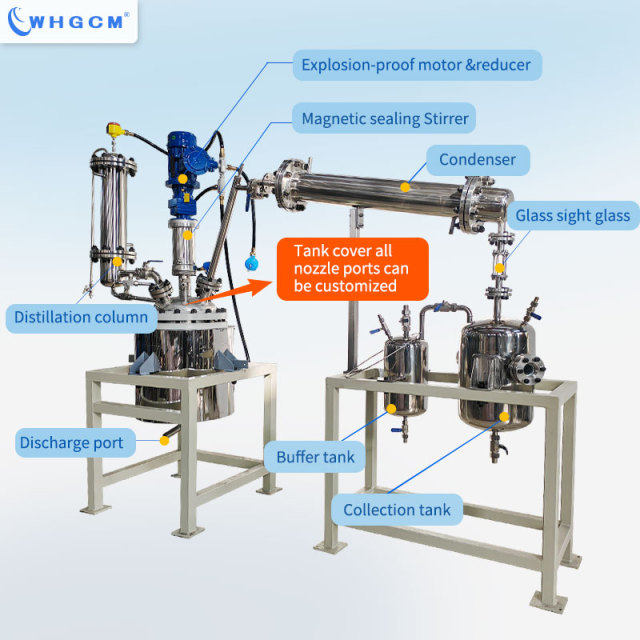

Kettle cover -Condenser port -Safety valve / Positive and negative pressure gauge port -Gas inlet/ Liquid inlet -Jacket inlet and outlet -Reflux inlet -Temperature measurement port All nozzle ports are customized as the user's requirements |
 |
 |

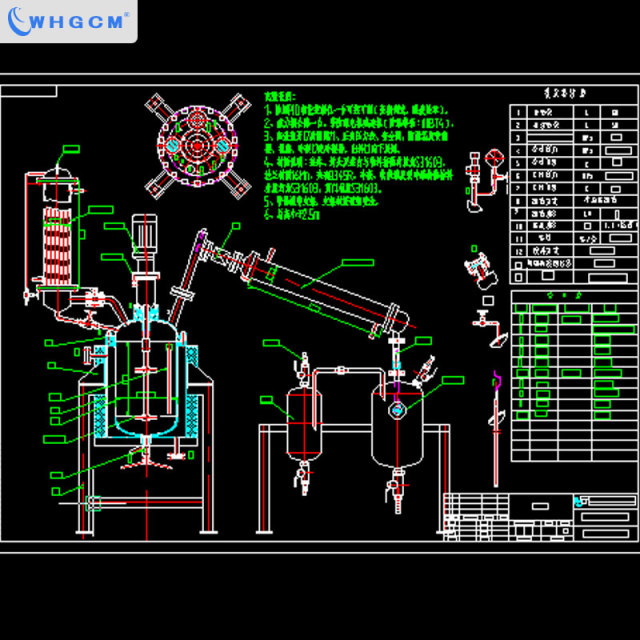

Distillation device
The distillation device is including the condensers, receiving tank and buffer tank, that similar with most of the reactor system with distillation. The only differece are the sizes of each part, which is designated by client. |
| Pilot Reactor Technical Parameters | |||||
| Working Volume (L) | 50 | 100 | 200 | 300 | 500 |
| Structure Type |
Open Style
Connect Kettle Lid and Kettle Body by Bolts and Nuts on Flange
|
||||
| Working pressure | Negative pressure -0.1~20.0 (MPa) | ||||
| Working temperature | -196-500°C | ||||
| Motor power (W) | 1.1 | 1.5 | 2.2 | 3 | 4 |
| Heating power (KW) | 9 | 15 | 18 | 18 | 36 |
| Heating type | Direct Electric Heating Fumace, Electric Heater with Thermal Oil Bath, Jacket Circulation with Thermal oil/steam/melt salt | ||||
| Discharging type | Discharging from bottom, sampling from kettle lid. | ||||
| Mixing Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. | ||||
| Stirring type | Impeller, Paddle, Anchor, Turbine, Self-suction, Frame, Screw, Belt, or as per customer's request. | ||||
| Seal type | Magnetic Seal, Mechanical Seal, Packing Seal. | ||||
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. | ||||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L,SUS321, SUS310, as well as titanium, nickel. zirconium, hastelloy.etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | ||||
| Kettle lid open port | Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc(safety valve) port, Cooling water inlet/outlet port(or Visual Glass Port and other port according to working pressure). | ||||
| Controller Device |
Equipped with auto PlD or PLC controller,Display & control Mixing Speed and Heating Temperature, self-adjustment function,temperature control accuracy +1°C;
Control other instruments, like flow meter, level meter, valves according to reaction
process.
|
||||
